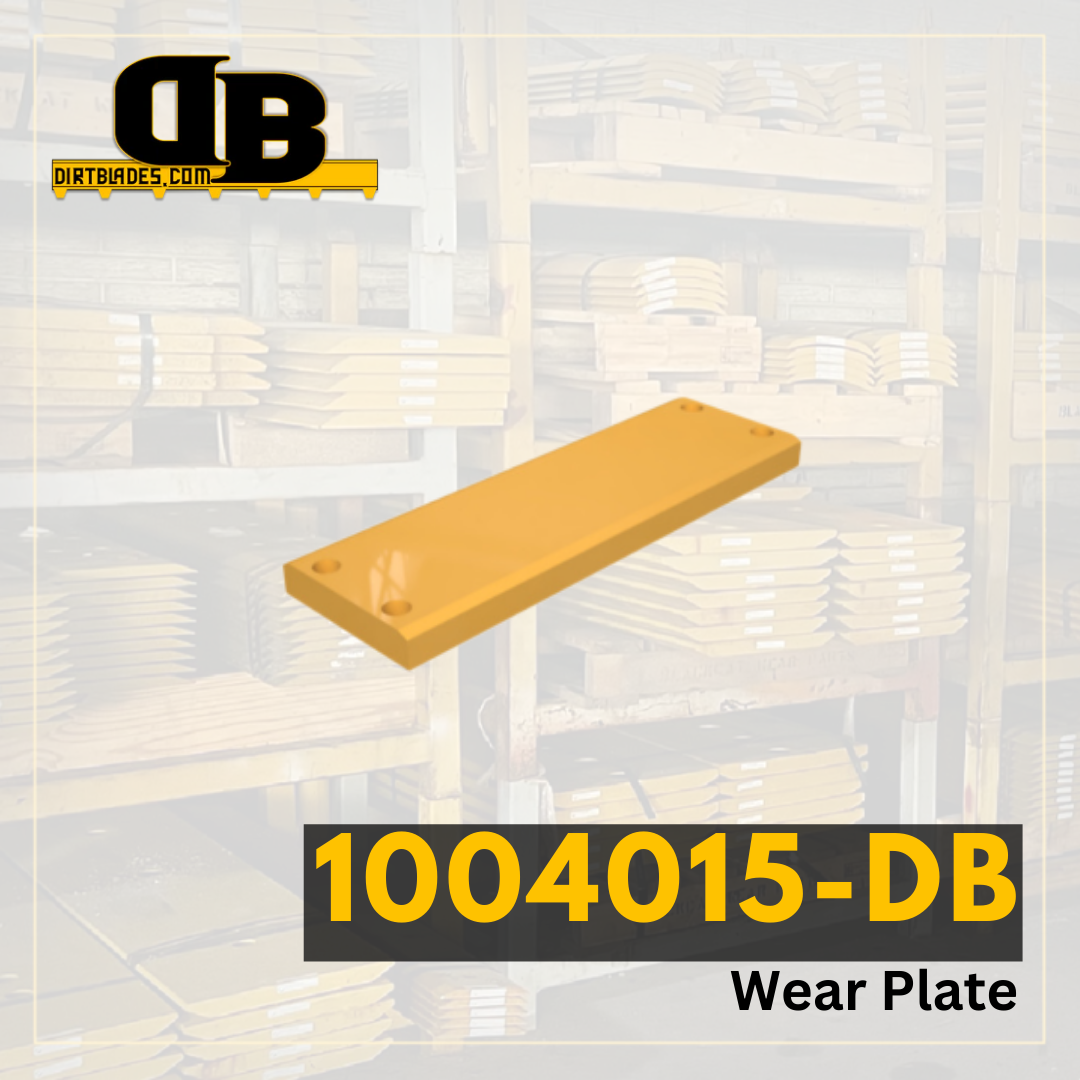

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | D155A-3 D155AX-3 |
|---|---|
| Series Number | |
| Configuration | Semi-U |
| Serial Number | 60001-UP |
| Blade Position | Cast End Bit LH |
| Blade Thickness | 1.626 |
| Blade Width | 16.28 |
| Blade Length | 25.969 |
| Hole Quantity | 7 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 1.575 |
| Second Hole Distance From First Hole in Inches | 5.394 |
| Third Hole Distance From Second Hole in Inches | 5.827 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 4 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 4 |
| Second Set of Holes First Hole Distance From End | 1.575 |
| Second Set of Holes Second Hole Distance From First Hole | 4.921 |
| Second Set of Holes Third Hole Distance From Second Hole | 4.331 |
