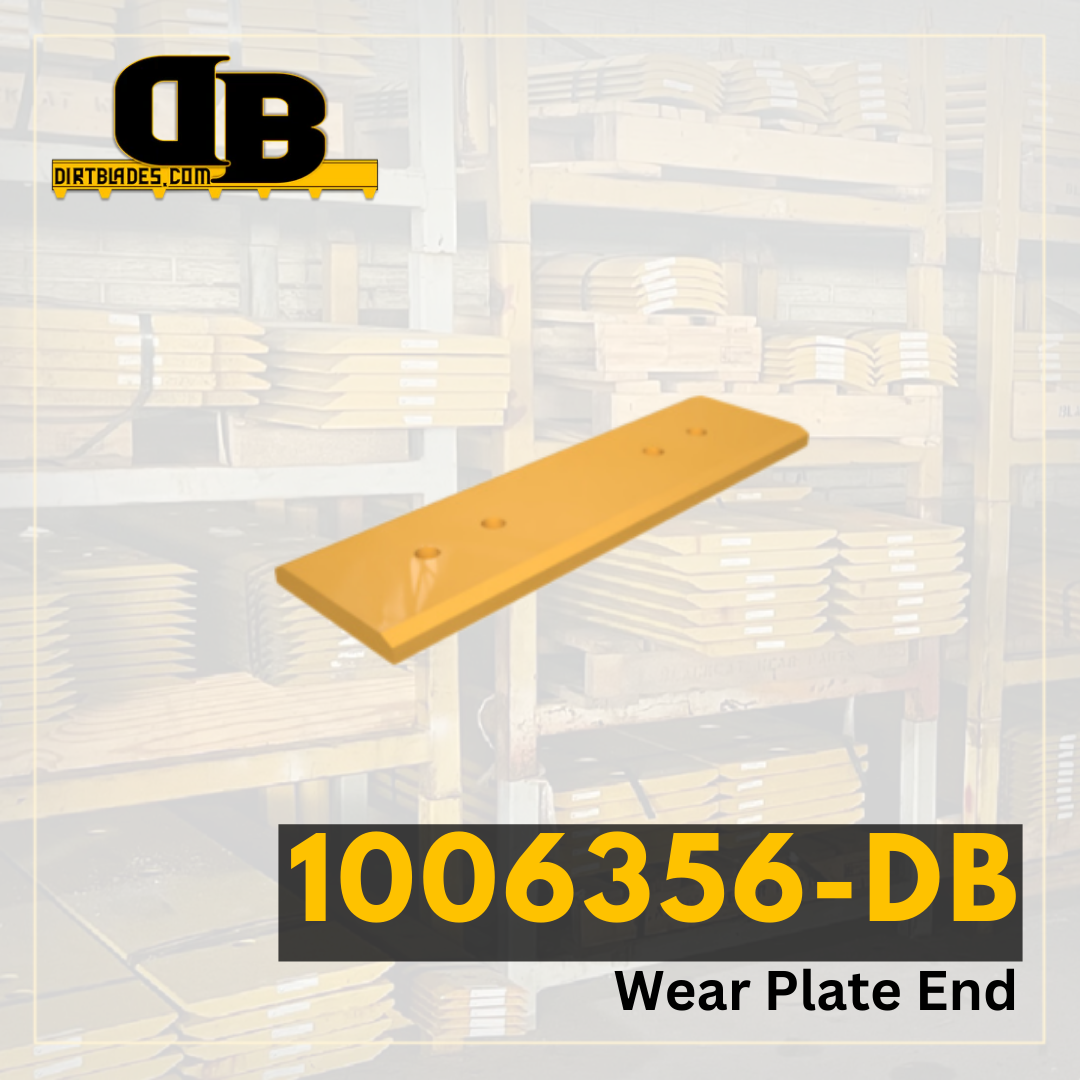

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 310 |
|---|---|
| Series Number | H |
| Configuration | Elevating Scraper |
| Serial Number | |
| Blade Position | Center |
| Blade Thickness | 1.25 |
| Blade Width | 14 |
| Blade Length | 32.875 |
| Hole Quantity | 18 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 2.687 |
| Second Hole Distance From First Hole in Inches | 5.5 |
| Third Hole Distance From Second Hole in Inches | 5.5 |
| Bolt Quantity for First Row of Holes | 6 |
| Bolt Length for First Row of Holes | 3.25 |
| Bolt Quantity for Second Row of Holes | 6 |
| Bolt Length for Second Row of Holes | 3.25 |
| Second Set of Holes First Hole Distance From End | 2.687 |
| Second Set of Holes Second Hole Distance From First Hole | 5.5 |
| Second Set of Holes Third Hole Distance From Second Hole | 5.5 |
