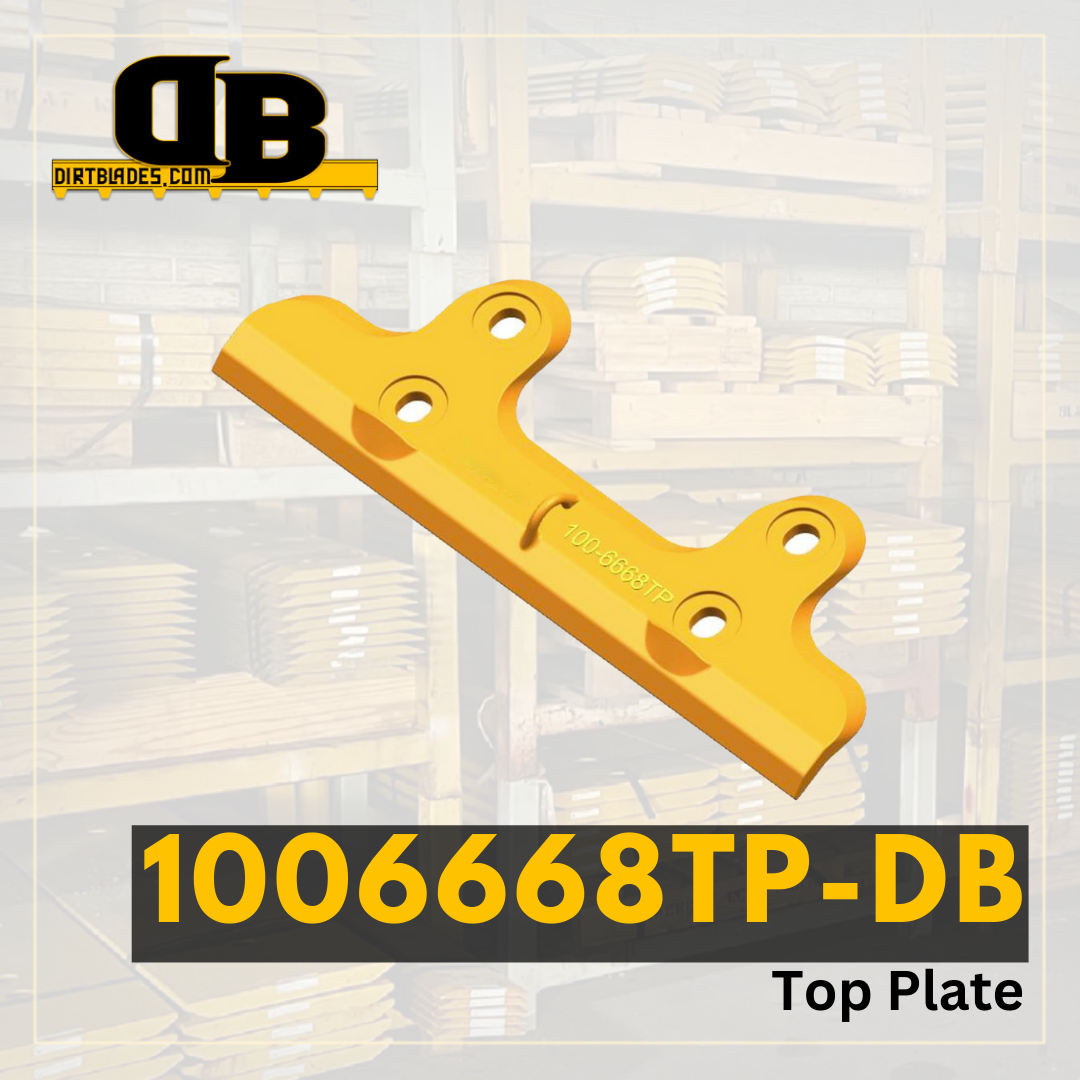

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | 962 |
|---|---|
| Series | G |
| Configuration | General Purpose |
| Serial Number | 1916974 1473681 2274373 3680522 3699044 1669065 1780057 |
| Blade Position | HD Top Plate Center |
| Blade Thickness | 1 |
| Blade Width | 12.586 |
| Blade Length | 35.375 |
| Hole Quantity | 4 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 8.781 |
| Second Hole Distance From First Hole in Inches | 17.813 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 5 |
| Bolt Quantity for Second Row of Holes | 2 |
| Bolt Length for Second Row of Holes | 5 |
| Second Set of Holes First Hole Distance From End | 8.781 |
| Second Set of Holes Second Hole Distance From First Hole | 17.813 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
