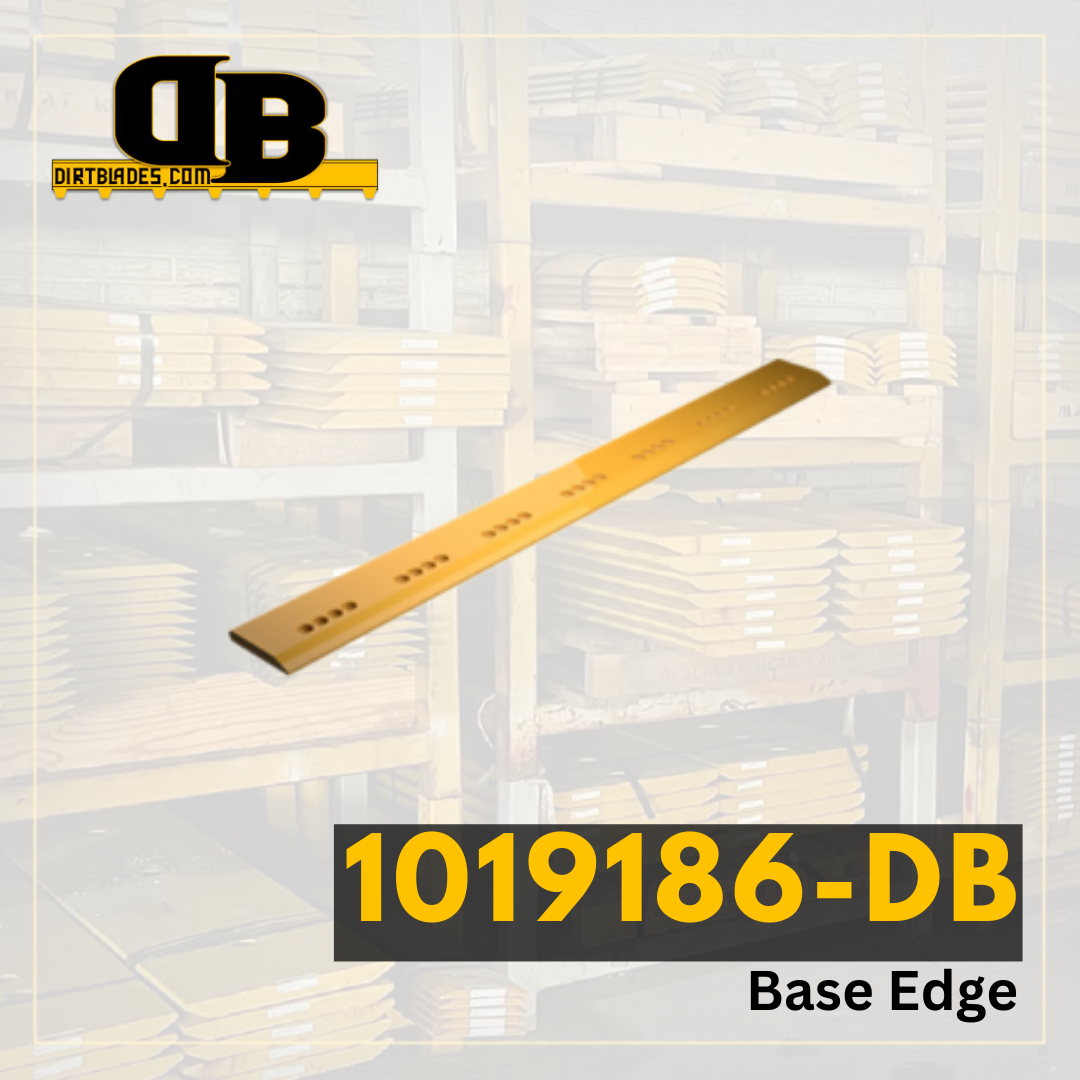

2.5" X 17.36" X 175.25" BASE EDGE W/HOLES
Model Number | 988 |
---|---|
Series Number | G H |
Configuration | General Purpose |
Serial Number | 2553620 2693521 |
Blade Position | Base Edge With Segment Holes |
Blade Thickness | 2.5 |
Blade Width | 17.36 |
Blade Length | 175.25 |
Hole Quantity | 28 |
Bolt Diameter | 1.5 |
First Hole Distance From End in Inches | 9.743 |
Second Hole Distance From First Hole in Inches | 3.54 |
Third Hole Distance From Second Hole in Inches | 3.54 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
