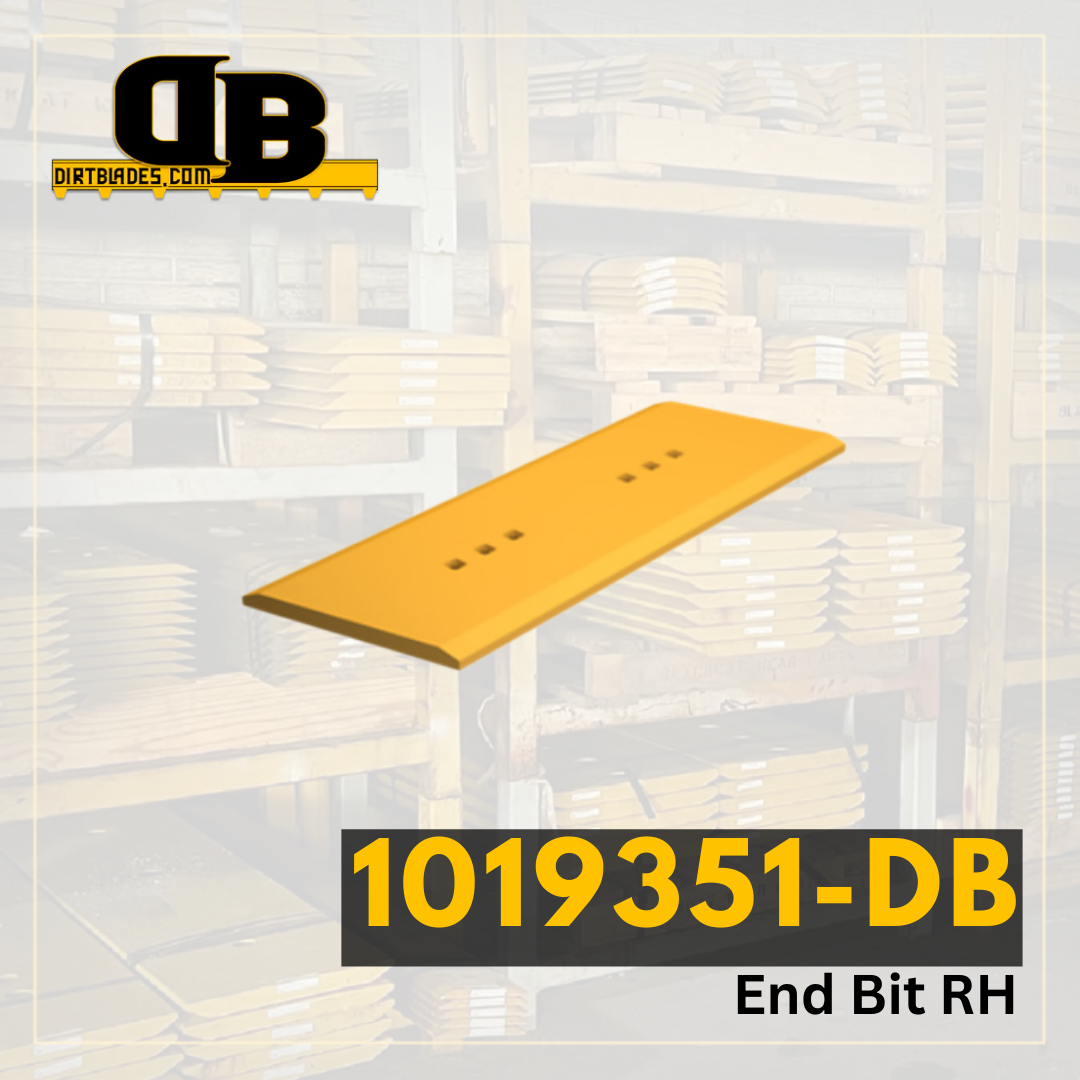

1019351 | End Bit RH

SKU: 1019351
Regular price $871.41

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number 902
Series Number
Configuration Stone Sieve
Serial Number 1486412
Blade Position Base Edge For Bolt-on Edges or Teeth
Blade Thickness 0.75
Blade Width 8
Blade Length 70.157
Hole Quantity 20
Bolt Diameter 0.688
First Hole Distance From End in Inches 2.835
Second Hole Distance From First Hole in Inches 5.374
Third Hole Distance From Second Hole in Inches 5.374
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 2.835
Second Set of Holes Second Hole Distance From First Hole 10.748
Second Set of Holes Third Hole Distance From Second Hole 10.748
