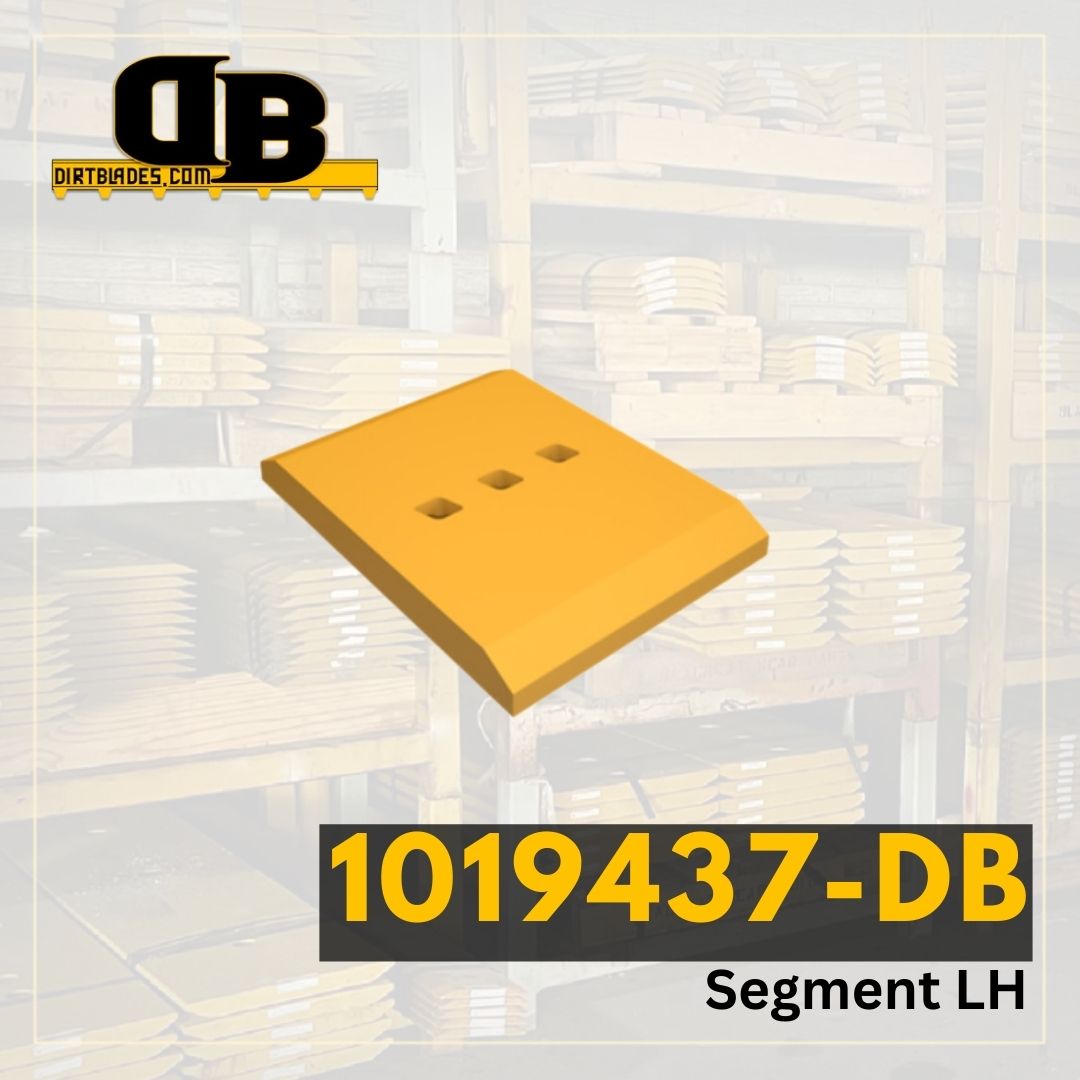

Cutting-edge segments protect your bucket's lip and deliver superior protection to your machine. They are versatile, durable, and made from steel. By choosing quality OEM Ground Engaging Tools, you can ensure that your investment is protected and your machine delivers the performance you demand.
| Model Number | 416 420 424 426 428 430 432 436 438 442 |
|---|---|
| Series Number | |
| Configuration | 94" General Purpose Bucket |
| Serial Number | 9R5202 1121931 1121933 1181971 1181984 |
| Blade Position | Center |
| Blade Thickness | 0.75 |
| Blade Width | 8 |
| Blade Length | 47.875 |
| Hole Quantity | 4 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 5.938 |
| Second Hole Distance From First Hole in Inches | 12 |
| Third Hole Distance From Second Hole in Inches | 12 |
| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 2.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
