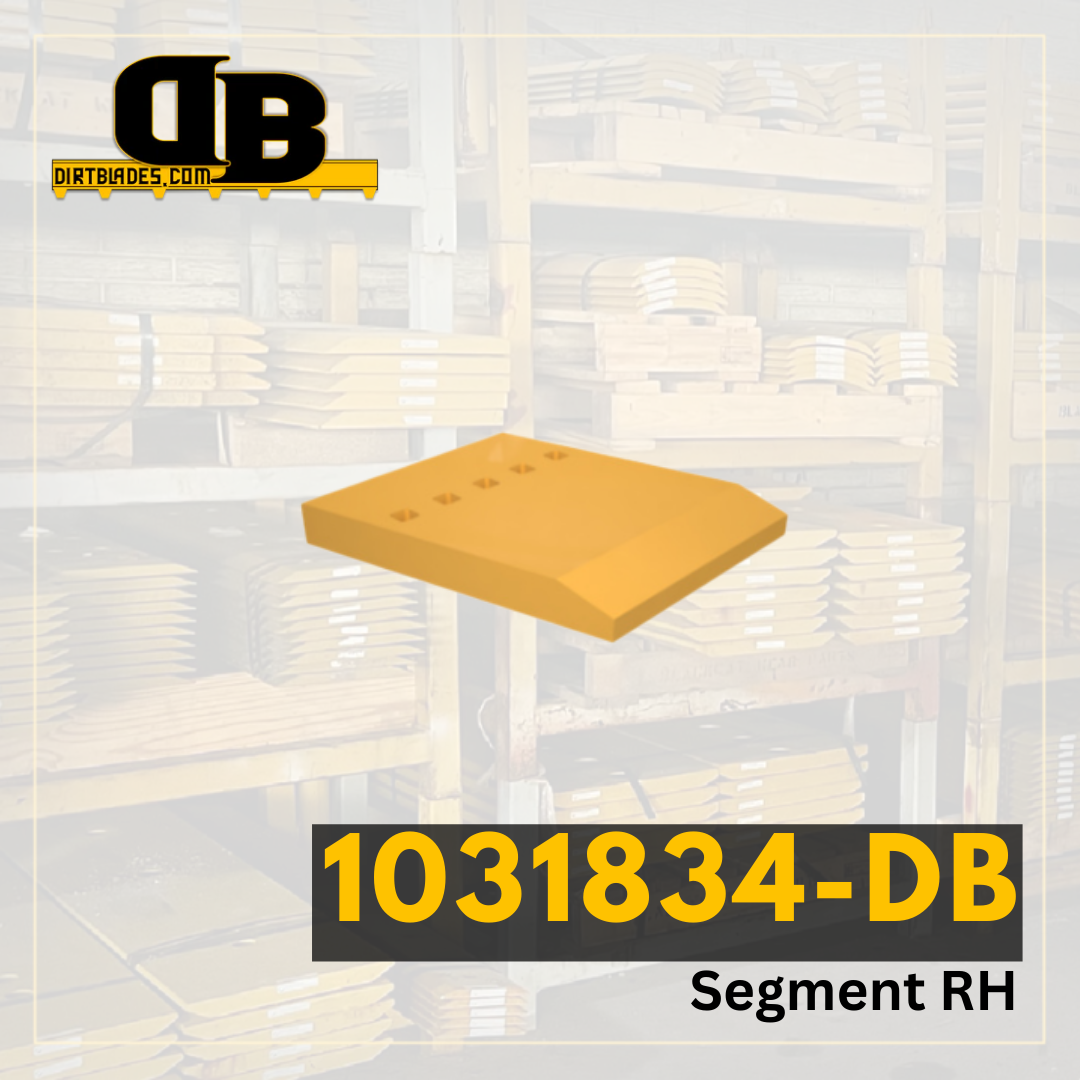

1031834-DB | Segment RH

SKU: 1031834
Regular price $957.15

Cutting-edge segments protect your bucket's lip and deliver superior protection to your machine. They are versatile, durable, and made from steel. By choosing quality OEM Ground Engaging Tools, you can ensure that your investment is protected and your machine delivers the performance you demand.

Model Number 994
Series Number - D
Configuration Spade Nose Rock
Serial Number 1022598 1022606 1020673 1020676 1022124 1029319 1029326
Blade Position Segment RH
Blade Thickness 3
Blade Width 21.5
Blade Length 23.625
Hole Quantity 5
Bolt Diameter 1.25
First Hole Distance From End in Inches 3.688
Second Hole Distance From First Hole in Inches 3.375
Third Hole Distance From Second Hole in Inches 3.375
Bolt Quantity for First Row of Holes 5
Bolt Length for First Row of Holes 4.125
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
