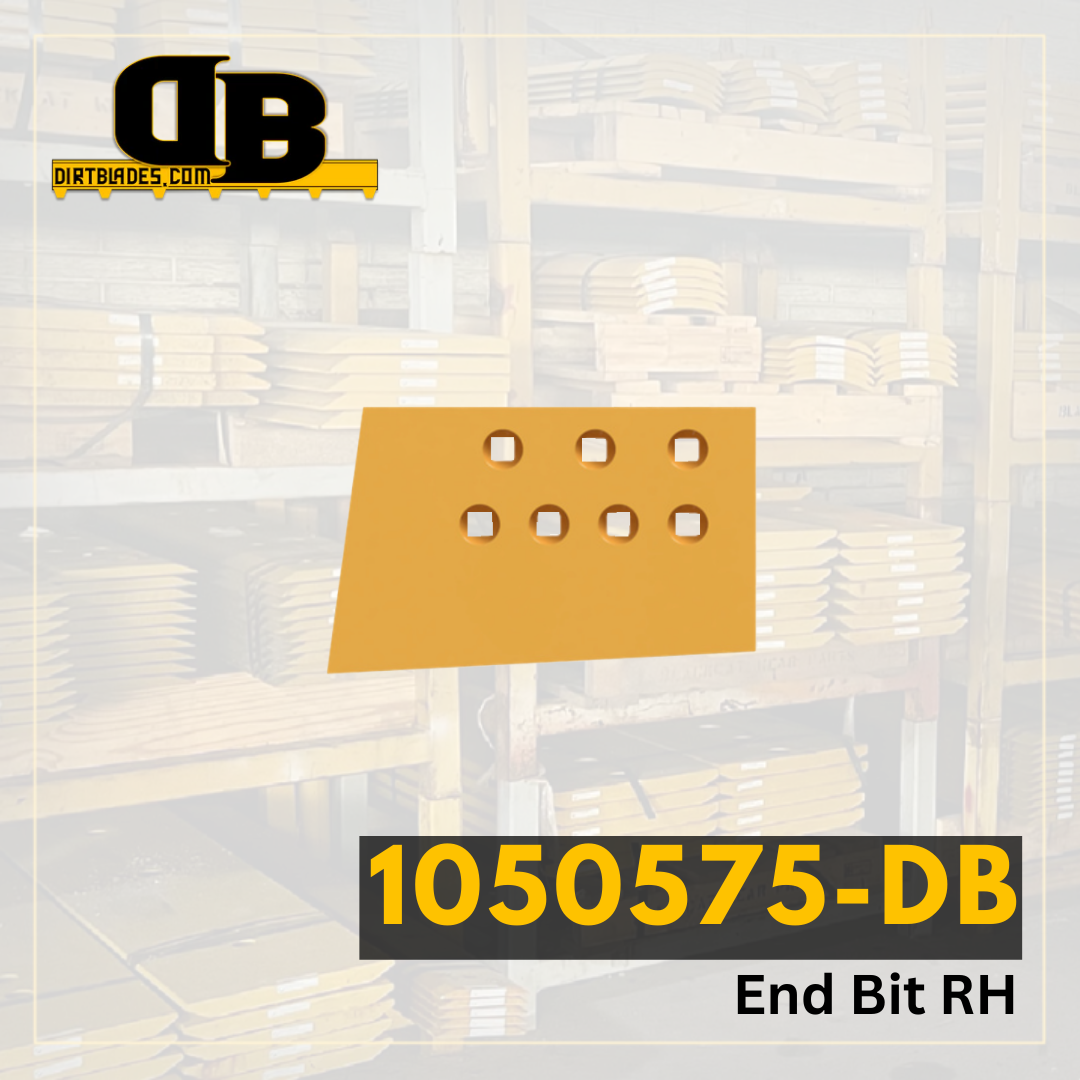

1 3/8" X 10 1/2" X 18" RH END BIT LEVEL
Model Number | 950 |
---|---|
Series Number | K |
Configuration | Angle Straight |
Serial Number | |
Blade Position | 11" Level Cut End Bit RH |
Blade Thickness | 1.375 |
Blade Width | 10.5 |
Blade Length | 18 |
Hole Quantity | 7 |
Bolt Diameter | 0.875 |
First Hole Distance From End in Inches | 2.875 |
Second Hole Distance From First Hole in Inches | 4 |
Third Hole Distance From Second Hole in Inches | 4 |
Bolt Quantity for First Row of Holes | 3 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 4 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 2.875 |
Second Set of Holes Second Hole Distance From First Hole | 3 |
Second Set of Holes Third Hole Distance From Second Hole | 3 |
