1061095-DB

SKU: 1061095-DB
Regular price $564.27

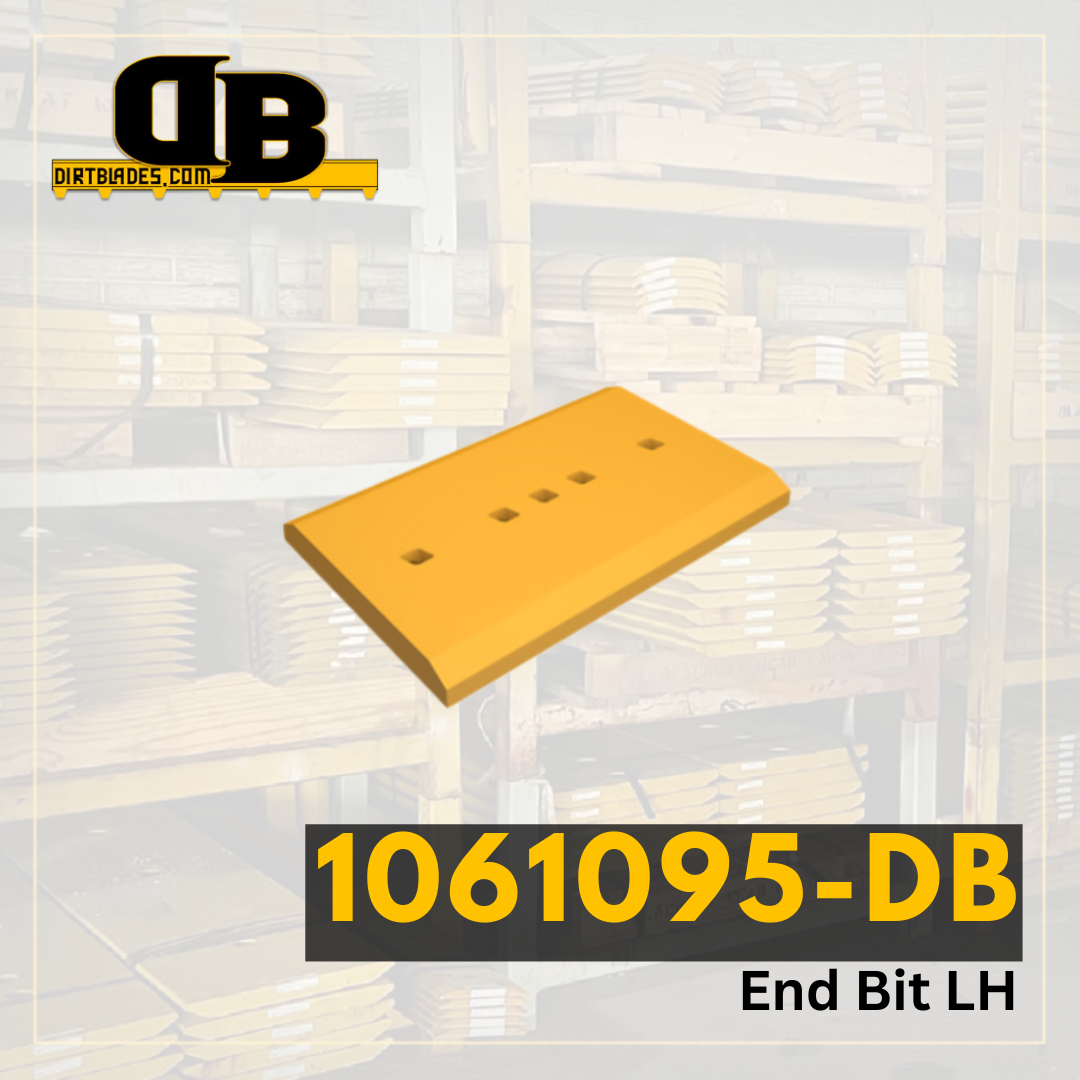

1 3/4" X 19" X 33 7/8" LH HD END BIT

Model Number 980
Series Number G H
Configuration Spade Nose Rock
Serial Number 1875326 1470312 2345911
Blade Position HD End LH
Blade Thickness 1.75
Blade Width 19
Blade Length 33.875
Hole Quantity 5
Bolt Diameter 1.25
First Hole Distance From End in Inches 6.875
Second Hole Distance From First Hole in Inches 6.713
Third Hole Distance From Second Hole in Inches 3.35
Bolt Quantity for First Row of Holes 5
Bolt Length for First Row of Holes 3.75
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
