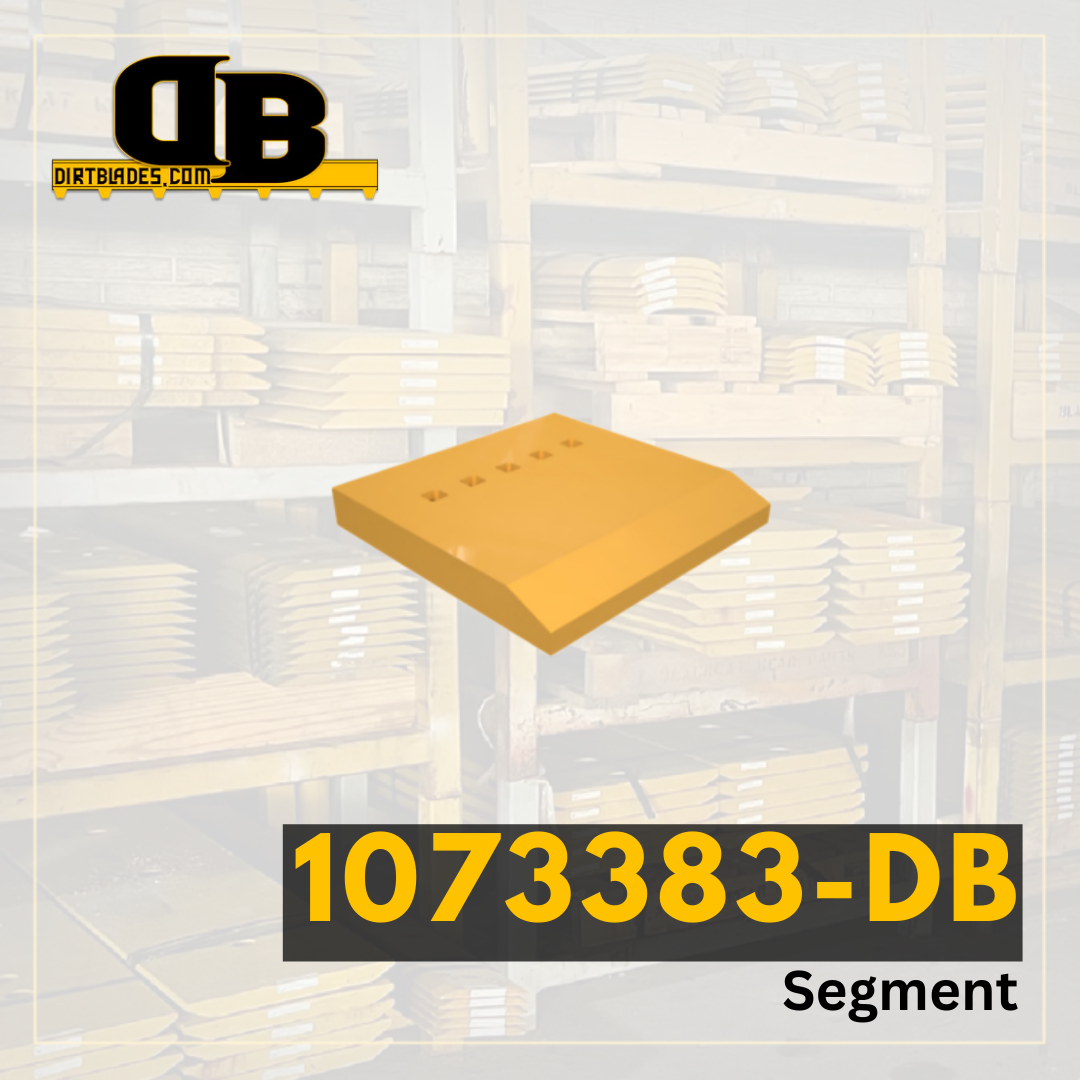

3" X 21.457" X 21.89" WEAR PLATE
Model Number | 994 |
---|---|
Series Number | - D |
Configuration | Spade Nose Rock |
Serial Number | 1134105 1134106 1134103 1117973 1117974 1134104 1134107 1134108 |
Blade Position | Base Edge Wear Plate |
Blade Thickness | 3 |
Blade Width | 21.457 |
Blade Length | 21.89 |
Hole Quantity | 5 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 4.252 |
Second Hole Distance From First Hole in Inches | 3.346 |
Third Hole Distance From Second Hole in Inches | 3.346 |
Bolt Quantity for First Row of Holes | 3 |
Bolt Length for First Row of Holes | 4.125 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
