1073492-DB

SKU: 1073492-DB
Regular price $267.65

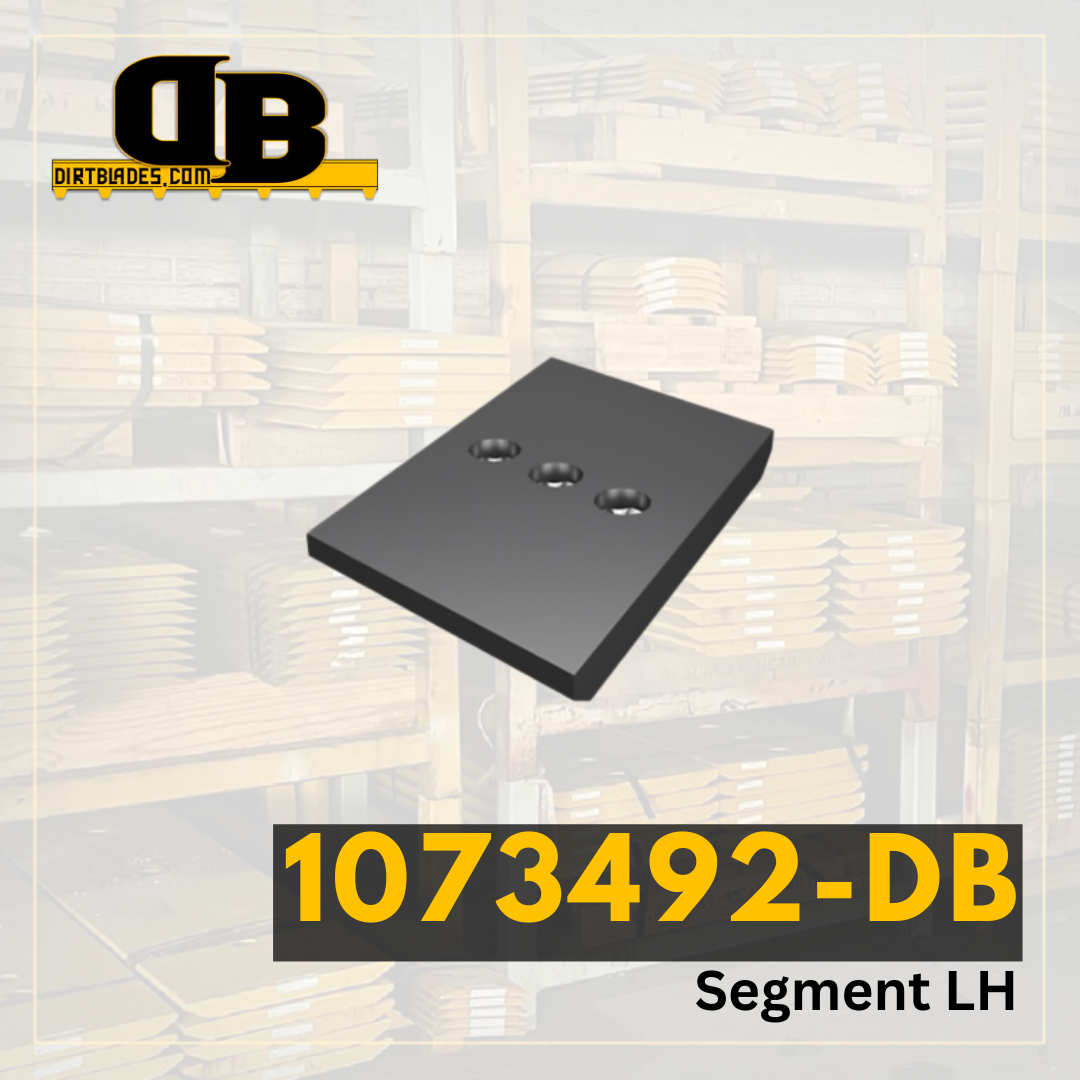

1.75 X 19 X 17.75 HD LH SEGMENT

Model Number 980
Series Number F G H
Configuration Spade Nose Rock
Serial Number 1352959 1369033 1133254 1851569 1875298 1875322
Blade Position HD Segment LH
Blade Thickness 1.75
Blade Width 19
Blade Length 17.75
Hole Quantity 3
Bolt Diameter 1.25
First Hole Distance From End in Inches 5.525
Second Hole Distance From First Hole in Inches 3.35
Third Hole Distance From Second Hole in Inches 3.35
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 3.75
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
