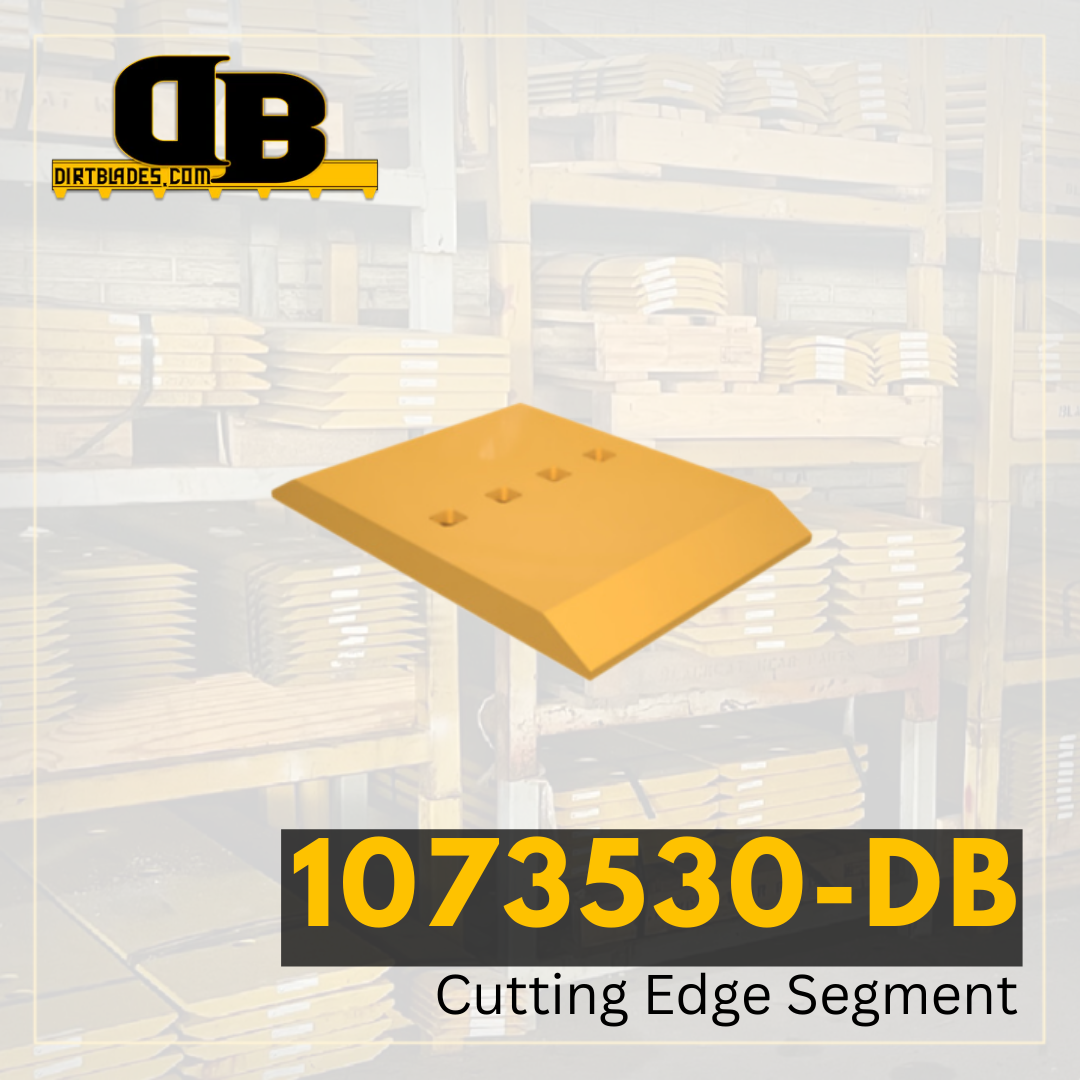

2" X 23 1/4" X 16.188" HD SEGMENT
| Model Number | 988 |
|---|---|
| Series Number | G H |
| Configuration | General Purpose |
| Serial Number | 2553620 2693521 |
| Blade Position | HD Segment |
| Blade Thickness | 2 |
| Blade Width | 23.25 |
| Blade Length | 16.188 |
| Hole Quantity | 4 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 2.75 |
| Second Hole Distance From First Hole in Inches | 3.563 |
| Third Hole Distance From Second Hole in Inches | 3.563 |
| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
