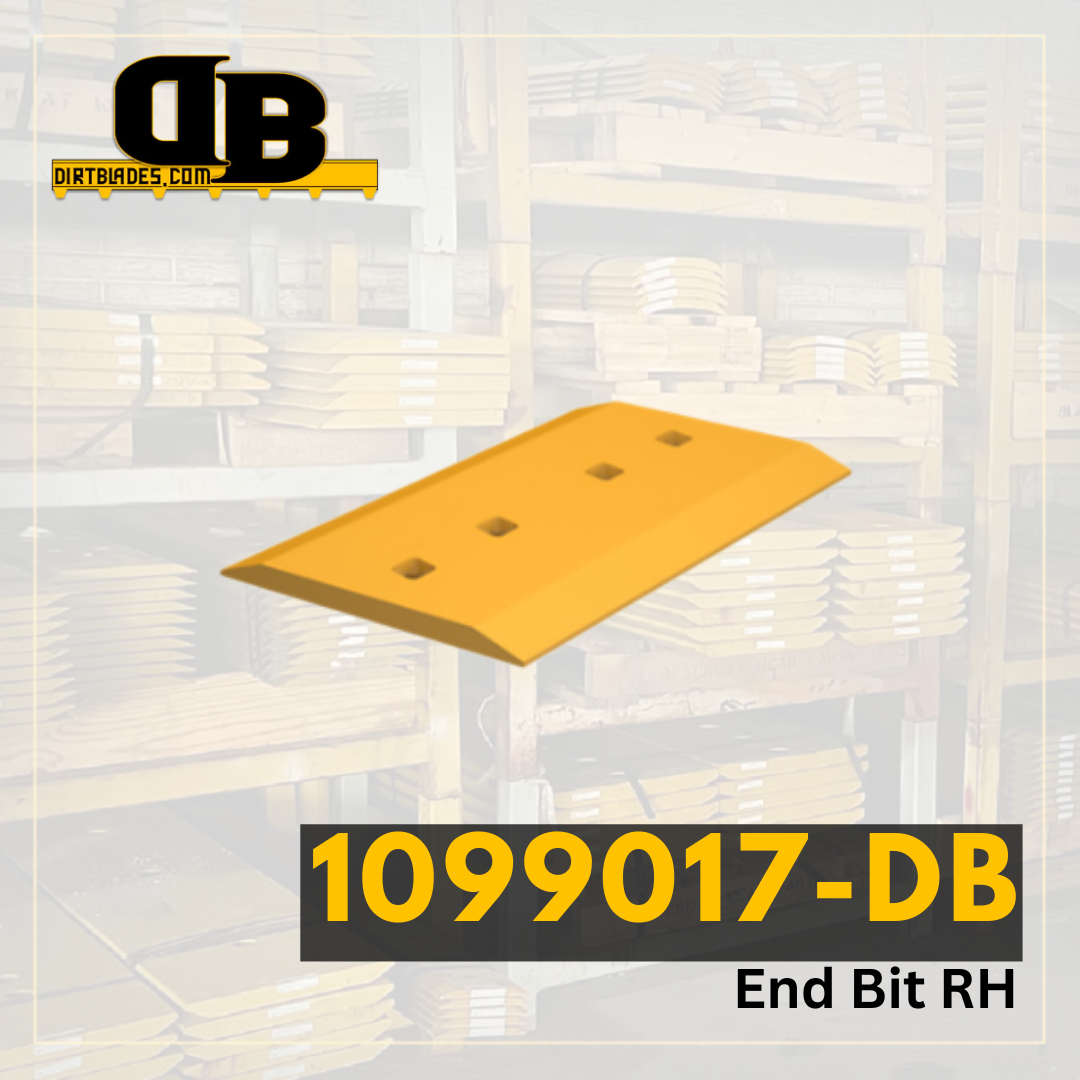

1.18 X 14.173 X 26.114 RH END BIT
Model Number | 950 |
---|---|
Series Number | G H |
Configuration | Spade Nose Rock |
Serial Number | 1419400 |
Blade Position | End RH |
Blade Thickness | 1.18 |
Blade Width | 14.173 |
Blade Length | 26.114 |
Hole Quantity | 4 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 4.567 |
Second Hole Distance From First Hole in Inches | 4.921 |
Third Hole Distance From Second Hole in Inches | 7.142 |
Bolt Quantity for First Row of Holes | 4 |
Bolt Length for First Row of Holes | 3.25 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
