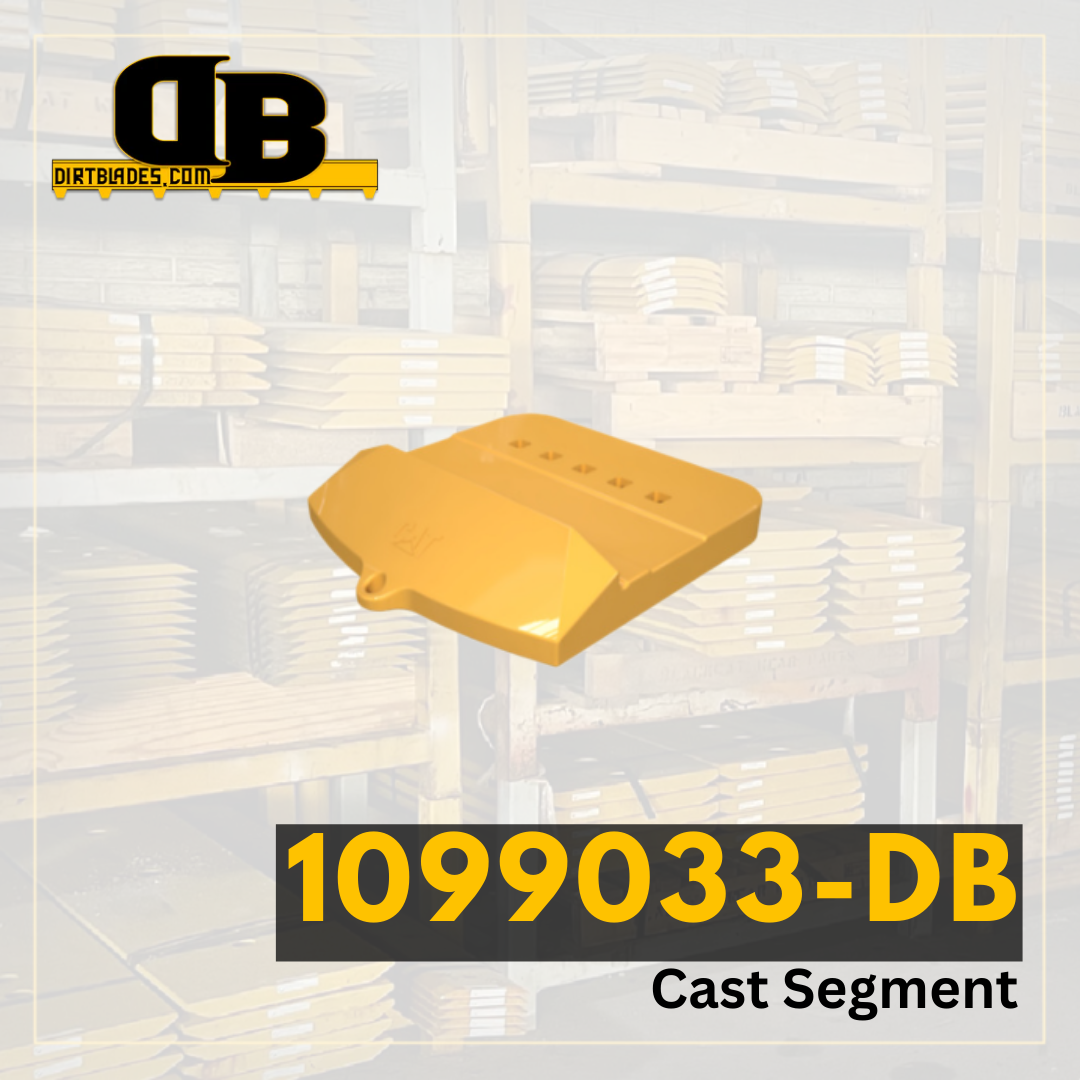

1099033-DB | Cast Segment

SKU: 1099033
Regular price $1,710.04

OEM quality Cast Segments are specially designed to protect your bucket lip. The cast segments provide additional protection to the bucket base edge, covering more area between adapters and enhancing load-ability.

Model Number 993
Series Number K
Configuration Heavy Duty Rock
Serial Number 3165901 3194131
Blade Position HA Segment Cast
Blade Thickness 3.5
Blade Width 26.75
Blade Length 24.488
Hole Quantity 5
Bolt Diameter 1.25
First Hole Distance From End in Inches 5.551
Second Hole Distance From First Hole in Inches 3.346
Third Hole Distance From Second Hole in Inches 3.346
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
