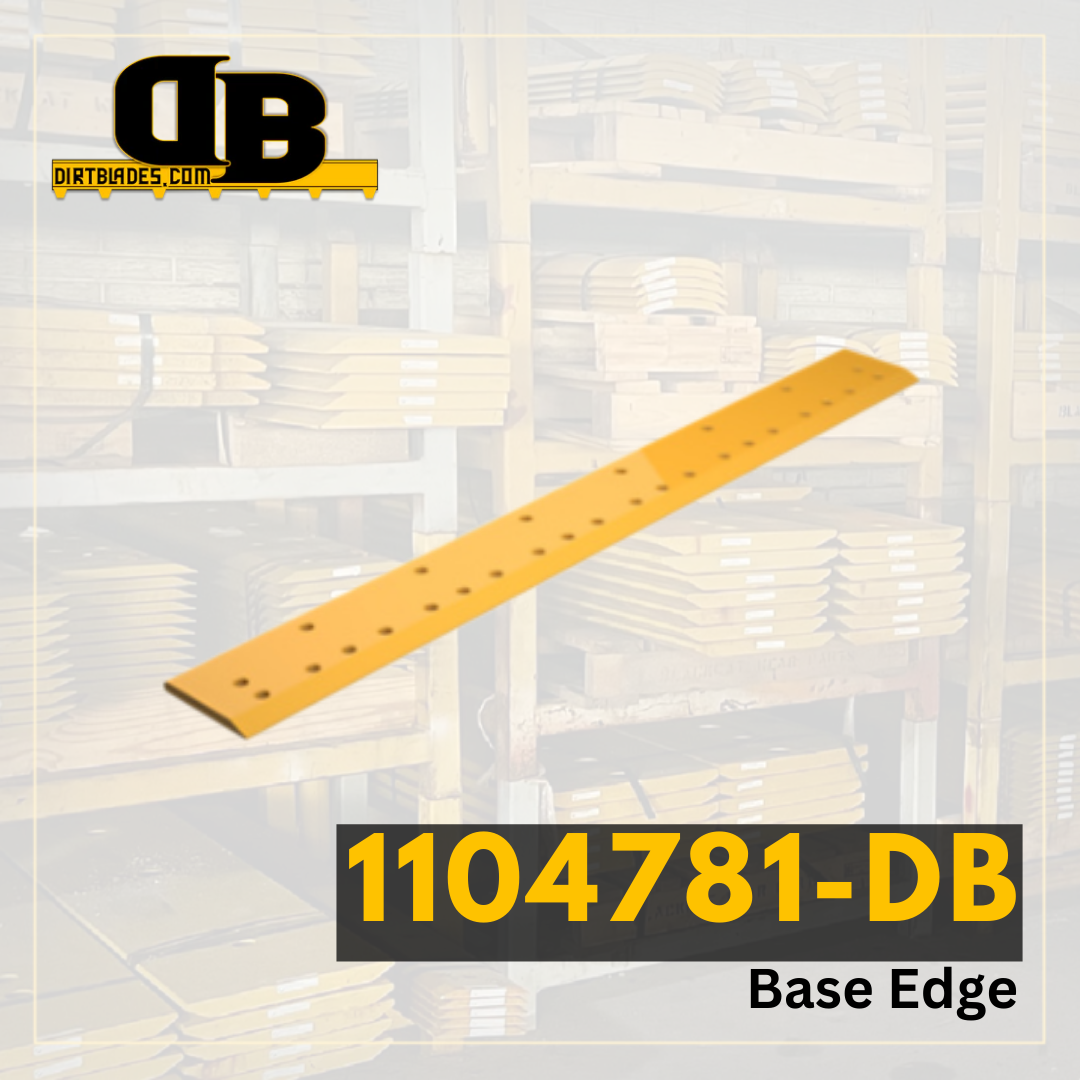

1" X 9.646" X 95.94" BASE EDGE
Model Number | 938 |
---|---|
Series Number | F |
Configuration | Corner Guard System |
Serial Number | 1177992 |
Blade Position | Base Edge With Segment Holes |
Blade Thickness | 1 |
Blade Width | 9.646 |
Blade Length | 95.94 |
Hole Quantity | 28 |
Bolt Diameter | 1.063 |
First Hole Distance From End in Inches | 3.69 |
Second Hole Distance From First Hole in Inches | 6.1 |
Third Hole Distance From Second Hole in Inches | 3.65 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 3.69 |
Second Set of Holes Second Hole Distance From First Hole | 88.56 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
