Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
| Model Number | L60 |
|---|---|
| Series | E |
| Configuration | General Purpose |
| Serial Number | 80924 80925 |
| Blade Position | End |

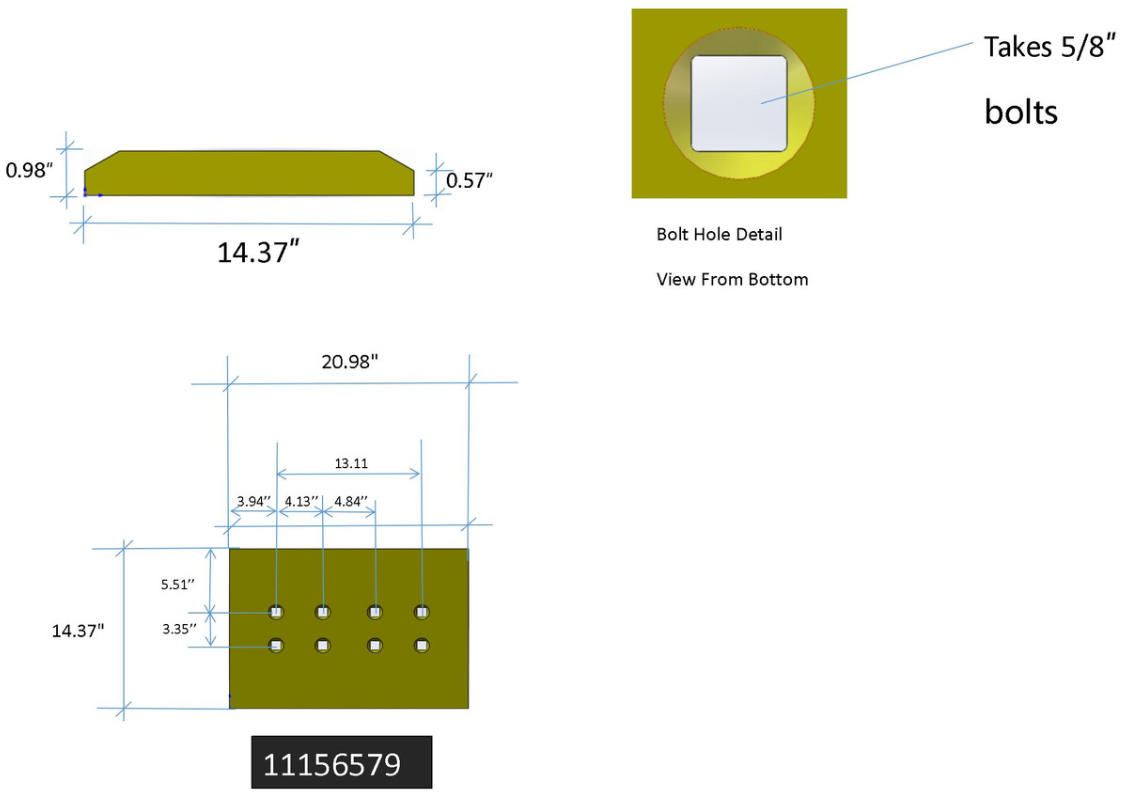

| Blade Thickness | 0.75 |
| Blade Width | 14.449 |
| Blade Length | 21.031 |
| Hole Quantity | 8 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 3.89 |
| Second Hole Distance From First Hole in Inches | 4.188 |
| Third Hole Distance From Second Hole in Inches | 4.875 |

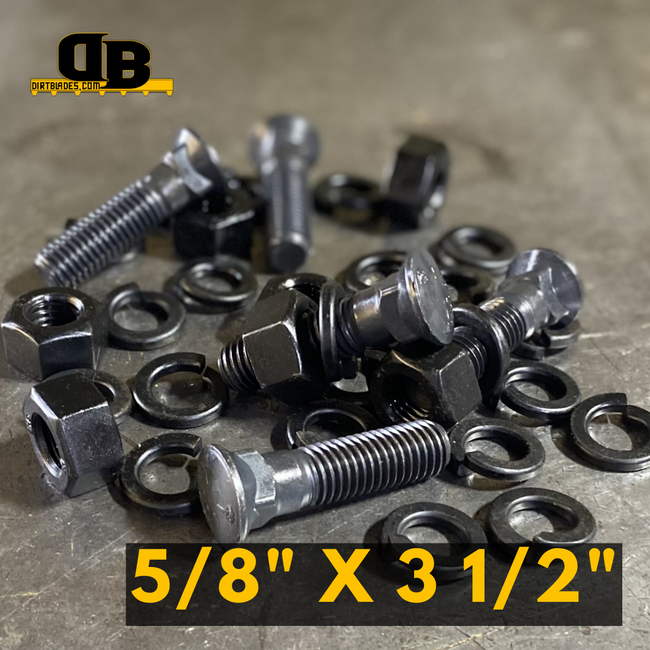

| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 2.5 |
| Bolt Quantity for Second Row of Holes | 2 |
| Bolt Length for Second Row of Holes | 2.5 |
| Second Set of Holes First Hole Distance From End | 3.89 |
| Second Set of Holes Second Hole Distance From First Hole | 4.189 |
| Second Set of Holes Third Hole Distance From Second Hole | 4.874 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
