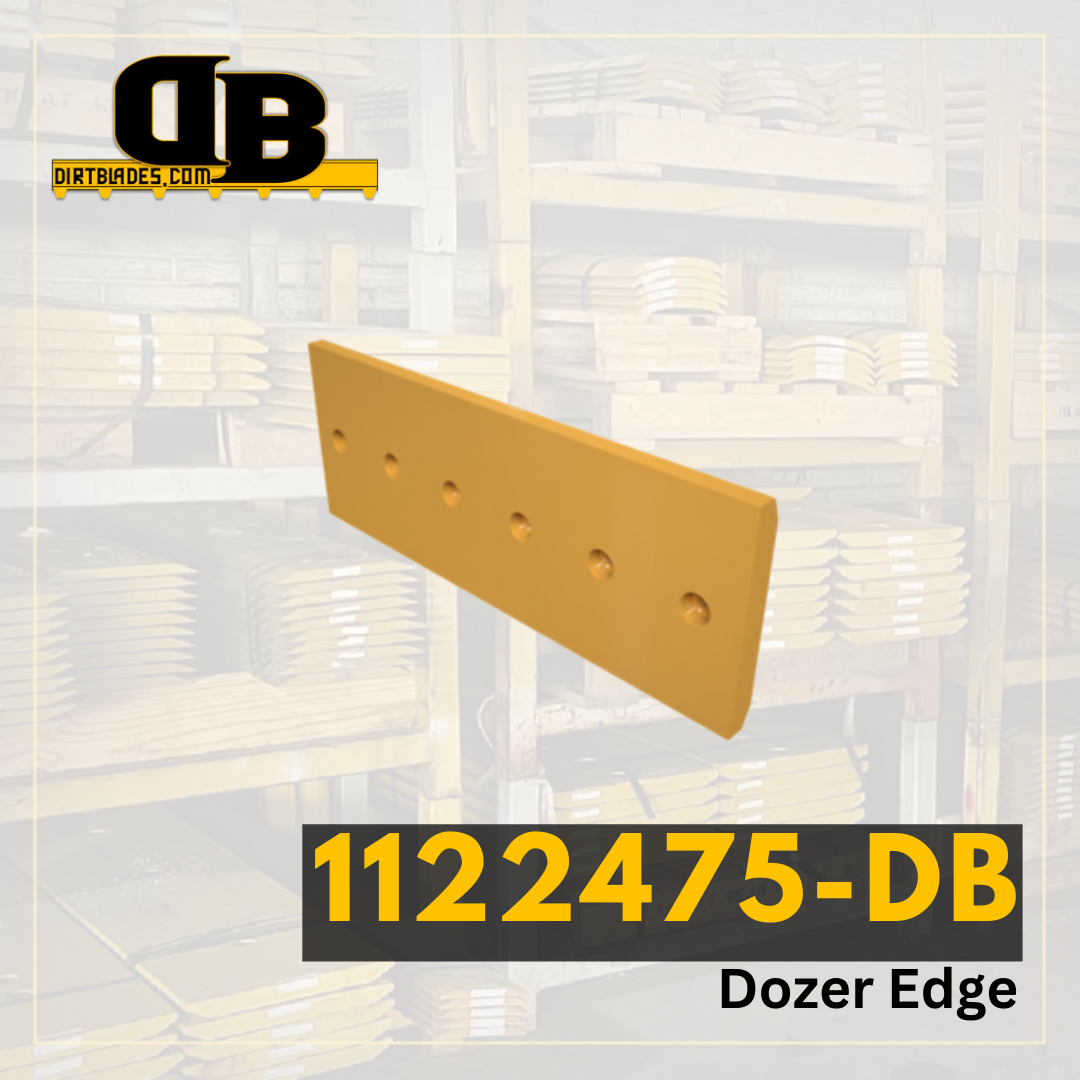

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 902 |
|---|---|
| Series Number | |
| Configuration | Light Material, Side Dump, Grapple |
| Serial Number | 1499261 1417263 1843268 |
| Blade Position | Bolt On (Plow Bolts) |
| Blade Thickness | 0.625 |
| Blade Width | 6.5 |
| Blade Length | 74.409 |
| Hole Quantity | 13 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 2.95 |
| Second Hole Distance From First Hole in Inches | 5.71 |
| Third Hole Distance From Second Hole in Inches | 5.71 |
| Bolt Quantity for First Row of Holes | 13 |
| Bolt Length for First Row of Holes | 2.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
