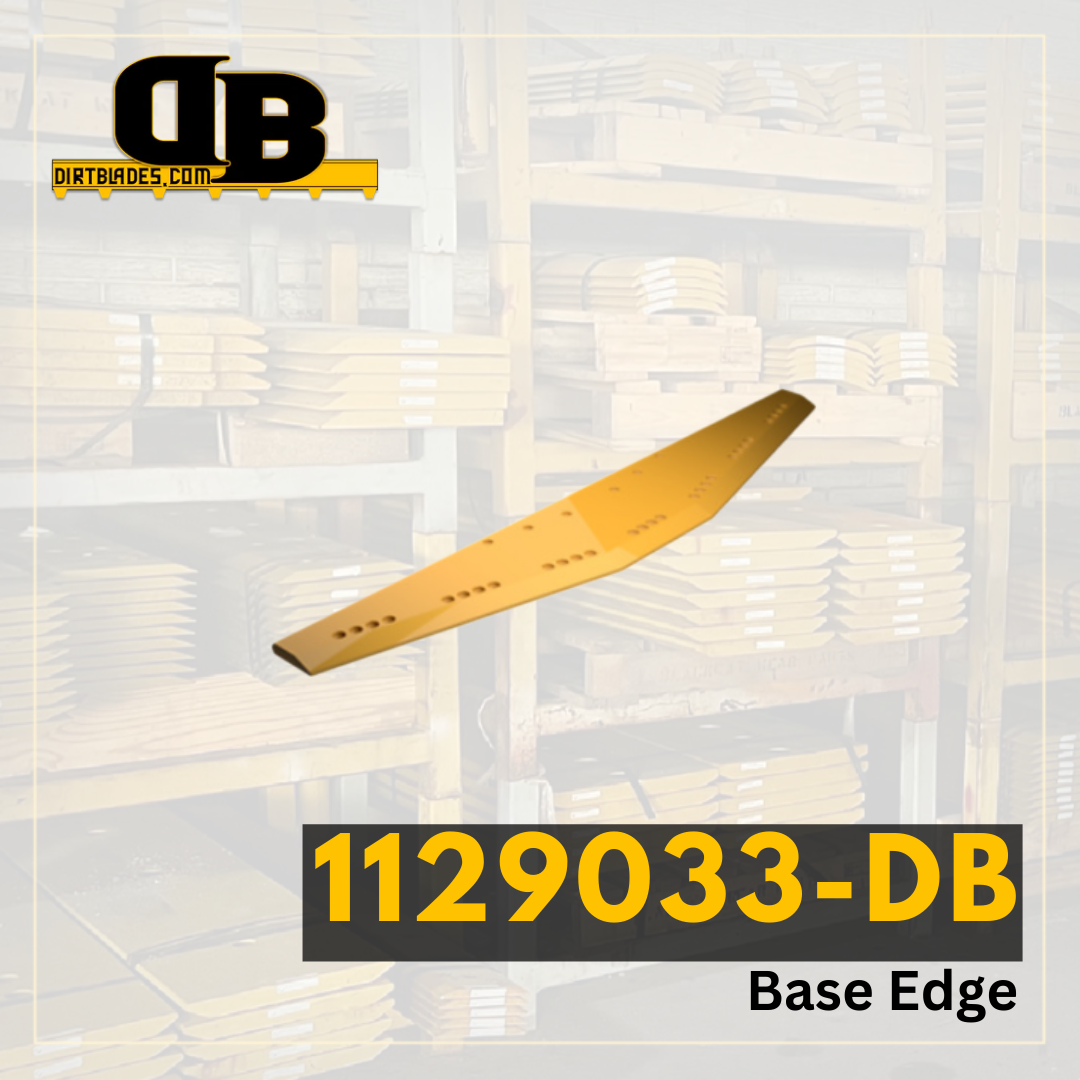

2.75" X 32.52" X 189.93 BASE EDGE
Model Number | 992 |
---|---|
Series Number | G |
Configuration | Spade Nose Rock |
Serial Number | 2411749 2356797 1535620 1124195 1124202 1767360 2356473 2436600 |
Blade Position | Spade Nose Base Edge |
Blade Thickness | 2.75 |
Blade Width | 32.52 |
Blade Length | 189.921 |
Hole Quantity | 34 |
Bolt Diameter | 1.5 |
First Hole Distance From End in Inches | 11.38 |
Second Hole Distance From First Hole in Inches | 3.94 |
Third Hole Distance From Second Hole in Inches | 3.94 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 62.064 |
Second Set of Holes Second Hole Distance From First Hole | 11.82 |
Second Set of Holes Third Hole Distance From Second Hole | 11.82 |
