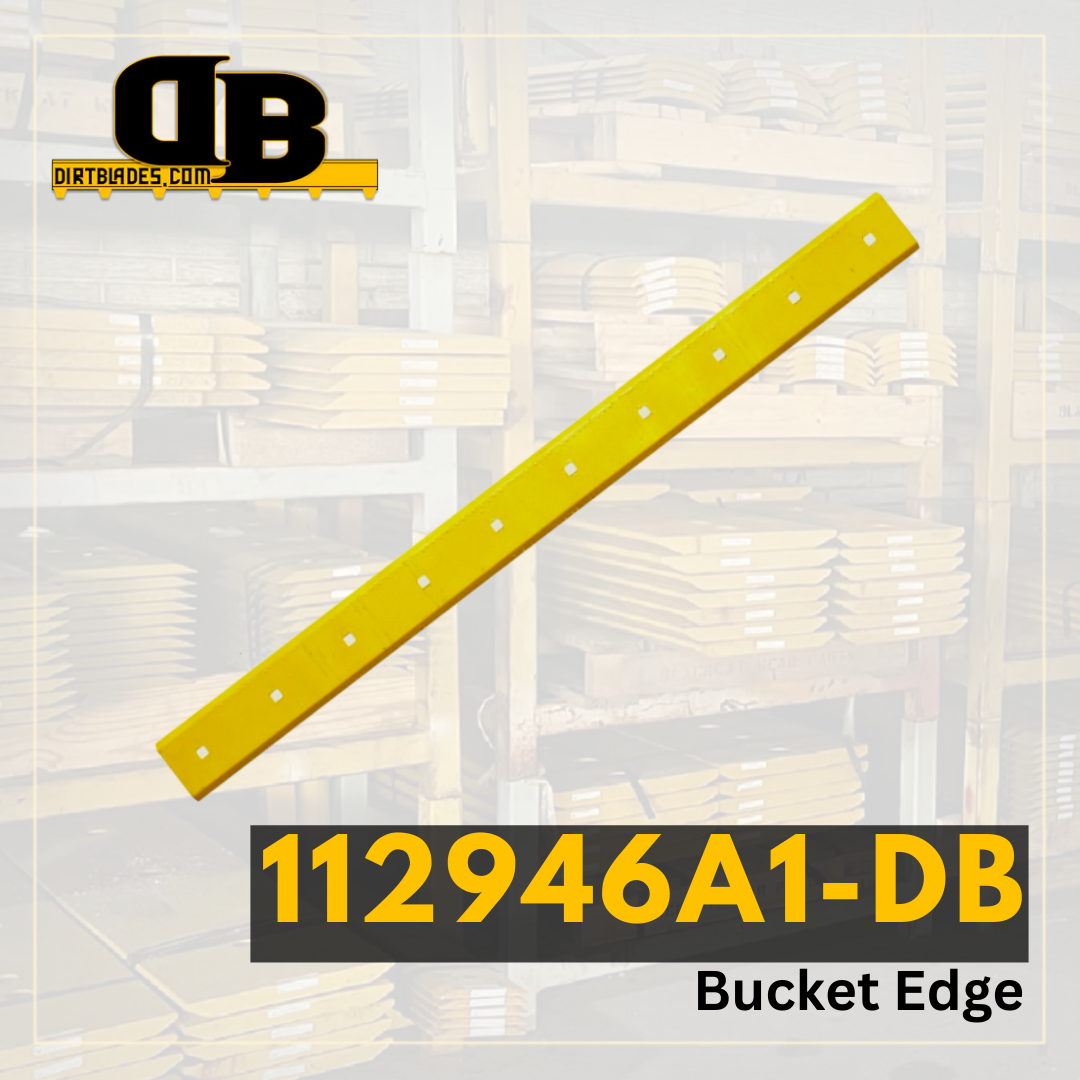

Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
| Model Number | 480 580 590 680 690 |
|---|---|
| Series | |
| Configuration | |
| Serial Number | FRONT BUCKETS WITH HOLES |
| Blade Position | Center |
| Blade Thickness | 0.75 |
| Blade Width | 6 |
| Blade Length | 83.188 |
| Hole Quantity | 10 |
| Bolt Diameter | 0.75 |
| First Hole Distance From End in Inches | 3.344 |
| Second Hole Distance From First Hole in Inches | 8.5 |
| Third Hole Distance From Second Hole in Inches | 8.5 |
| Bolt Quantity for First Row of Holes | 10 |
| Bolt Length for First Row of Holes | 2.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
