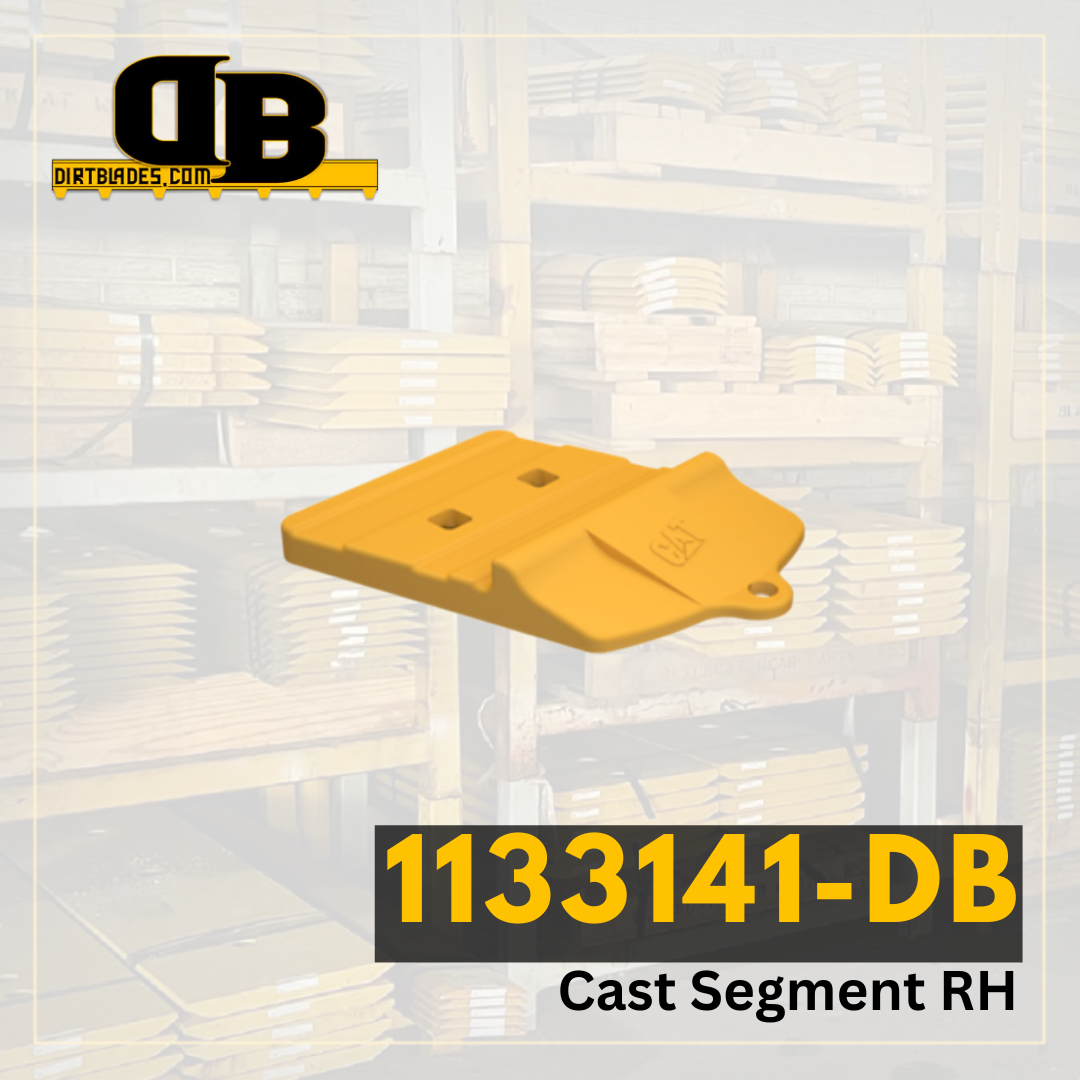

1.78" X 18.276" X 12.913" RH CAST BIT
| Model Number | 980 |
|---|---|
| Series Number | F G |
| Configuration | Spade Nose Rock |
| Serial Number | 2Q2827 2Q2066 2Q2067 |
| Blade Position | HA Segment RH Cast |
| Blade Thickness | 1.75 |
| Blade Width | 18.276 |
| Blade Length | 12.913 |
| Hole Quantity | 2 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 3.052 |
| Second Hole Distance From First Hole in Inches | 5.276 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 3.75 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
