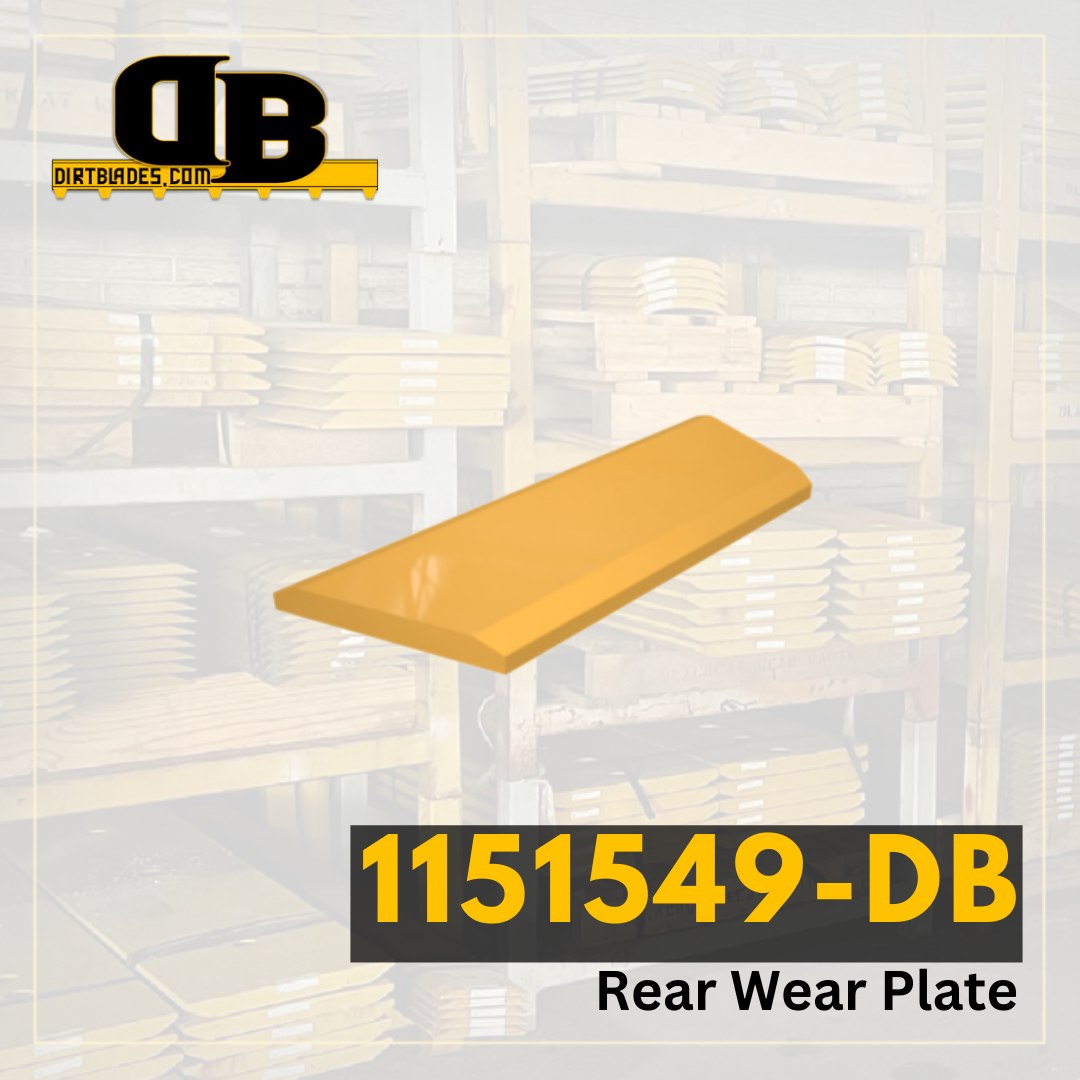

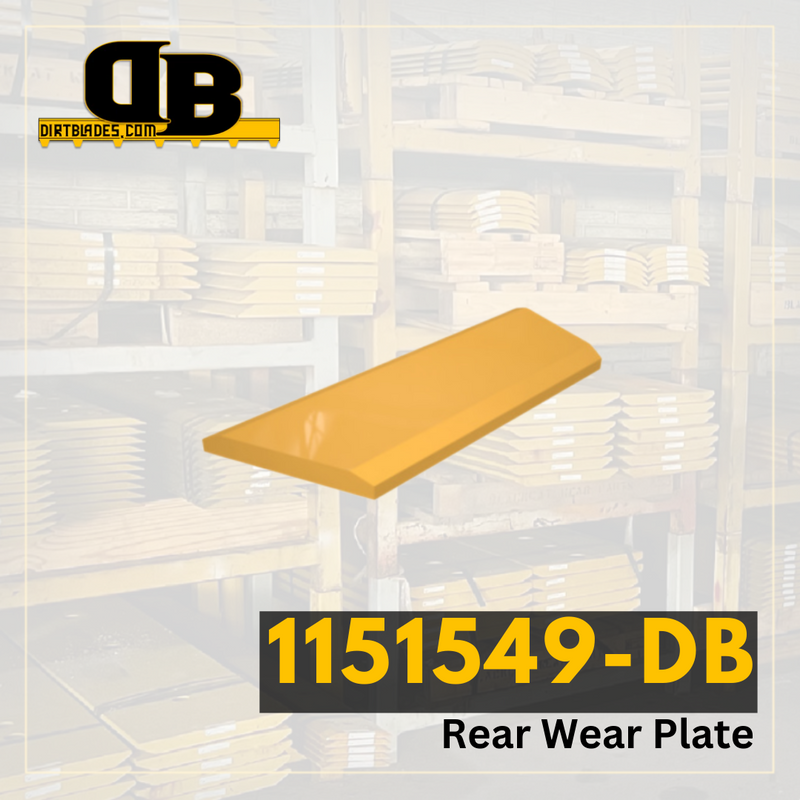

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 992 |
|---|---|
| Series Number | G |
| Configuration | Spade Nose Rock |
| Serial Number | 2411749 2356797 1535620 1124195 1124202 1767360 2356473 2436600 |
| Blade Position | Weld-On Rear Wear Plate |
| Blade Thickness | 1.375 |
| Blade Width | 10 |
| Blade Length | 28.543 |
| Hole Quantity | 0 |
| Bolt Diameter | 0 |
| First Hole Distance From End in Inches | 0 |
| Second Hole Distance From First Hole in Inches | 0 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
