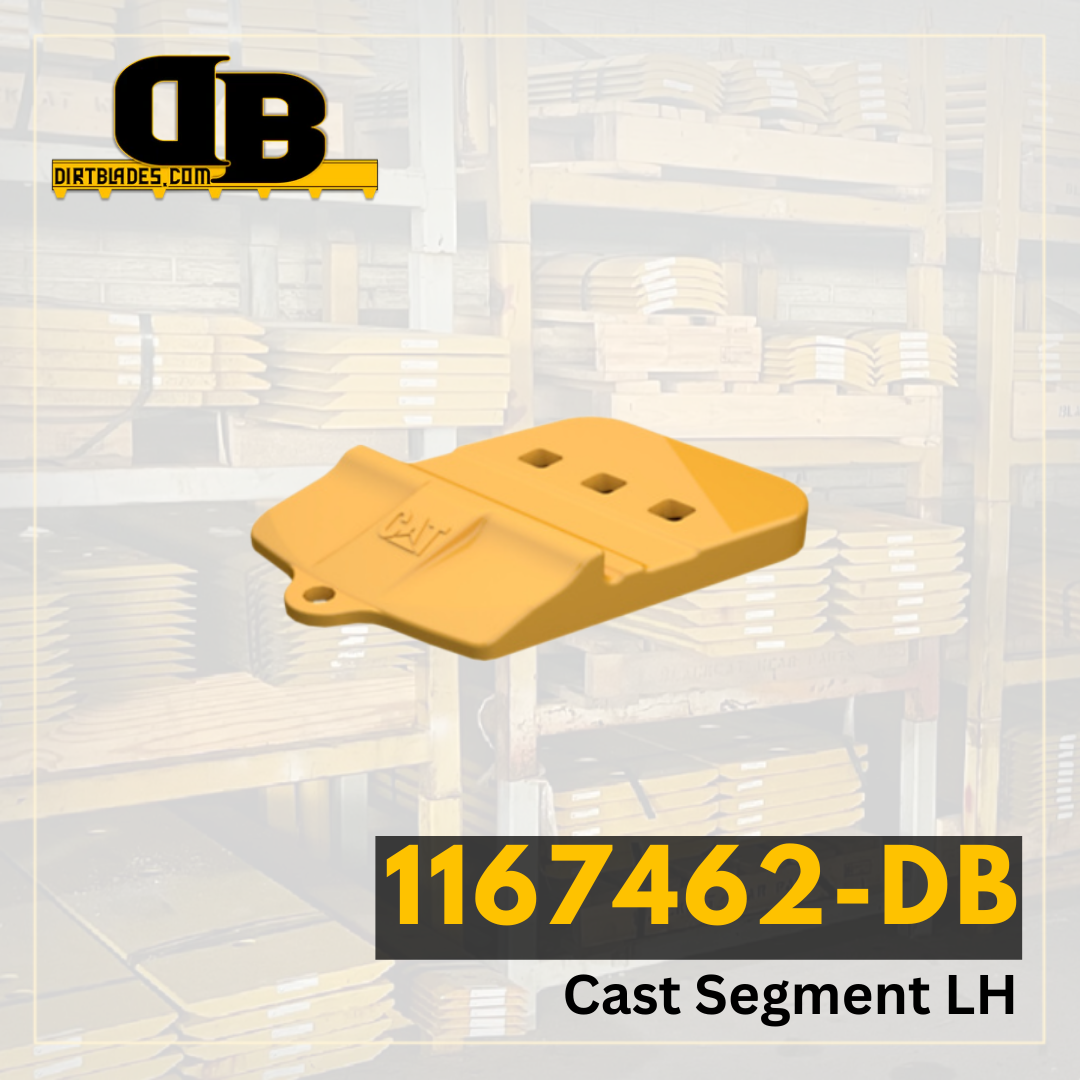

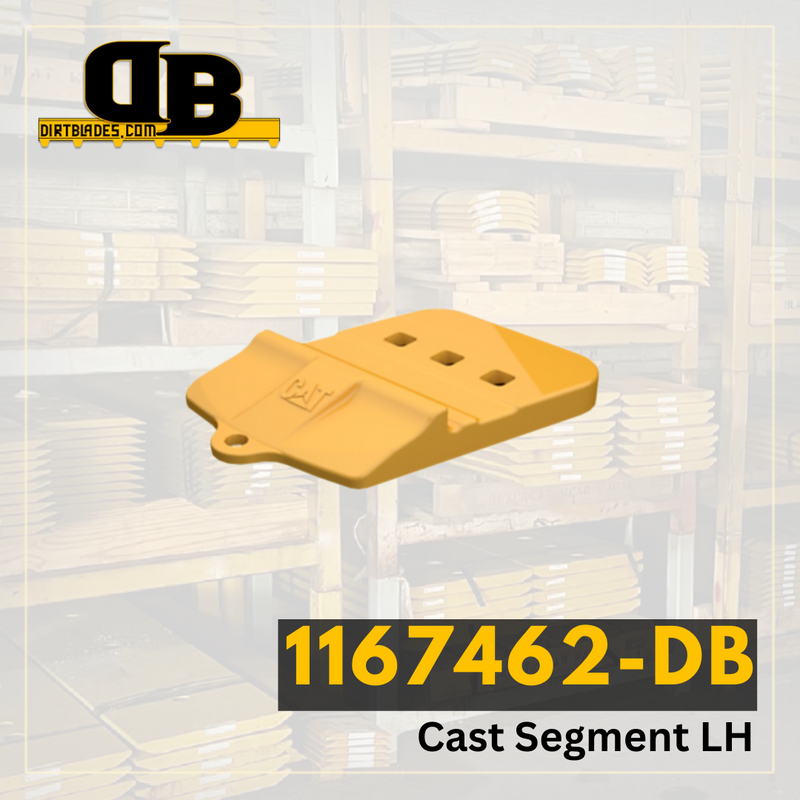

1167462-DB | Cast Segment LH

SKU: 1167462
Regular price $318.63

OEM quality Cast Segments are specially designed to protect your bucket lip. The cast segments provide additional protection to the bucket base edge, covering more area between adapters and enhancing load-ability.

Model Number 844
Series Number J K L
Configuration Spade Nose Rock
Serial Number 137.5" TEETH AND SEGMENTS
Blade Position HA Segment LH Cast
Blade Thickness 2
Blade Width 18.827
Blade Length 12.283
Hole Quantity 3
Bolt Diameter 1.25
First Hole Distance From End in Inches 0
Second Hole Distance From First Hole in Inches 3.346
Third Hole Distance From Second Hole in Inches 3.346
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 4
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
