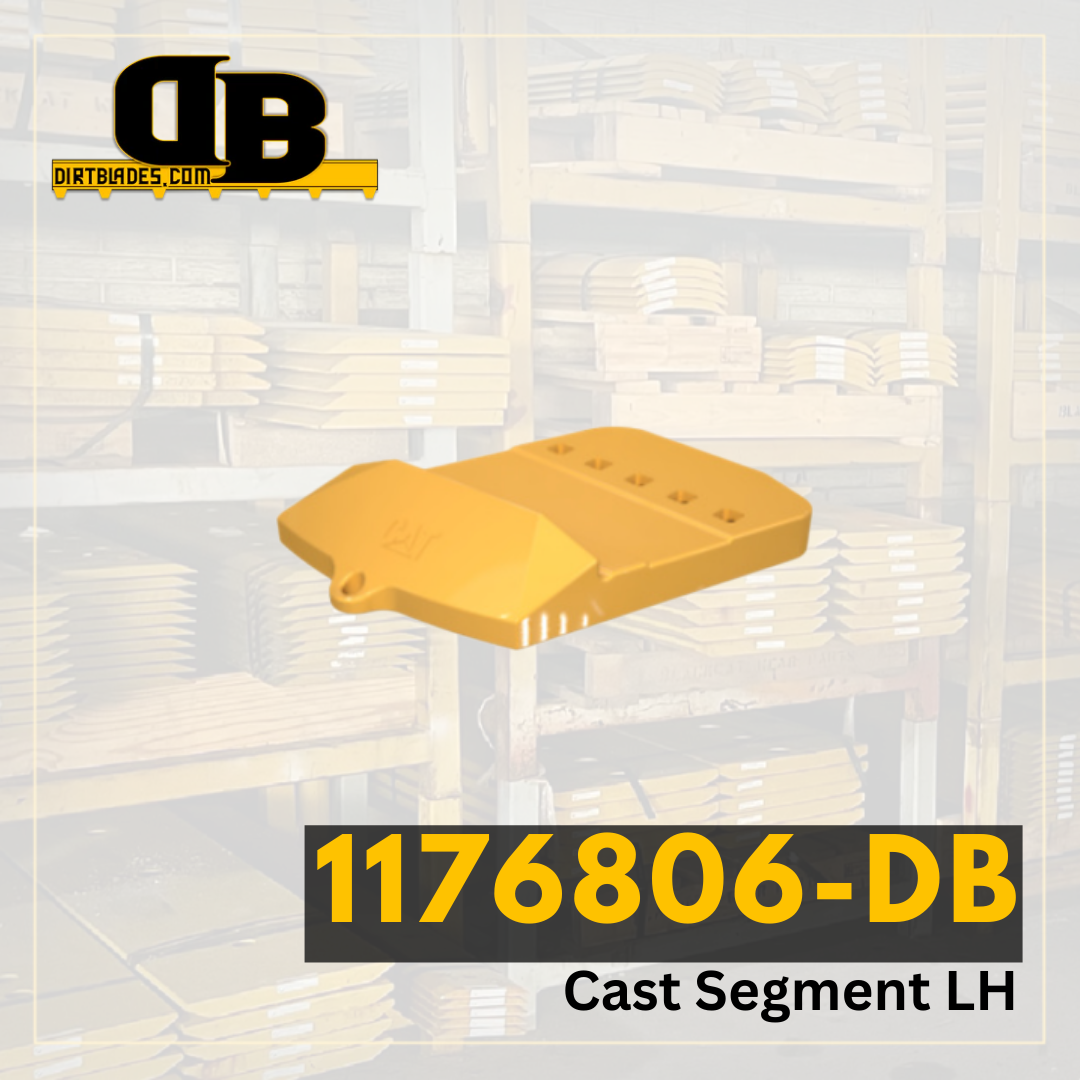

3.5" X 26.75" X 17.323" RH CAST SEGMENT
Model Number | 994 |
---|---|
Series Number | D F H |
Configuration | Spade Nose Rock |
Serial Number | 1212360 1212361 1442844 2573683 2573685 2573687 2929451 2673581 2658292 2573689 2573687 |
Blade Position | HA Segment LH Cast |
Blade Thickness | 3.5 |
Blade Width | 26.75 |
Blade Length | 17.323 |
Hole Quantity | 5 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 2.198 |
Second Hole Distance From First Hole in Inches | 3.346 |
Third Hole Distance From Second Hole in Inches | 3.346 |
Bolt Quantity for First Row of Holes | 5 |
Bolt Length for First Row of Holes | 4.125 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
