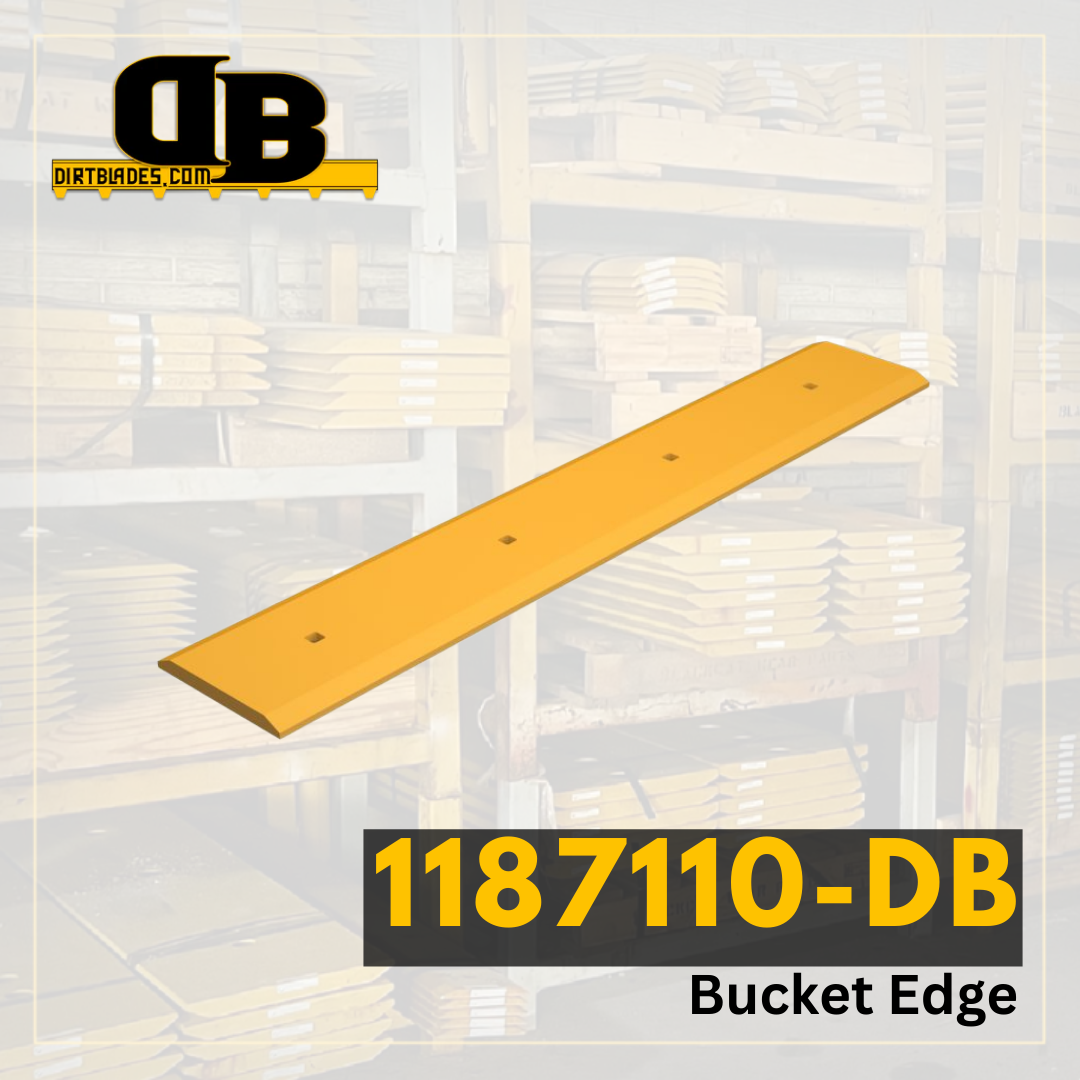

Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
| Model Number | 416 420 424 426 428 430 432 436 438 442 |
|---|---|
| Series Number | |
| Configuration | 94" General Purpose Bucket |
| Serial Number | 9R5202 1121931 1121933 1181971 1181984 |
| Blade Position | Center |
| Blade Thickness | 0.75 |
| Blade Width | 8 |
| Blade Length | 47.875 |
| Hole Quantity | 4 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 5.938 |
| Second Hole Distance From First Hole in Inches | 12 |
| Third Hole Distance From Second Hole in Inches | 12 |
| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 2.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
