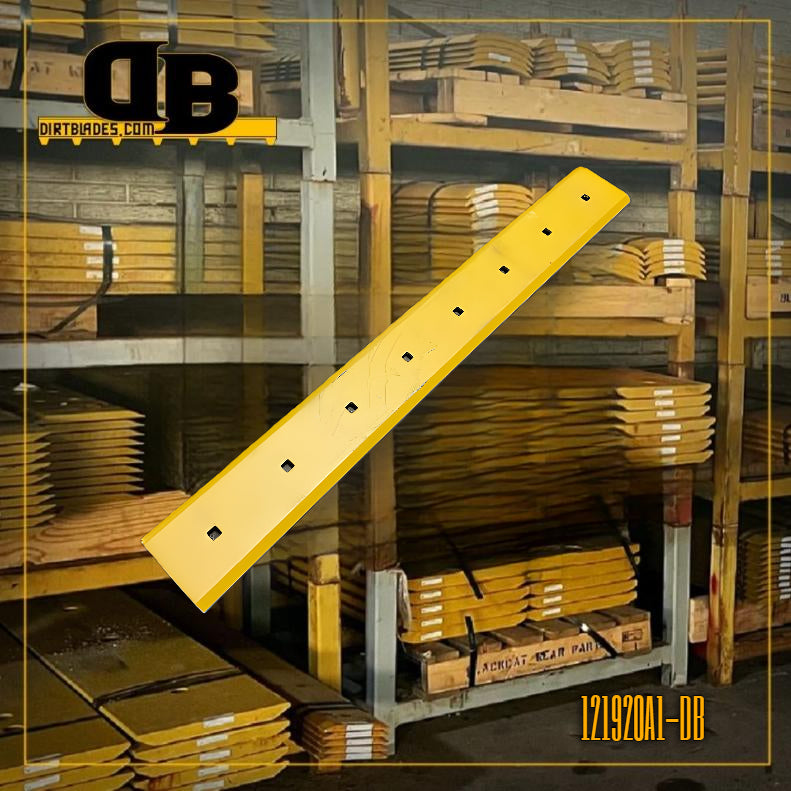

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 480 580 590 680 690 |
|---|---|
| Series | |
| Configuration | |
| Serial Number | FRONT BUCKETS WITH HOLES |
| Blade Position | Multi purpose dozer center |
| Blade Thickness | 0.5 |
| Blade Width | 4 |
| Blade Length | 81.89 |
| Hole Quantity | 10 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 4.945 |
| Second Hole Distance From First Hole in Inches | 8 |
| Third Hole Distance From Second Hole in Inches | 8 |
| Bolt Quantity for First Row of Holes | 10 |
| Bolt Length for First Row of Holes | 2 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
