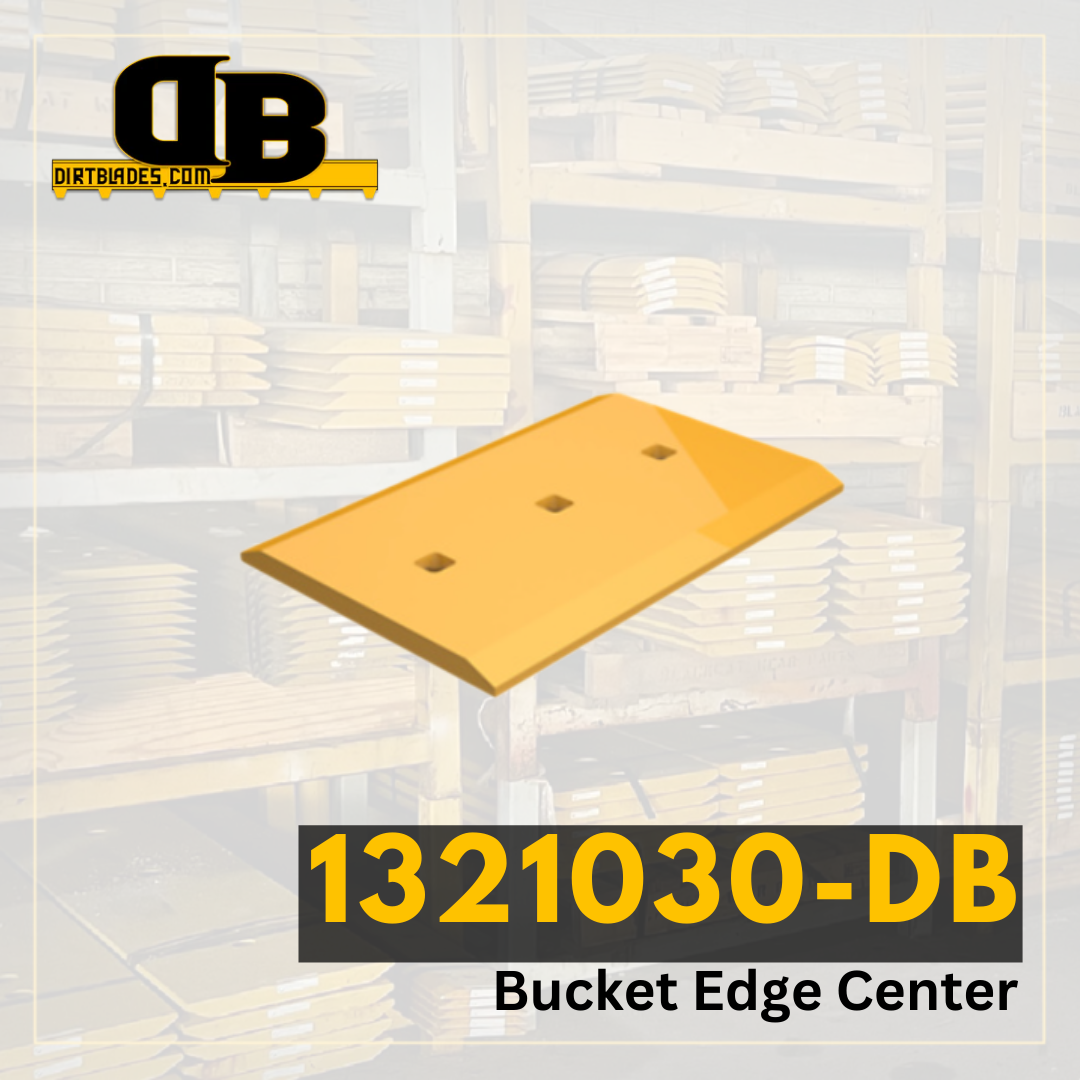

1.375" X 14.25" X 41.125" HD CENTER
Model Number | 944 |
---|---|
Series Number | |
Configuration | Corner Guard System |
Serial Number | 5V7265 |
Blade Position | HD Center |
Blade Thickness | 1.375 |
Blade Width | 14.25 |
Blade Length | 41.125 |
Hole Quantity | 3 |
Bolt Diameter | 1 |
First Hole Distance From End in Inches | 6.813 |
Second Hole Distance From First Hole in Inches | 13.75 |
Third Hole Distance From Second Hole in Inches | 13.75 |
Bolt Quantity for First Row of Holes | 3 |
Bolt Length for First Row of Holes | 3 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
