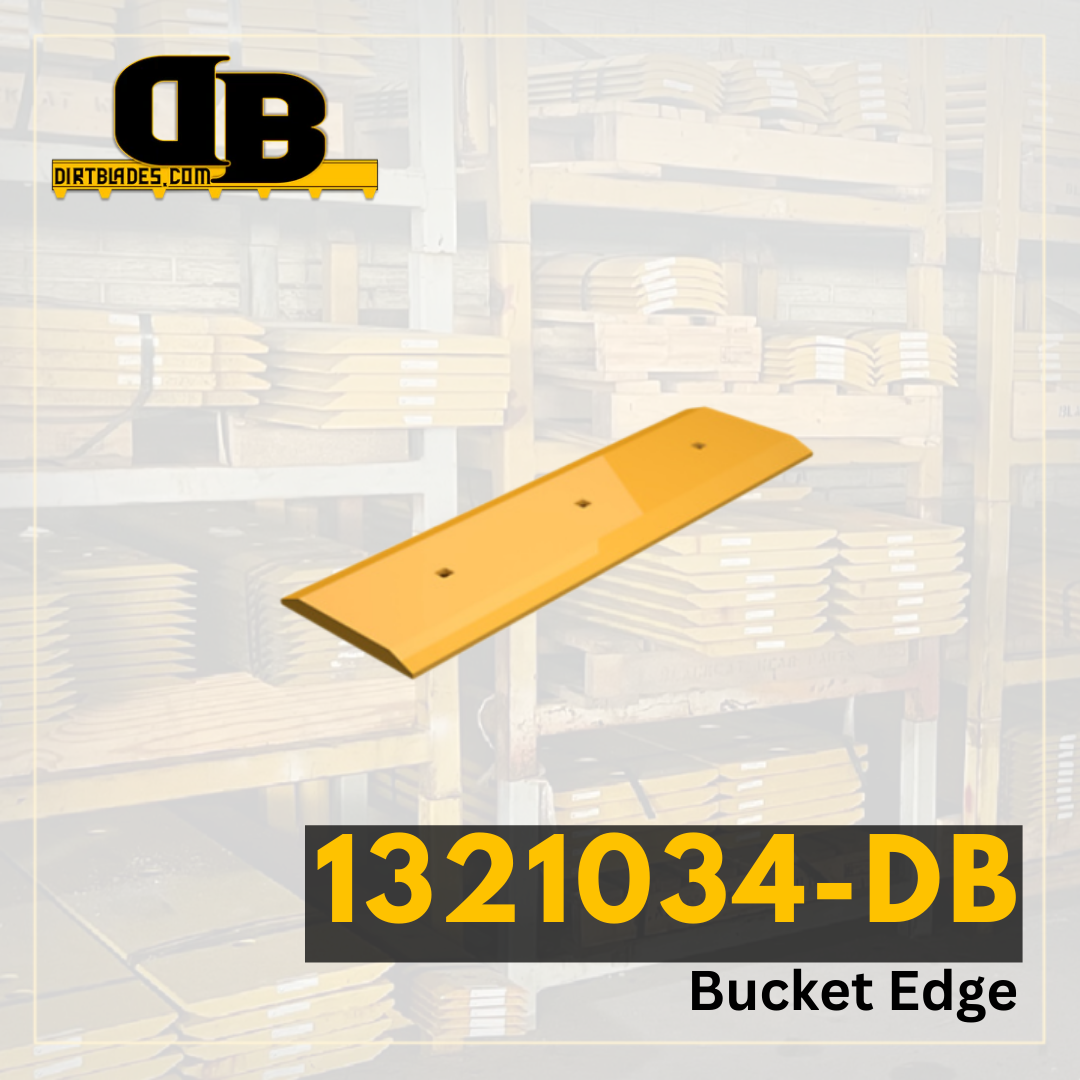

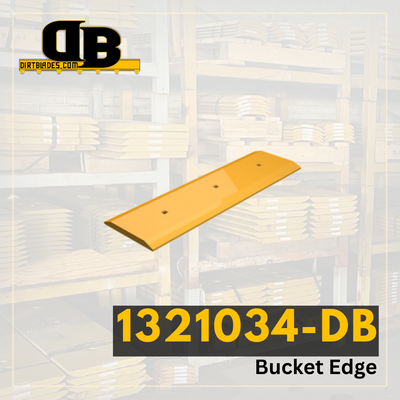

Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
| Model Number | 966 |
|---|---|
| Series Number | G GII H |
| Configuration | Spade Nose Rock |
| Serial Number | 1486908 1486909 2529490 2544500 2544501 2544502 2544503 2678804 3107887 |
| Blade Position | Top Plate for Half Arrow RH |
| Blade Thickness | 0.75 |
| Blade Width | 8 |
| Blade Length | 14.54 |
| Hole Quantity | 2 |
| Bolt Diameter | 1.5 |
| First Hole Distance From End in Inches | 3.107 |
| Second Hole Distance From First Hole in Inches | 7.913 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
