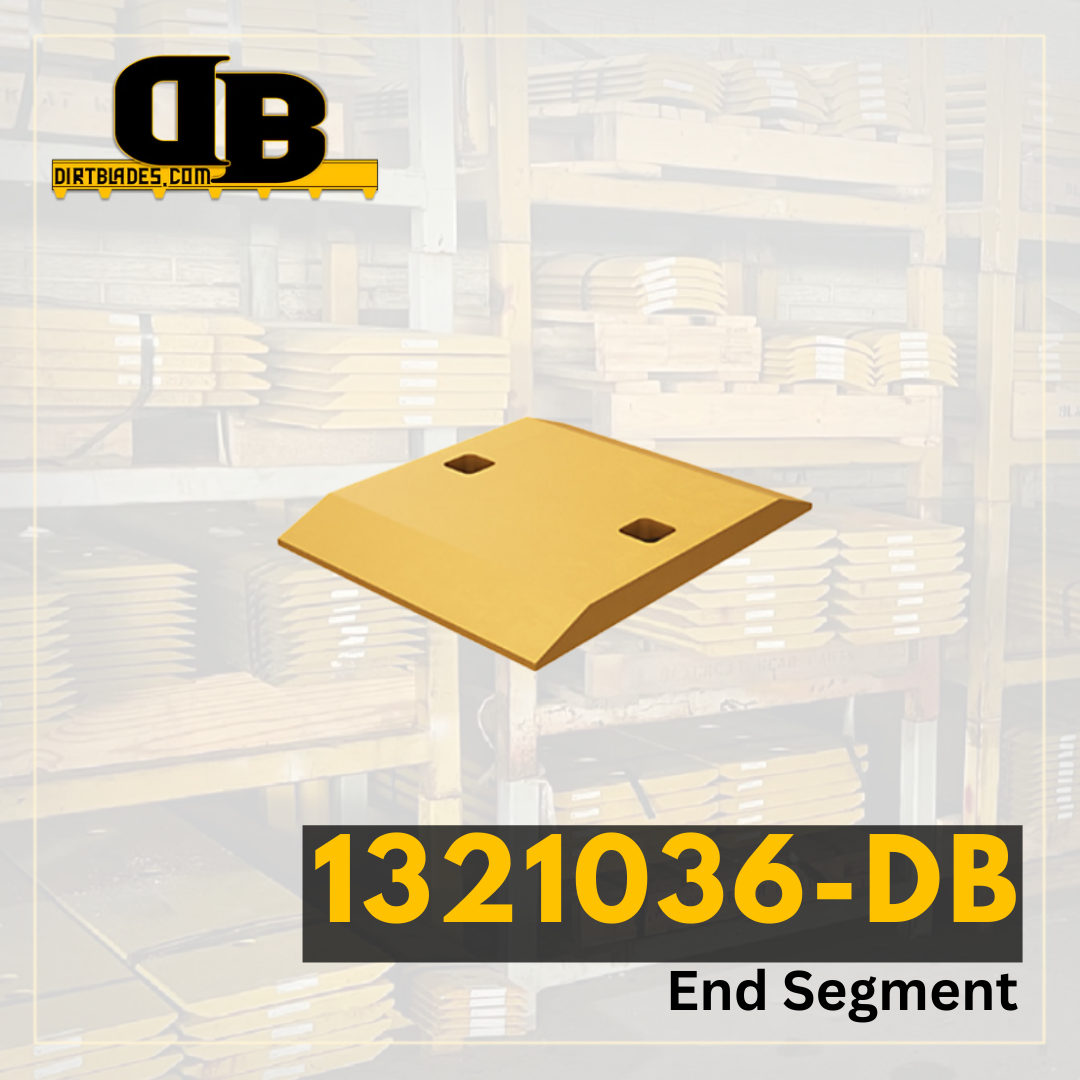

1.375" X 11" X 8.25" HD END SEGMENT
Model Number | 920 |
---|---|
Series Number | |
Configuration | Corner Guard System |
Serial Number | 5V4662 5V4660 |
Blade Position | HD End Segment |
Blade Thickness | 1.375 |
Blade Width | 11 |
Blade Length | 8.25 |
Hole Quantity | 2 |
Bolt Diameter | 1 |
First Hole Distance From End in Inches | 1.375 |
Second Hole Distance From First Hole in Inches | 5.5 |
Third Hole Distance From Second Hole in Inches | 1.375 |
Bolt Quantity for First Row of Holes | 2 |
Bolt Length for First Row of Holes | 2.75 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
