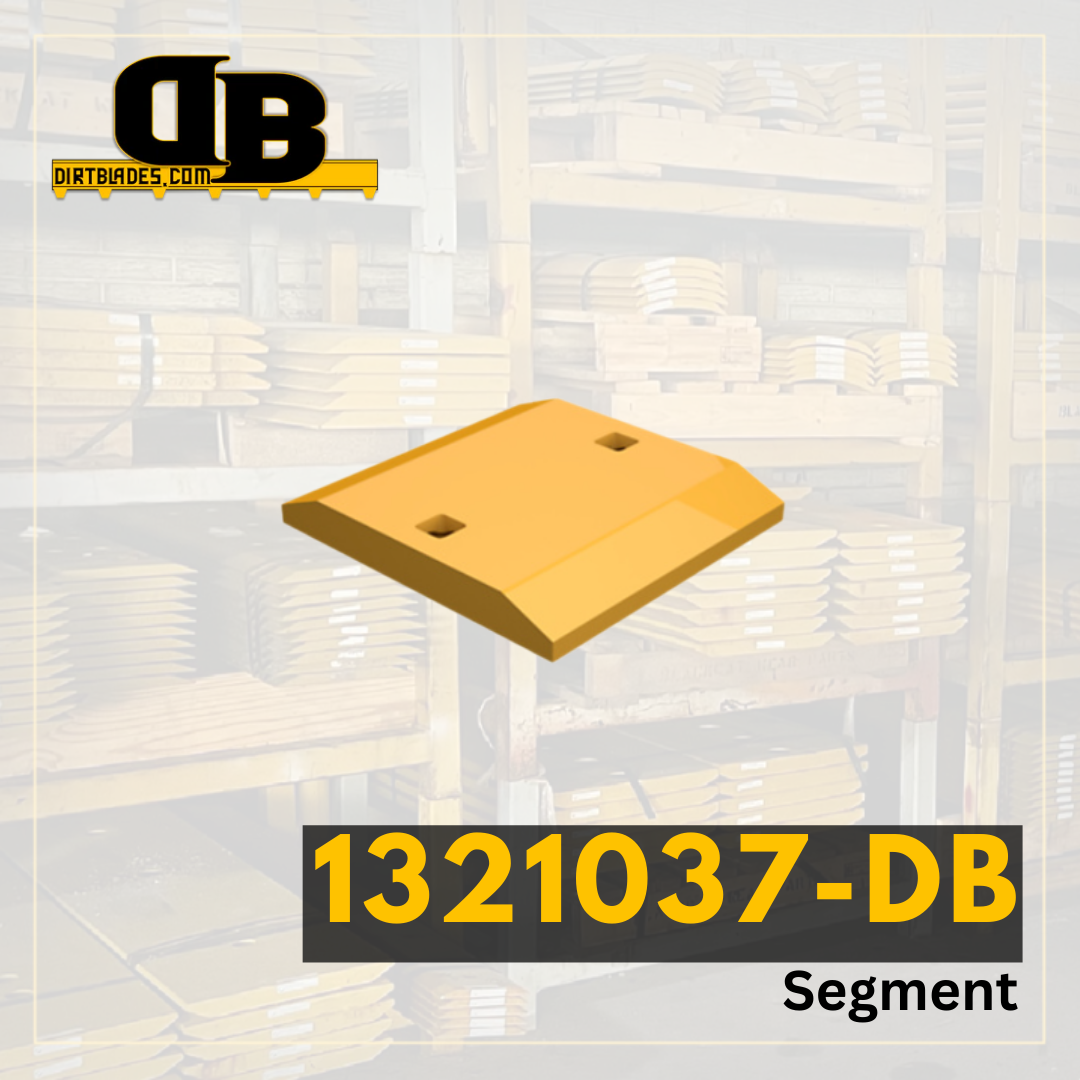

Cutting-edge segments protect your bucket's lip and deliver superior protection to your machine. They are versatile, durable, and made from steel. By choosing quality OEM Ground Engaging Tools, you can ensure that your investment is protected and your machine delivers the performance you demand.
Model Number | 936 |
---|---|
Series Number | E F |
Configuration | Corner Guard System |
Serial Number | 9V1081 9C4829 9C8265 6W7781 9V1082 9C4826 9C4827 6W6002 9C6373 8R5005 9C6375 9U3185 |
Blade Position | HD Segment |
Blade Thickness | 1.375 |
Blade Width | 11 |
Blade Length | 10.438 |
Hole Quantity | 2 |
Bolt Diameter | 1 |
First Hole Distance From End in Inches | 1.375 |
Second Hole Distance From First Hole in Inches | 7.688 |
Third Hole Distance From Second Hole in Inches | 0 |
Bolt Quantity for First Row of Holes | 2 |
Bolt Length for First Row of Holes | 2.75 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
