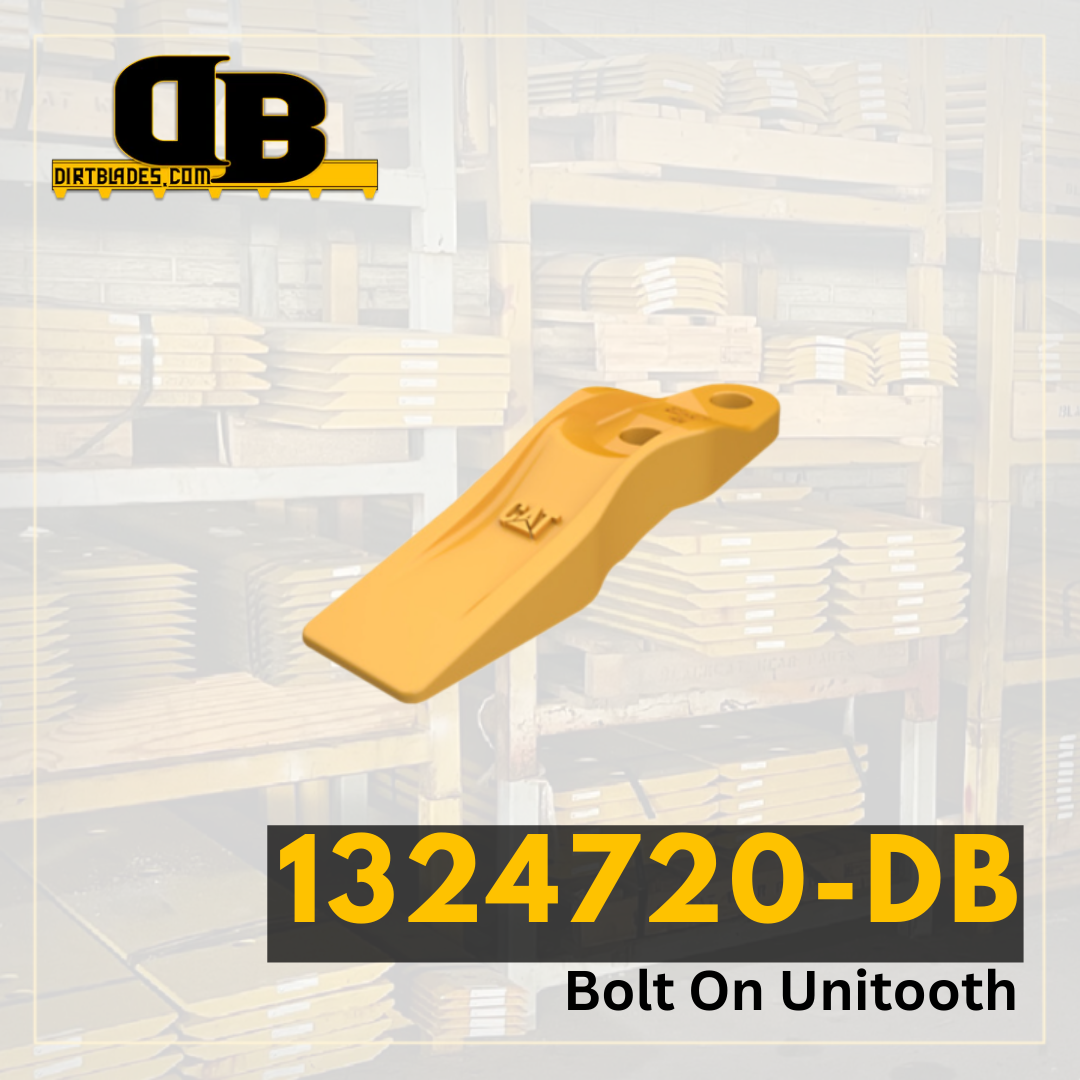

A Unitooth tip is a vertical pinned, one-piece bucket tip that allows for quick removal and installation on small machines. The Unitooth tip is for use in general applications where breakage is not a concern.
| Model Number | 902 |
|---|---|
| Series Number | |
| Configuration | General Purpose, Multi-Purpose, High Dump |
| Serial Number | 1388941 1388912 1501917 |
| Blade Position | Bolt on Unitooth |
| Blade Thickness | 2 |
| Blade Width | 2.313 |
| Blade Length | 9.188 |
| Hole Quantity | 2 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 0 |
| Second Hole Distance From First Hole in Inches | 2.375 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
