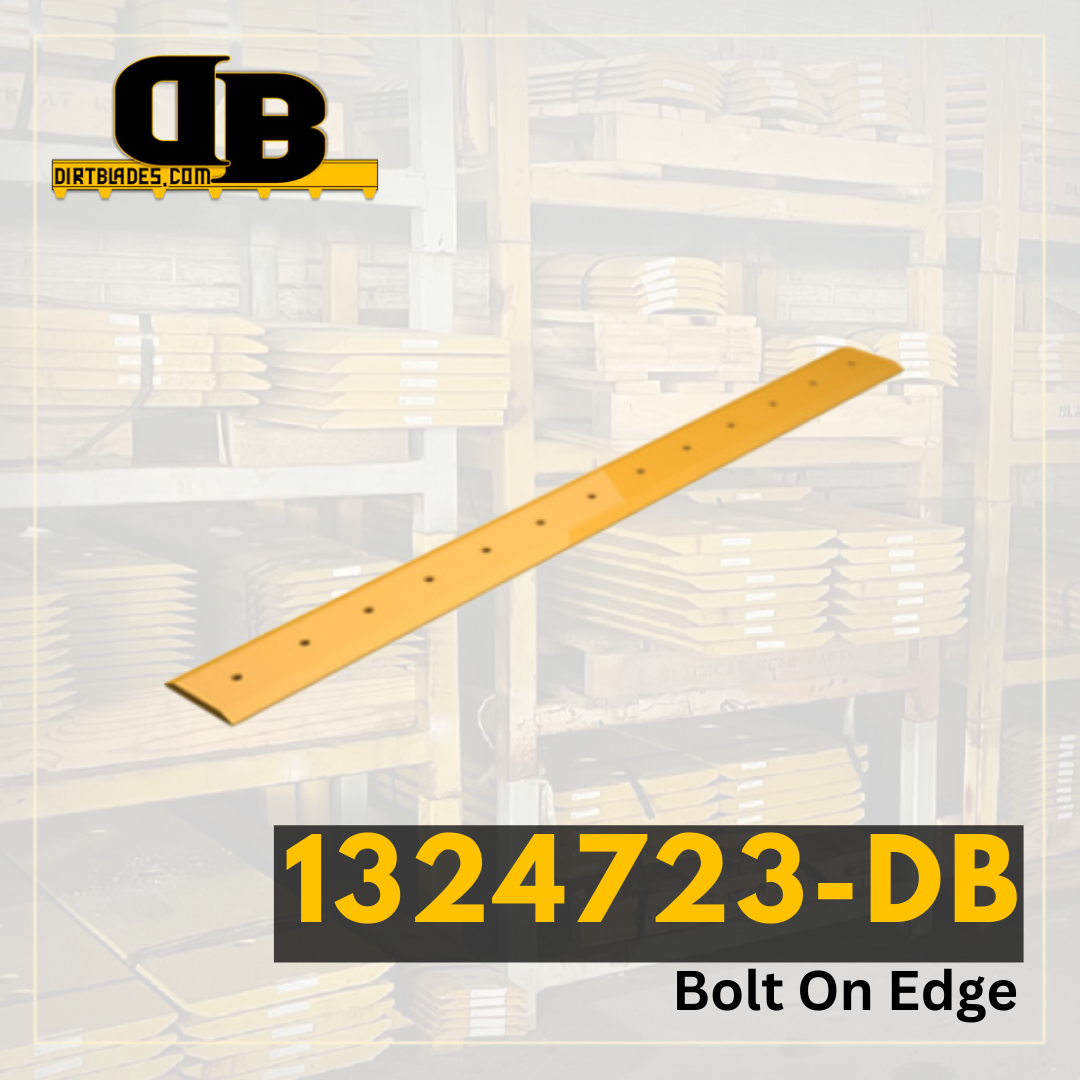

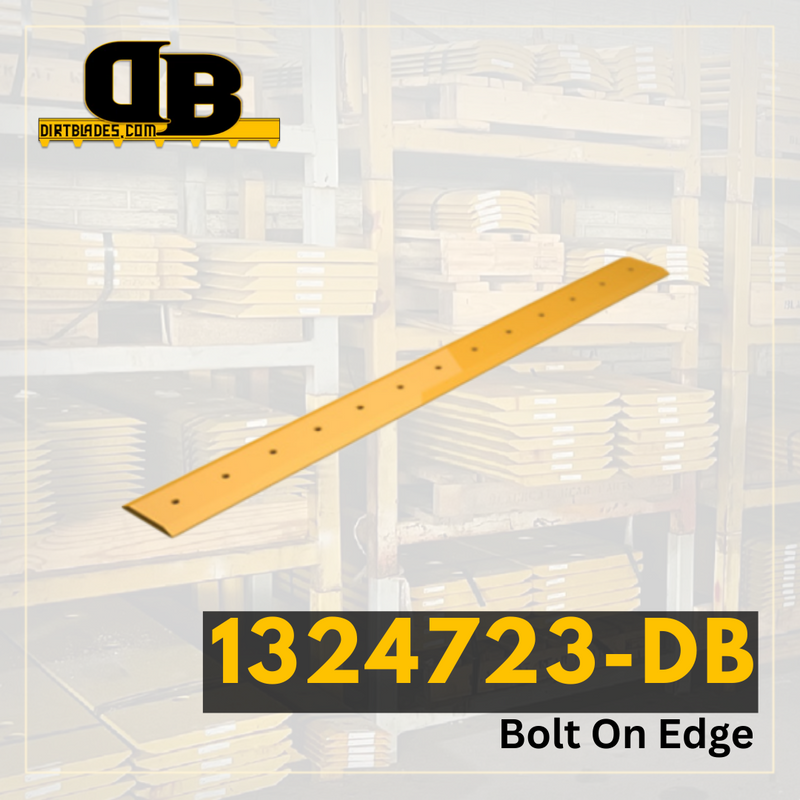

Cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.
| Model Number | L70 |
|---|---|
| Series Number | E |
| Configuration | Light Material |
| Serial Number | 82512 82511 |
| Blade Position | End |
| Blade Thickness | 1 |
| Blade Width | 18.15 |
| Blade Length | 24.5 |
| Hole Quantity | 6 |
| Bolt Diameter | 0.75 |
| First Hole Distance From End in Inches | 5.614 |
| Second Hole Distance From First Hole in Inches | 6.63 |
| Third Hole Distance From Second Hole in Inches | 6.63 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 3 |
| Bolt Quantity for Second Row of Holes | 3 |
| Bolt Length for Second Row of Holes | 3 |
| Second Set of Holes First Hole Distance From End | 5.614 |
| Second Set of Holes Second Hole Distance From First Hole | 6.63 |
| Second Set of Holes Third Hole Distance From Second Hole | 6.63 |
