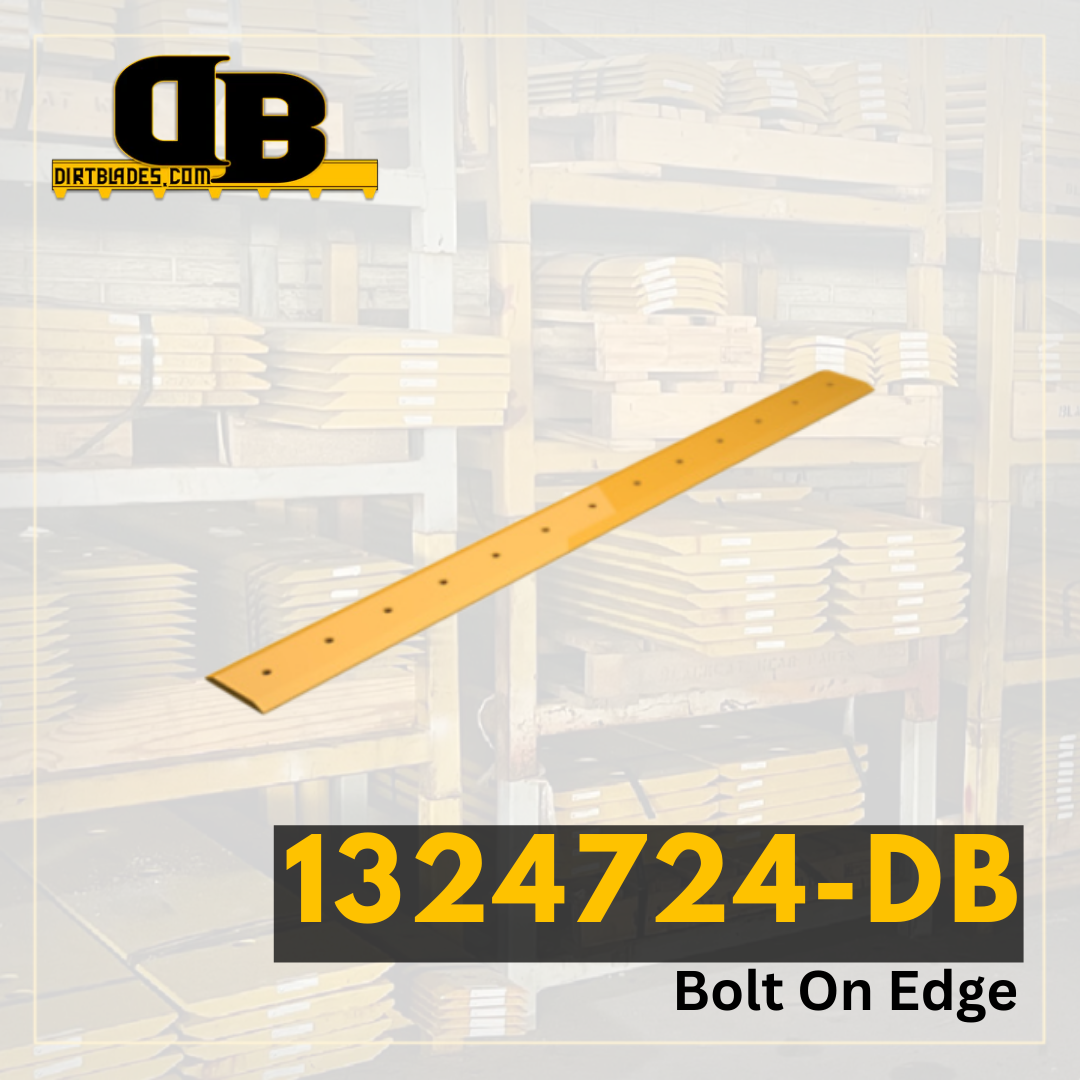

Cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.
| Model Number | L150 |
|---|---|
| Series Number | '- C |
| Configuration | General Purpose, Light Material, High Tipping |
| Serial Number | 92204 92205 92179 92180 91954 91955 92541 92416 91755 92268 82008 82009 |
| Blade Position | Base Edge for 1" Bolts |
| Blade Thickness | 1.125 |
| Blade Width | 9.843 |
| Blade Length | 126 |
| Hole Quantity | 25 |
| Bolt Diameter | 1.063 |
| First Hole Distance From End in Inches | 4.5 |
| Second Hole Distance From First Hole in Inches | 5 |
| Third Hole Distance From Second Hole in Inches | 7.5 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
