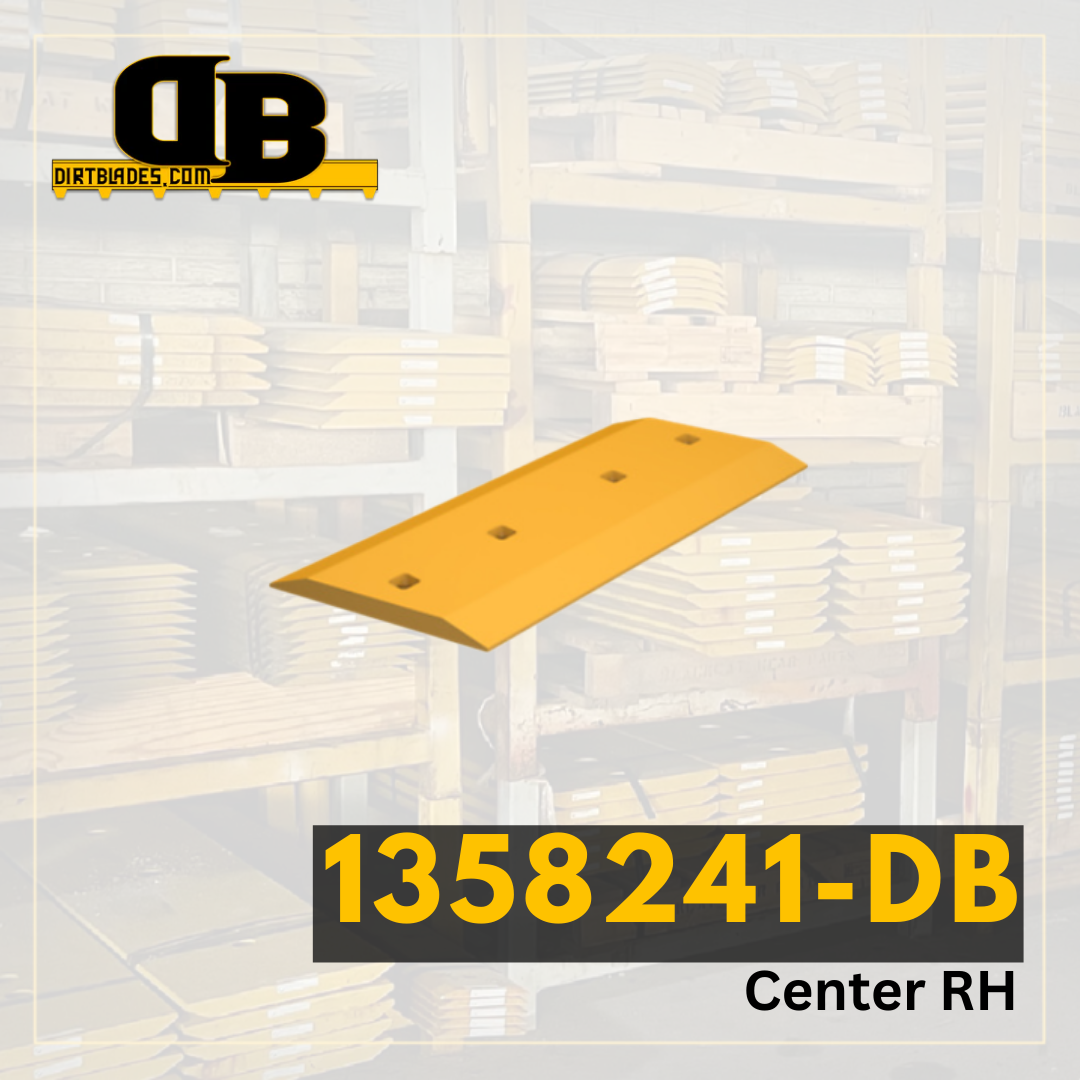

Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
Model Number | 966 |
---|---|
Series Number | G GII H |
Configuration | Spade Nose Rock |
Serial Number | 1486907 1486906 1486910 |
Blade Position | Center RH |
Blade Thickness | 1.375 |
Blade Width | 14.17 |
Blade Length | 34.861 |
Hole Quantity | 4 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 4.3 |
Second Hole Distance From First Hole in Inches | 7.913 |
Third Hole Distance From Second Hole in Inches | 10.433 |
Bolt Quantity for First Row of Holes | 4 |
Bolt Length for First Row of Holes | 3.25 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
