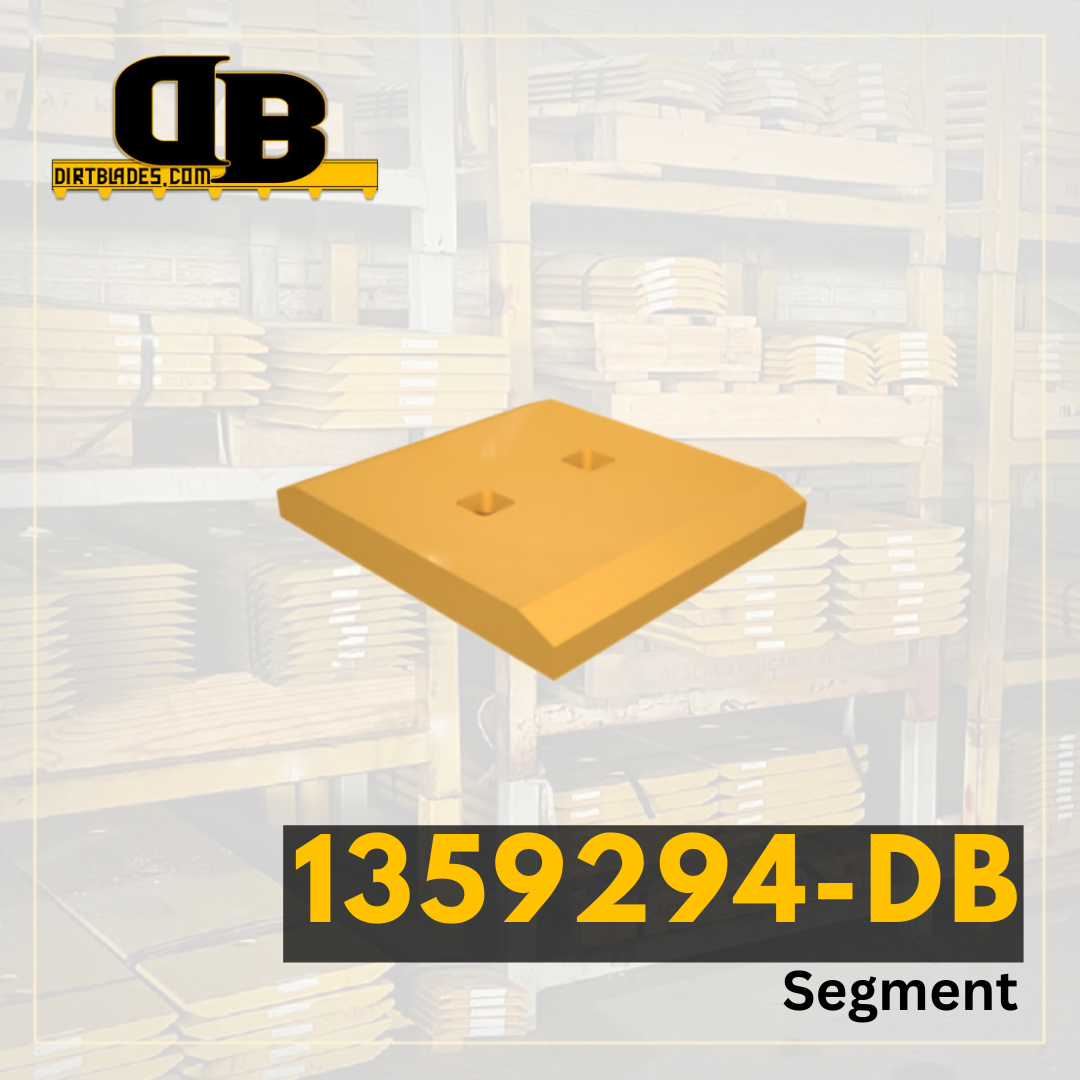

1359294-DB | Segment

SKU: 1359294
Regular price $150.20

Cutting-edge segments protect your bucket's lip and deliver superior protection to your machine. They are versatile, durable, and made from steel. By choosing quality OEM Ground Engaging Tools, you can ensure that your investment is protected and your machine delivers the performance you demand.

Model Number 966
Series Number G GII H
Configuration Spade Nose Rock
Serial Number 1486908 1486909 2529490 2544500 2544501 2544502 2544503 2678804 3107887
Blade Position Segment
Blade Thickness 1.625
Blade Width 13
Blade Length 11.81
Hole Quantity 2
Bolt Diameter 1.25
First Hole Distance From End in Inches 3.545
Second Hole Distance From First Hole in Inches 4.72
Third Hole Distance From Second Hole in Inches 0
Bolt Quantity for First Row of Holes 2
Bolt Length for First Row of Holes 3.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
