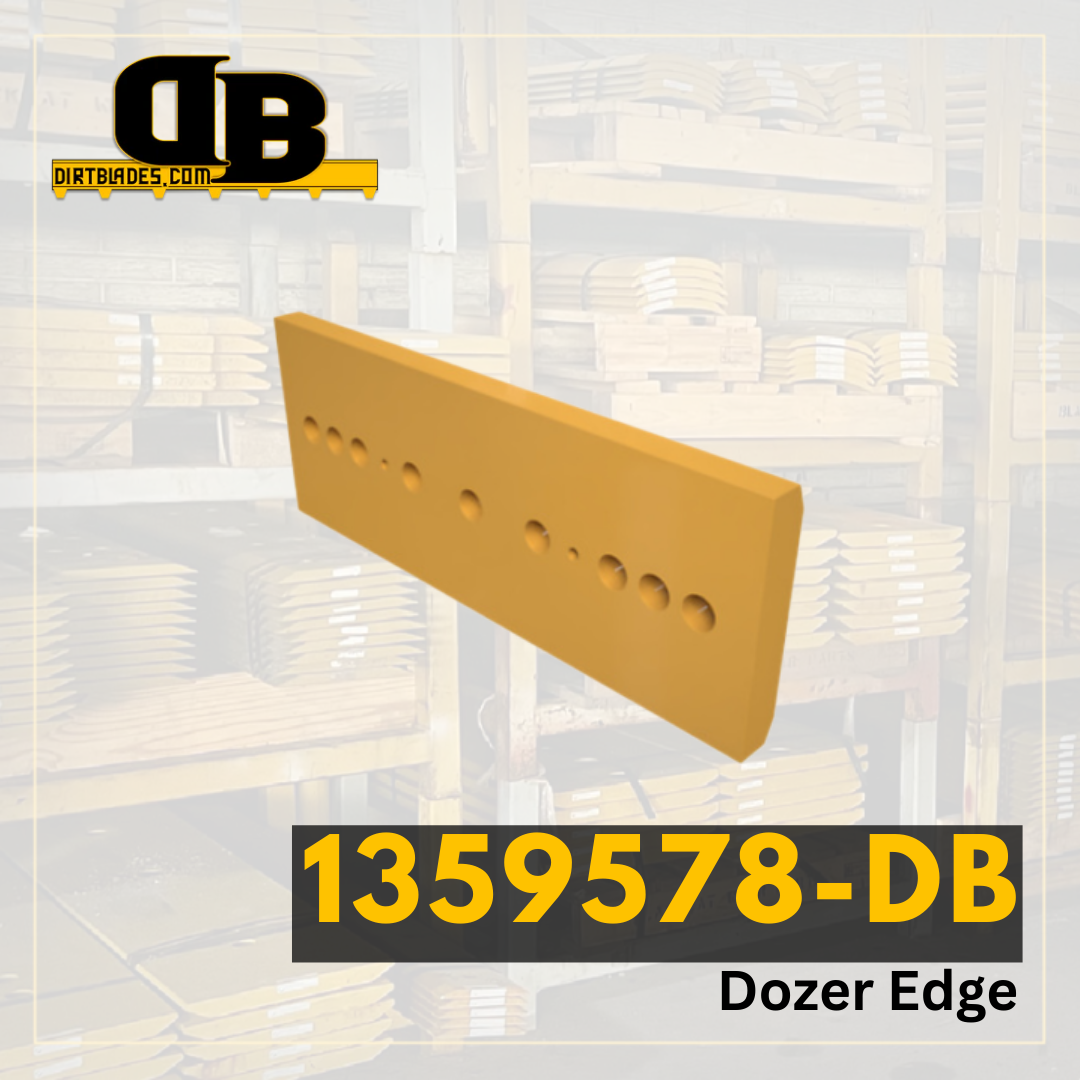

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | D10 |
|---|---|
| Series Number | N R T |
| Configuration | Full-U |
| Serial Number | 1SH 7WH 4LP 6FP BHF BHP SRP EPA |
| Blade Position | Extra Heavy Duty Center |
| Blade Thickness | 3 |
| Blade Width | 16 |
| Blade Length | 43.25 |
| Hole Quantity | 9 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 3.625 |
| Second Hole Distance From First Hole in Inches | 3 |
| Third Hole Distance From Second Hole in Inches | 3 |
| Bolt Quantity for First Row of Holes | 9 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
