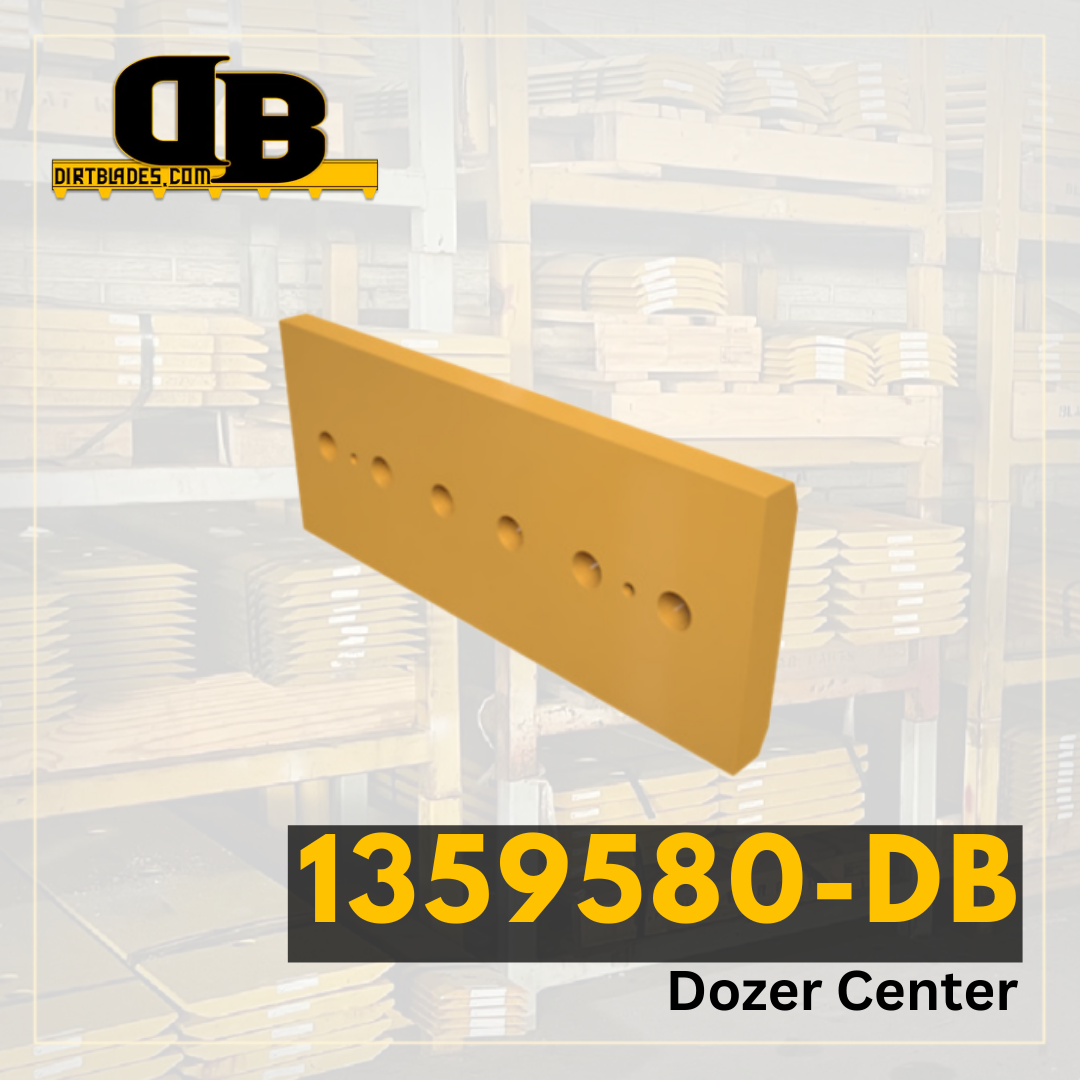

1359580-DB | Dozer Center

SKU: 1359580
Regular price $881.32

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D10
Series Number N R T
Configuration Semi-U
Serial Number 1RH 7RH 4KP 6EP BHJ BHA JGD EPB
Blade Position Extra Heavy Duty Center
Blade Thickness 3
Blade Width 16
Blade Length 39.125
Hole Quantity 6
Bolt Diameter 1.25
First Hole Distance From End in Inches 4.563
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 6
Bolt Length for First Row of Holes 4.125
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
