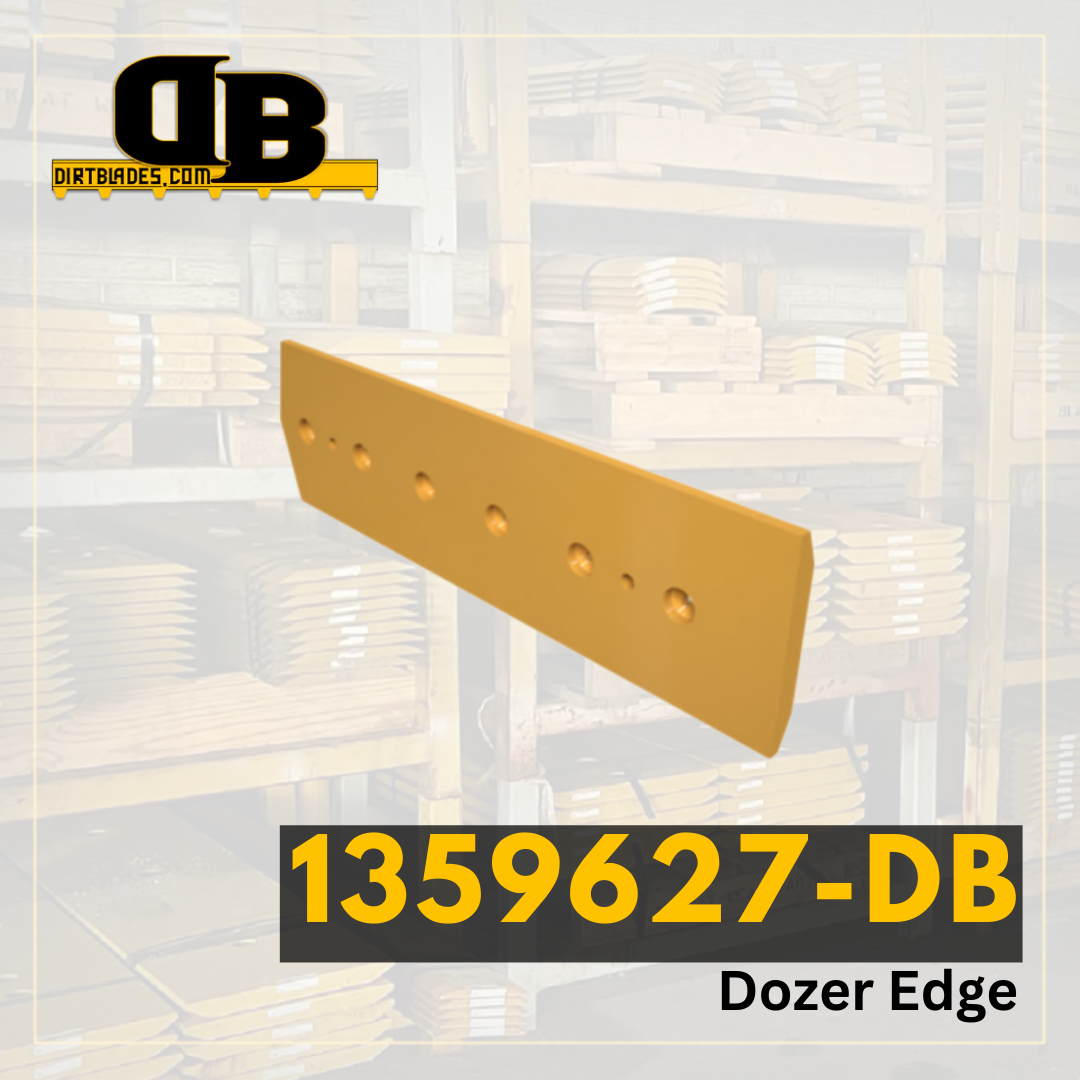

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
Model Number | D7 |
---|---|
Series Number | H R |
Configuration | Full-U |
Serial Number | 5SB 9JB 7AC 8MH JIL CDL |
Blade Position | Heavy Duty 11" Center |
Blade Thickness | 1.375 |
Blade Width | 11 |
Blade Length | 38.938 |
Hole Quantity | 6 |
Bolt Diameter | 0.875 |
First Hole Distance From End in Inches | 5.5 |
Second Hole Distance From First Hole in Inches | 6 |
Third Hole Distance From Second Hole in Inches | 6 |
Bolt Quantity for First Row of Holes | 6 |
Bolt Length for First Row of Holes | 2.75 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
