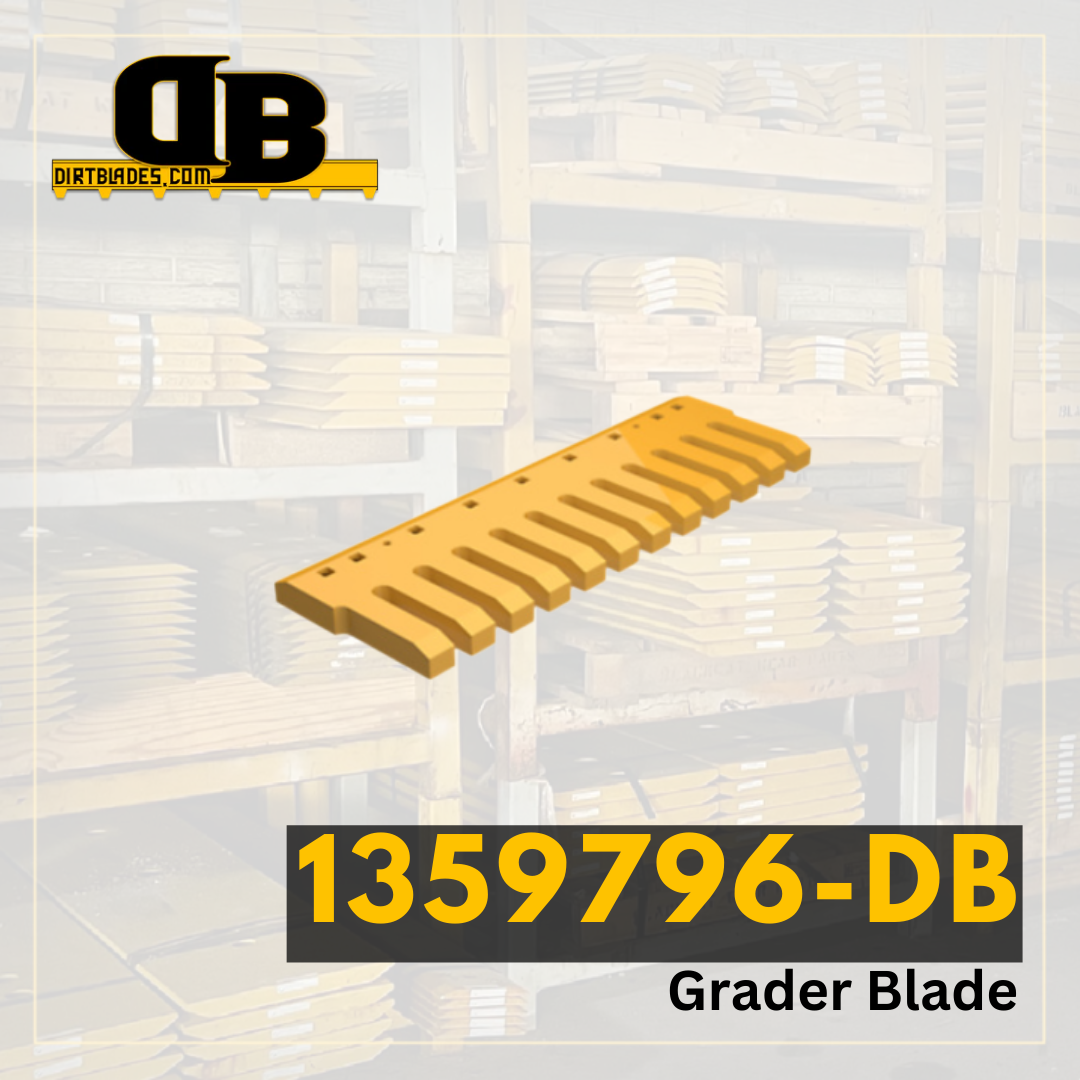

1359796-DB | Grader Blade

SKU: 1359796
Regular price $0.00

The Grader Blade, or the land leveler, is a heavy-duty equipment that's used mostly for smoothing and leveling the ground. It's got a big, flat metal blade that you can adjust to different angles and heights and attach it to a tractor or other heavy machinery. The cool thing is that you can adjust the blade's height and angle to match the job's requirements. The blades are made precisely to last long, work reliably, and enhance productivity.

Model Number 1" HOLES
Series Number
Configuration Flat Serrated Heat-treated
Serial Number
Blade Position 4 Foot
Blade Thickness 2.375
Blade Width 16
Blade Length 47.75
Hole Quantity 9
Bolt Diameter 1
First Hole Distance From End in Inches 2.875
Second Hole Distance From First Hole in Inches 3
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
