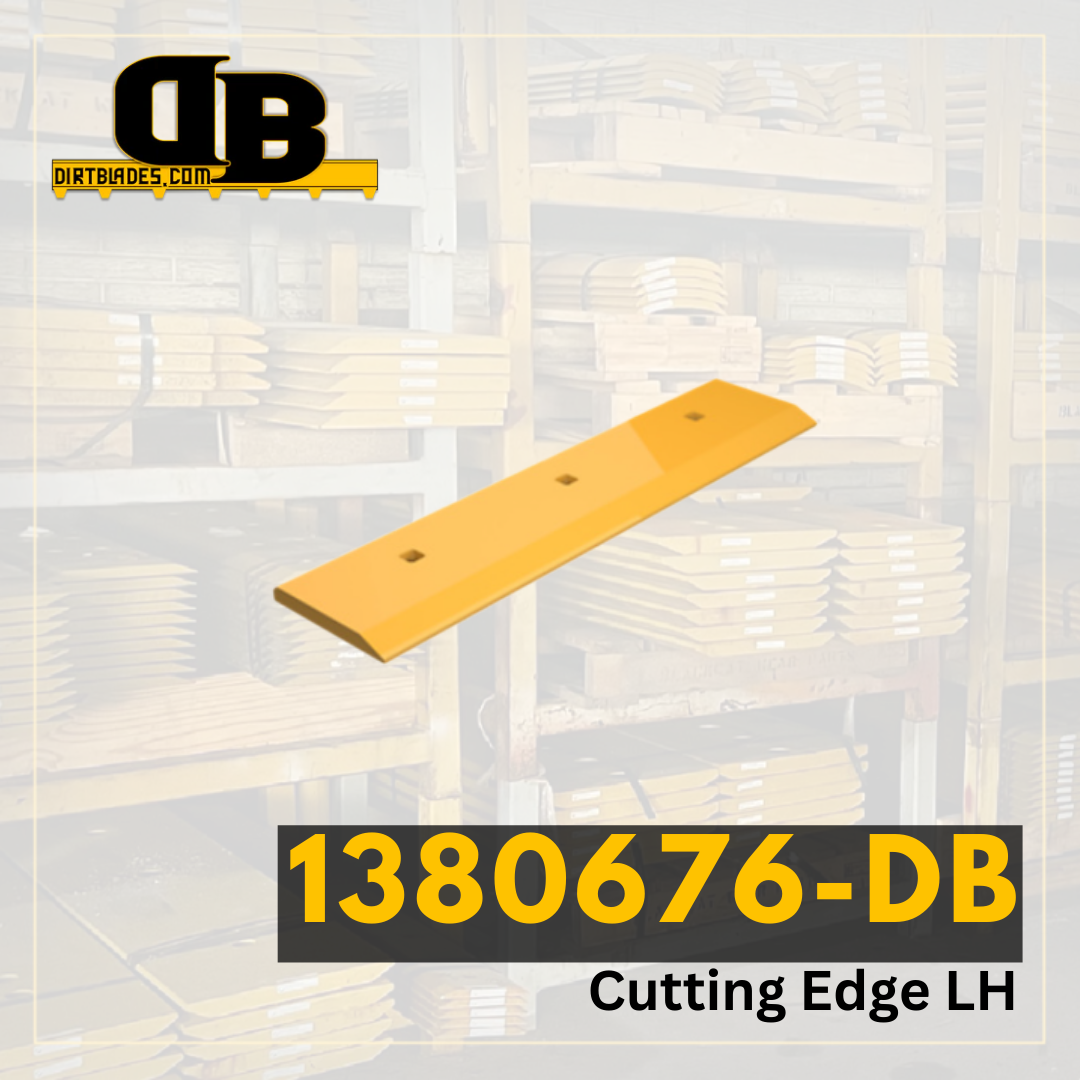

Cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.
| Model Number | 950 |
|---|---|
| Series | H |
| Configuration | Corner Guard System, Material Handling |
| Serial Number | 1570314 1570316 1570317 2192694 |
| Blade Position | C/IMP Center NR LH |
| Blade Thickness | 1.125 |
| Blade Width | 11 |
| Blade Length | 48.875 |
| Hole Quantity | 3 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 7.75 |
| Second Hole Distance From First Hole in Inches | 15.63 |
| Third Hole Distance From Second Hole in Inches | 15.63 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
