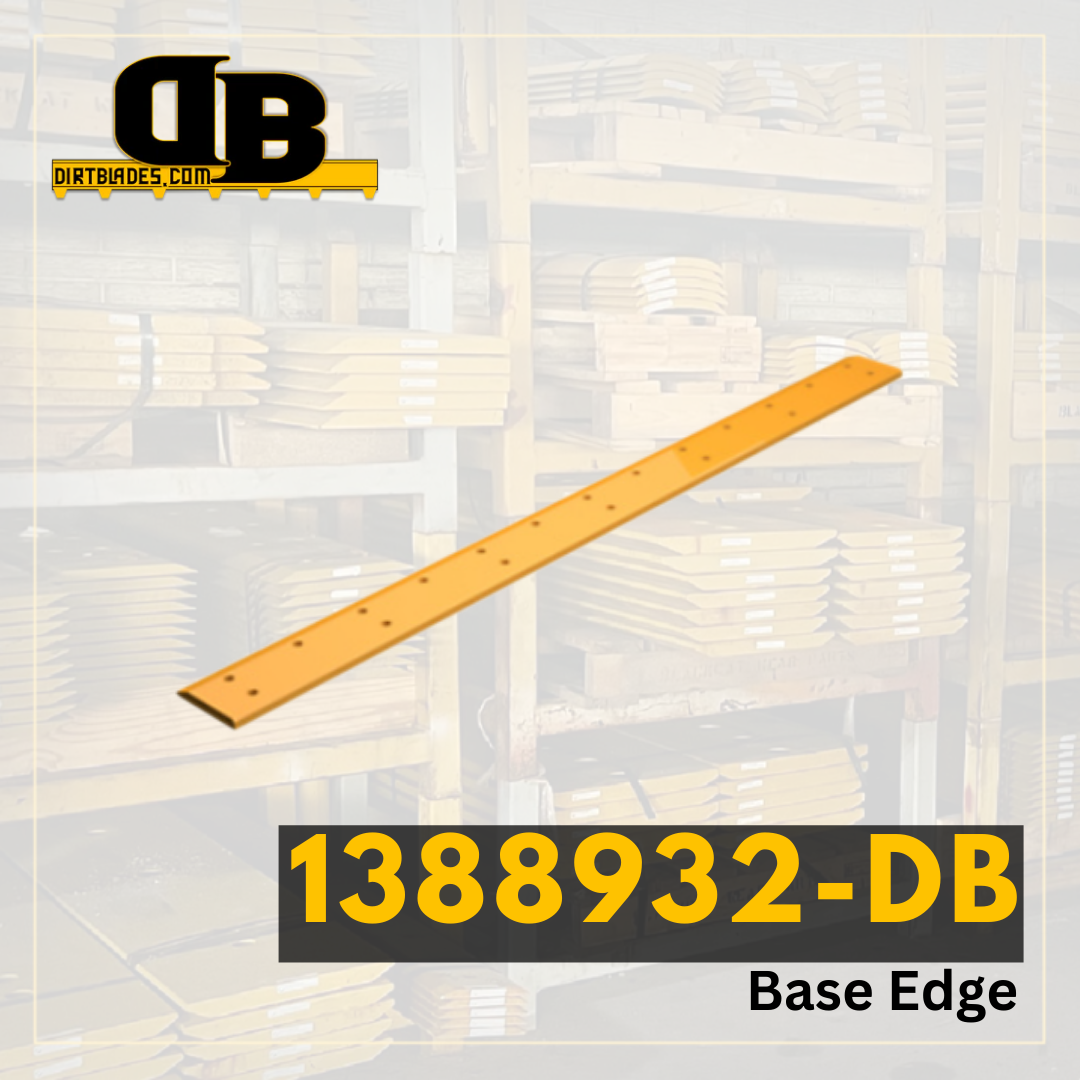

Base Edges are the ultimate solution for heavy equipment performance. Made from high-quality materials, they provide exceptional durability and performance in tough conditions. Their precise engineering ensures a perfect fit on a wide range of equipment models, maximizing productivity and uptime. Invest in our products today for unmatched reliability and performance that will take your operations to the next level!
| Model Number | D9 |
|---|---|
| Series Number | N R T |
| Configuration | Semi-U |
| Serial Number | 1MH 5BH 1LP 2LP 7NH 2ZP 2BP 9LH 9RP CLC CLN CLY CMA |
| Blade Position | Dozer Blade Support |
| Blade Thickness | 1.5 |
| Blade Width | 10 |
| Blade Length | 134.5 |
| Hole Quantity | 22 |
| Bolt Diameter | 1.063 |
| First Hole Distance From End in Inches | 4.75 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
