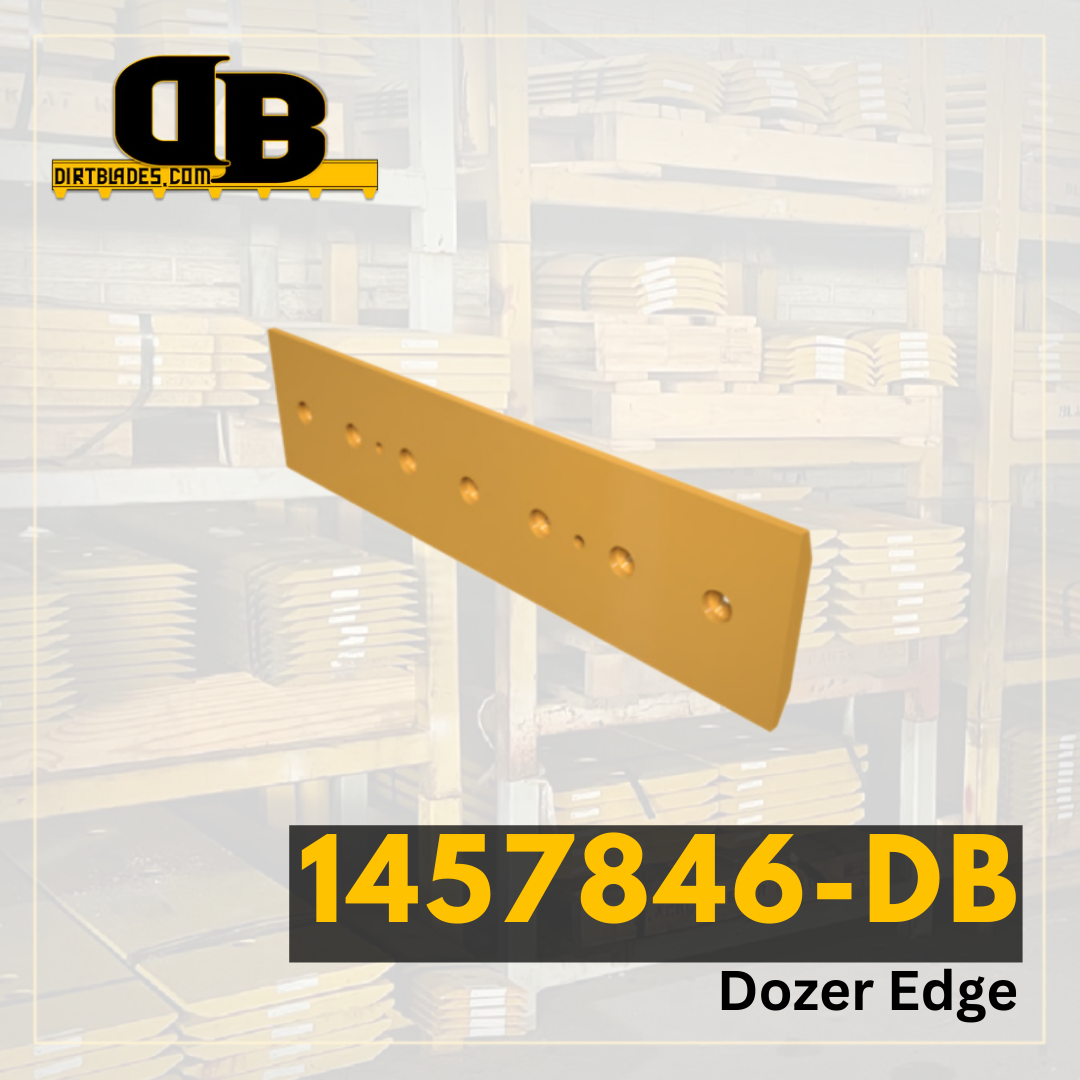

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | D7 |
|---|---|
| Series Number | H R XR |
| Configuration | Straight LGP |
| Serial Number | 2RP 8RH 5SP 9KP J4L CDN |
| Blade Position | Heavy Duty 11" Center |
| Blade Thickness | 1.375 |
| Blade Width | 11 |
| Blade Length | 43.625 |
| Hole Quantity | 7 |
| Bolt Diameter | 0.875 |
| First Hole Distance From End in Inches | 3.8 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 7 |
| Bolt Length for First Row of Holes | 2.75 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
