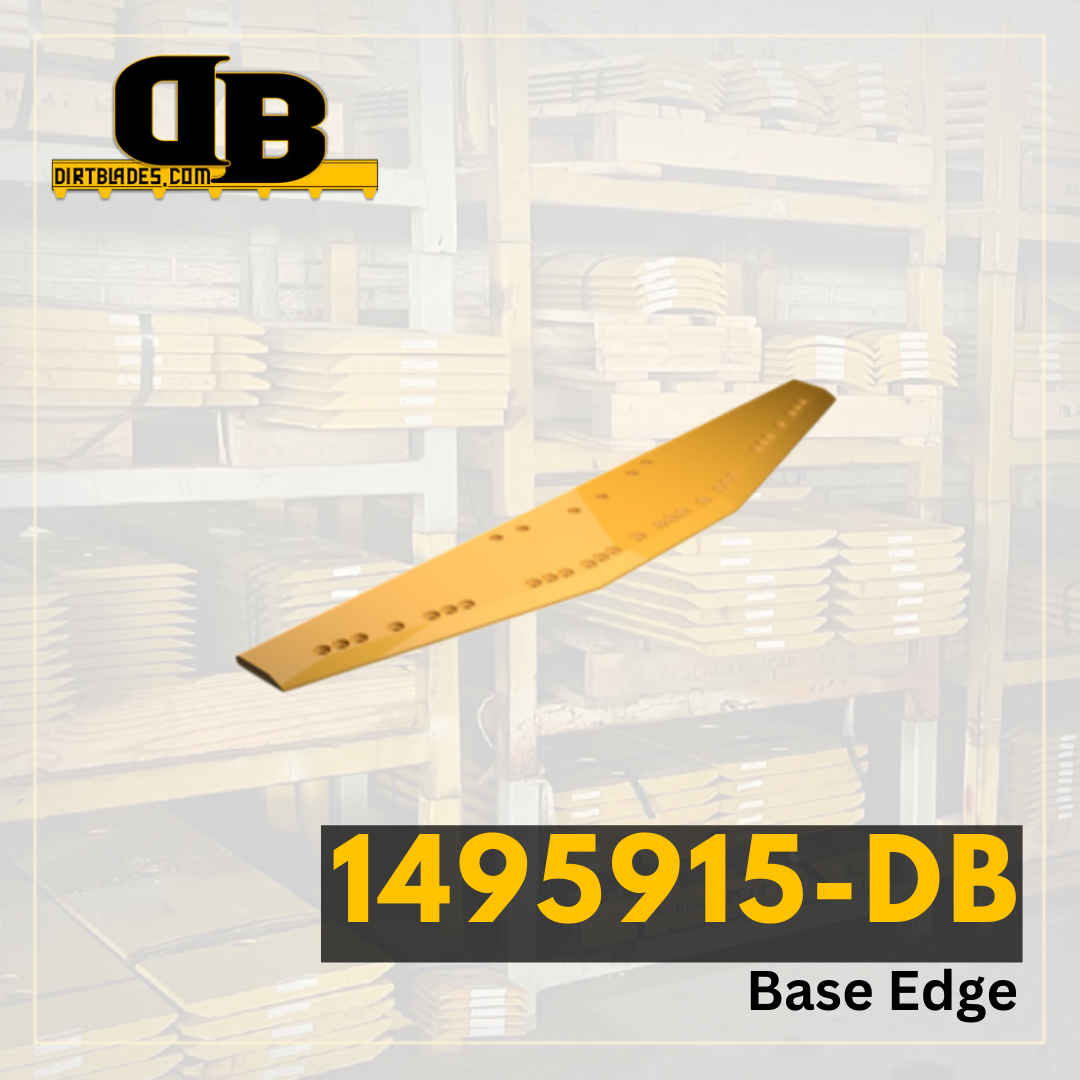

2" X 27.559" X 156" BASE EDGE
Model Number | 988 |
---|---|
Series Number | G H |
Configuration | Spade Nose Rock |
Serial Number | 2462755 2788081 3079491 3079511 2673691 2788121 |
Blade Position | Spade Nose Base Edge |
Blade Thickness | 2 |
Blade Width | 27.559 |
Blade Length | 156 |
Hole Quantity | 34 |
Bolt Diameter | 1.438 |
First Hole Distance From End in Inches | 9.69 |
Second Hole Distance From First Hole in Inches | 3.35 |
Third Hole Distance From Second Hole in Inches | 3.35 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 5.9 |
Second Set of Holes Second Hole Distance From First Hole | 11.78 |
Second Set of Holes Third Hole Distance From Second Hole | 8.04 |
