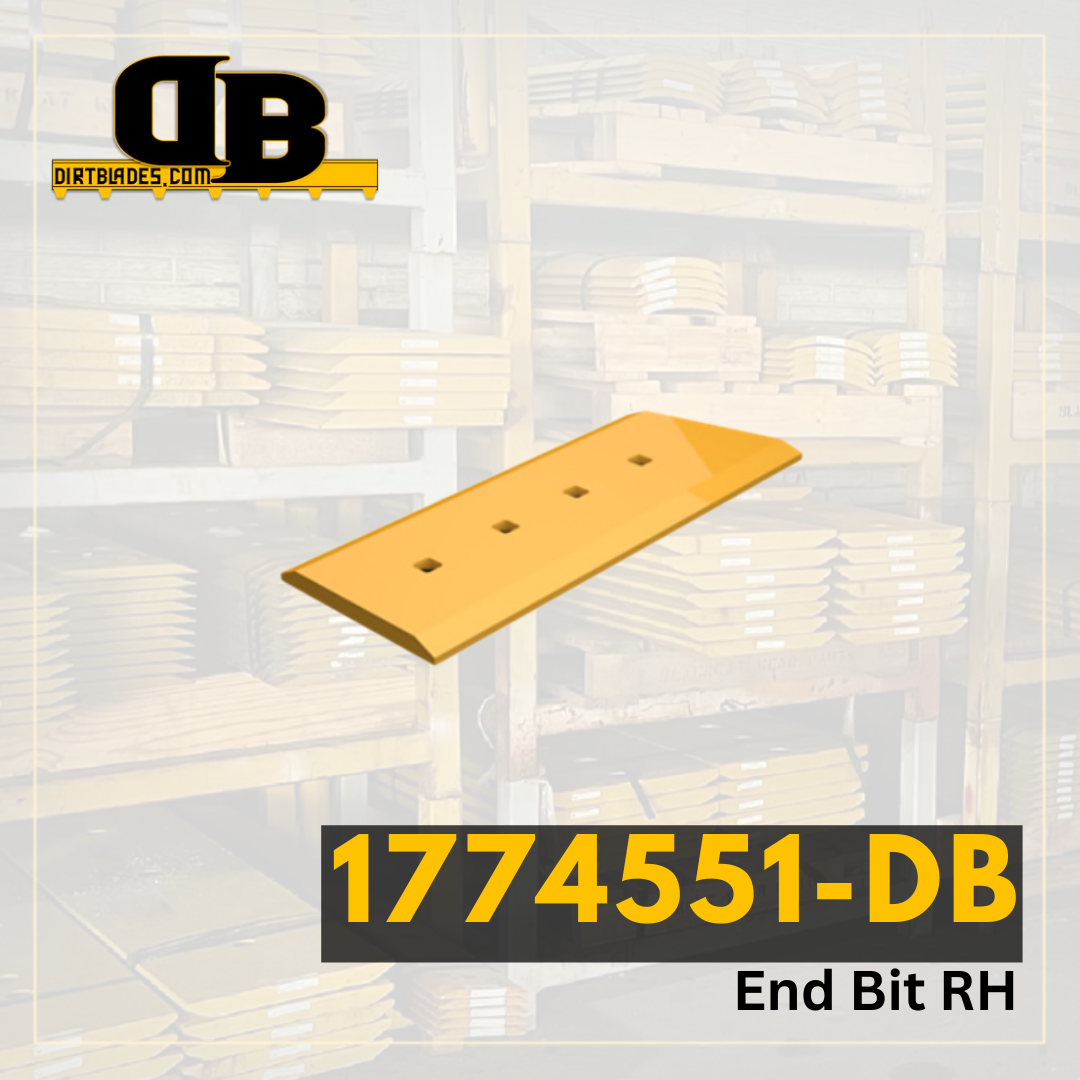

.75" X 8" X 21.22" RH LEVEL END BIT
Model Number | D6 |
---|---|
Series Number | R |
Configuration | FOLDABLE Power Angle LGP |
Serial Number | F6W F6Y |
Blade Position | Level Cut End Bit RH |
Blade Thickness | 0.75 |
Blade Width | 8 |
Blade Length | 21.22 |
Hole Quantity | 4 |
Bolt Diameter | 0.75 |
First Hole Distance From End in Inches | 3.425 |
Second Hole Distance From First Hole in Inches | 3.937 |
Third Hole Distance From Second Hole in Inches | 3.937 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
