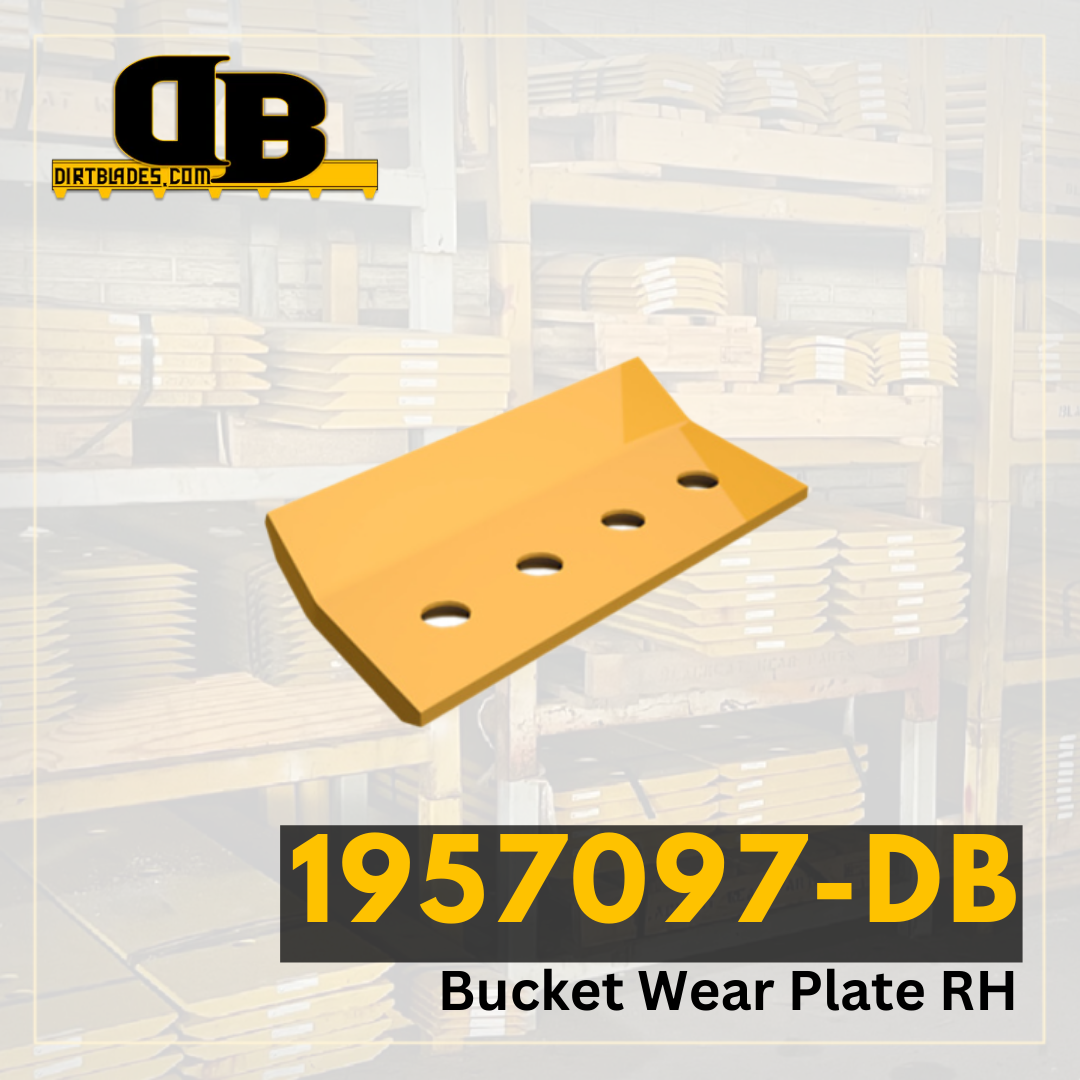

1957097-DB | Bucket Wear Plate RH
Regular price
$128.39
Couldn't load pickup availability
Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | 988 |
|---|---|
| Series Number | G |
| Configuration | Spade Nose Rock |
| Serial Number | 1751451 |
| Blade Position | HD Top Plate RH |
| Blade Thickness | 1 |
| Blade Width | 10 |
| Blade Length | 20.449 |
| Hole Quantity | 4 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 4.906 |
| Second Hole Distance From First Hole in Inches | 3.937 |
| Third Hole Distance From Second Hole in Inches | 3.937 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
