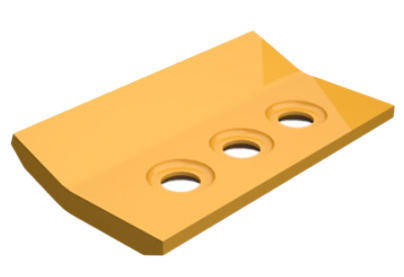

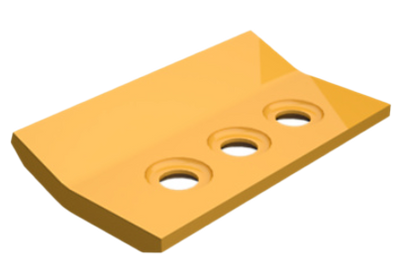

1957180-DB | Bucket Wear Plate

SKU: 1957180
Regular price $143.50

Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.

Model Number 980
Series Number G
Configuration Heavy Duty Quarry Straight
Serial Number 1357113 - 5.75YD BUCKET
Blade Position HD Top Plate Center
Blade Thickness 1
Blade Width 8
Blade Length 13.465
Hole Quantity 3
Bolt Diameter 1.25
First Hole Distance From End in Inches 3.404
Second Hole Distance From First Hole in Inches 3.346
Third Hole Distance From Second Hole in Inches 3.346
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
