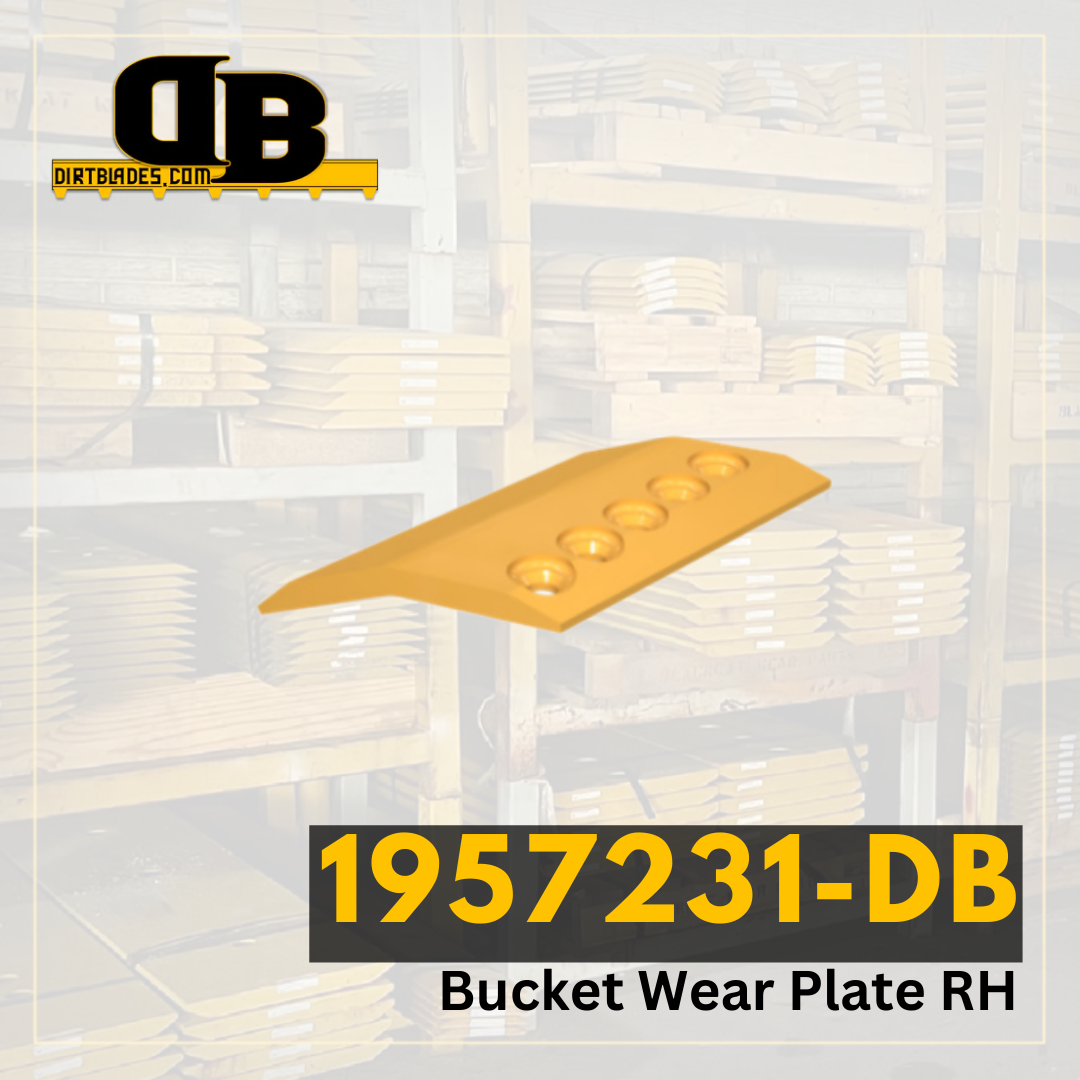

1957231-DB | Bucket Wear Plate RH
Regular price
$533.82
Couldn't load pickup availability
Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
Model Number | 994 |
---|---|
Series Number | D F H |
Configuration | Spade Nose Rock |
Serial Number | 1212360 1212361 1442844 2573683 2573685 2573687 2929451 2673581 2658292 2573689 2573687 |
Blade Position | Top Plate for Half Arrow RH |
Blade Thickness | 1.5 |
Blade Width | 13.5 |
Blade Length | 17.101 |
Hole Quantity | 5 |
Bolt Diameter | 1.25 |
First Hole Distance From End in Inches | 2.072 |
Second Hole Distance From First Hole in Inches | 3.346 |
Third Hole Distance From Second Hole in Inches | 3.346 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
