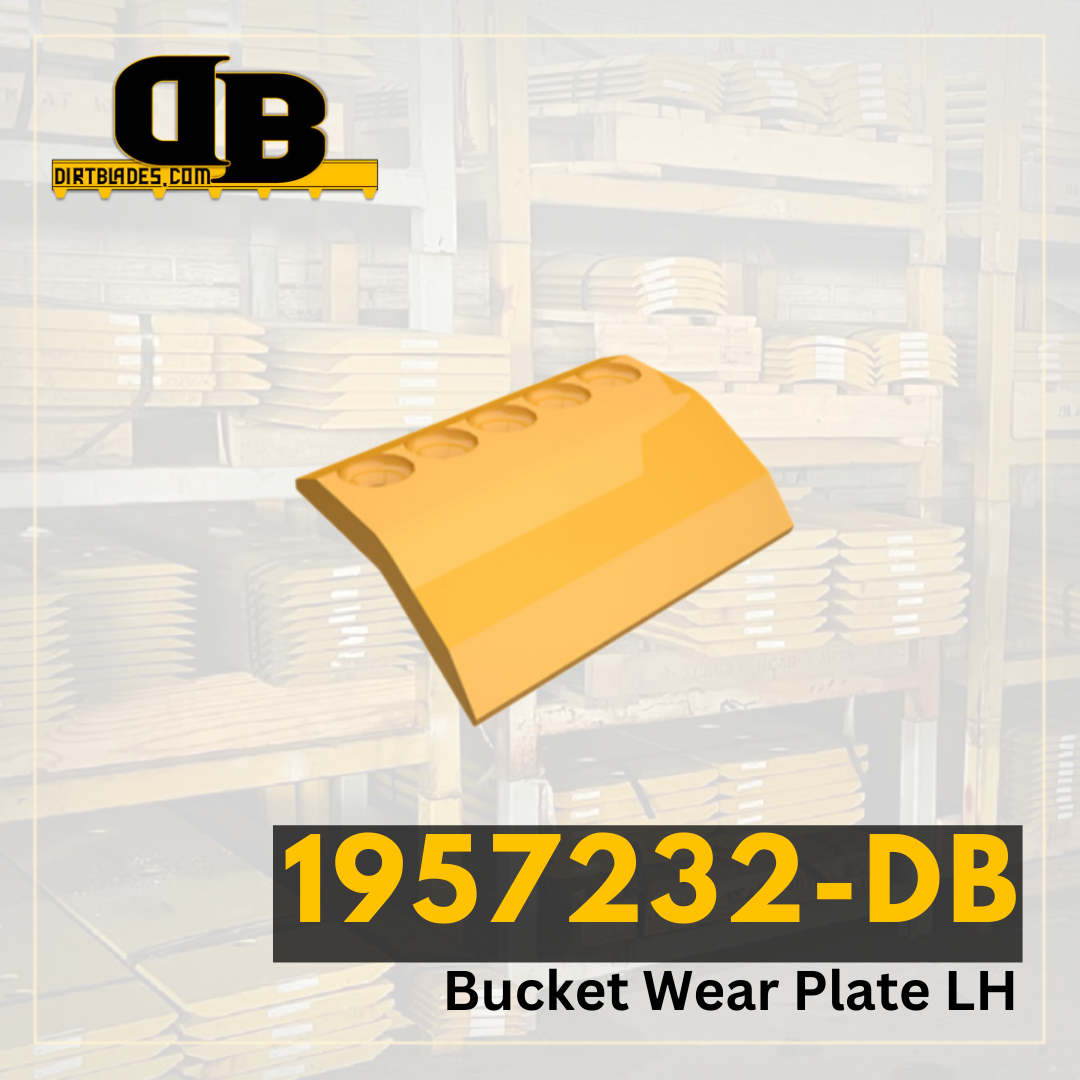

1957232-DB | Bucket Wear Plate LH
Regular price
$533.82
Couldn't load pickup availability
Top Mounted Wear Plates, or Top Covers, complement the half arrows to fully protect the base edge.
| Model Number | 994 |
|---|---|
| Series Number | D F H |
| Configuration | Spade Nose Rock |
| Serial Number | 1212360 1212361 1442844 2573683 2573685 2573687 2929451 2673581 2658292 2573689 2573687 |
| Blade Position | Top Plate for Half Arrow LH |
| Blade Thickness | 1.5 |
| Blade Width | 13.5 |
| Blade Length | 17.101 |
| Hole Quantity | 5 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 2.072 |
| Second Hole Distance From First Hole in Inches | 3.346 |
| Third Hole Distance From Second Hole in Inches | 3.346 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
