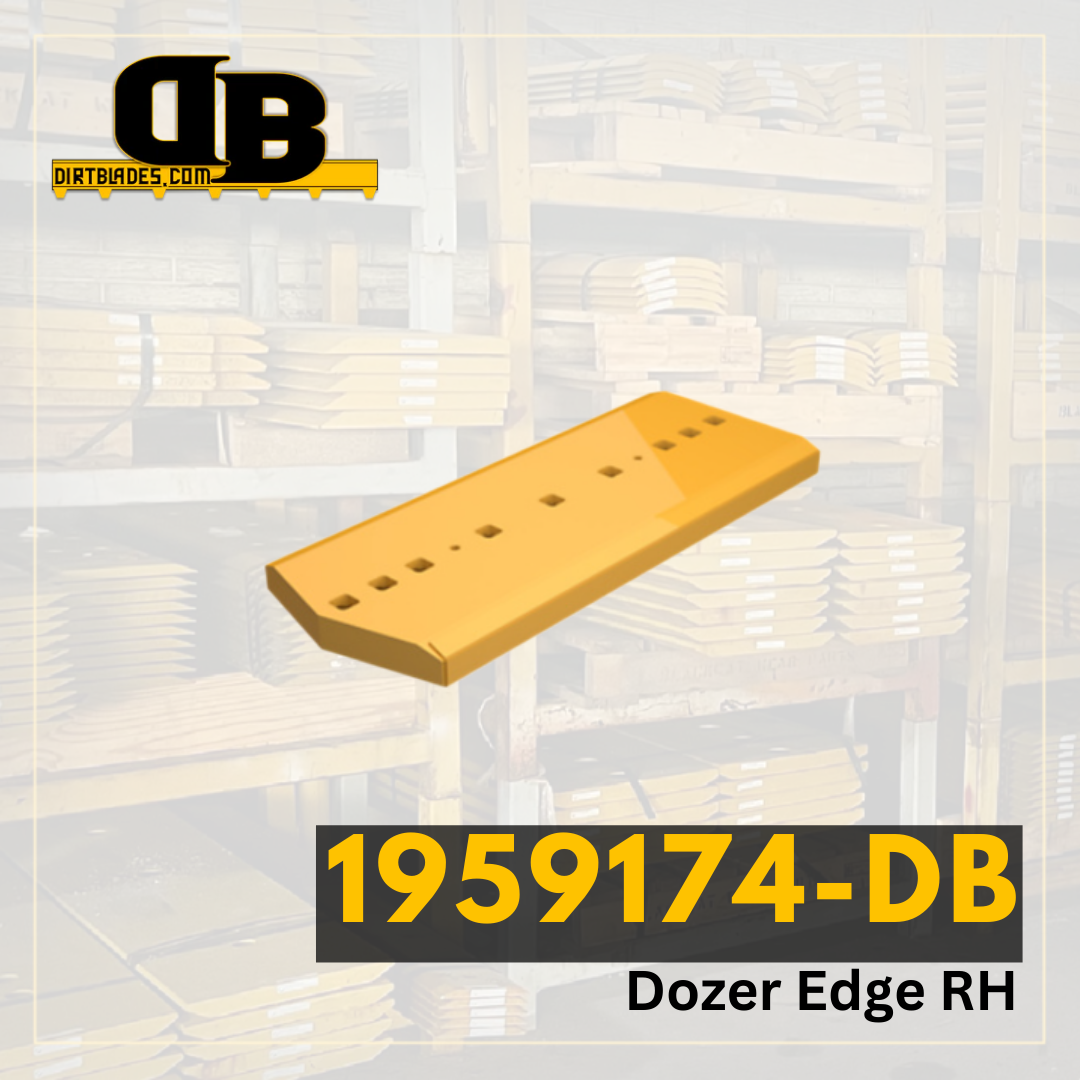

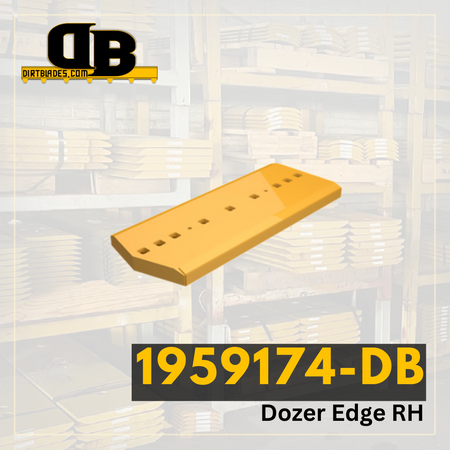

1959174-DB | Dozer Edge RH

SKU: 1959174
Regular price $1,385.59

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D11
Series Number N R T
Configuration Full-U
Serial Number 4CB 5TB 9MH 9ZH 4YP 8RP LWP
Blade Position Carbide Impreg End RH
Blade Thickness 2.375
Blade Width 16
Blade Length 40.125
Hole Quantity 9
Bolt Diameter 1.25
First Hole Distance From End in Inches 1.875
Second Hole Distance From First Hole in Inches 3
Third Hole Distance From Second Hole in Inches 3
Bolt Quantity for First Row of Holes 9
Bolt Length for First Row of Holes 4.125
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
