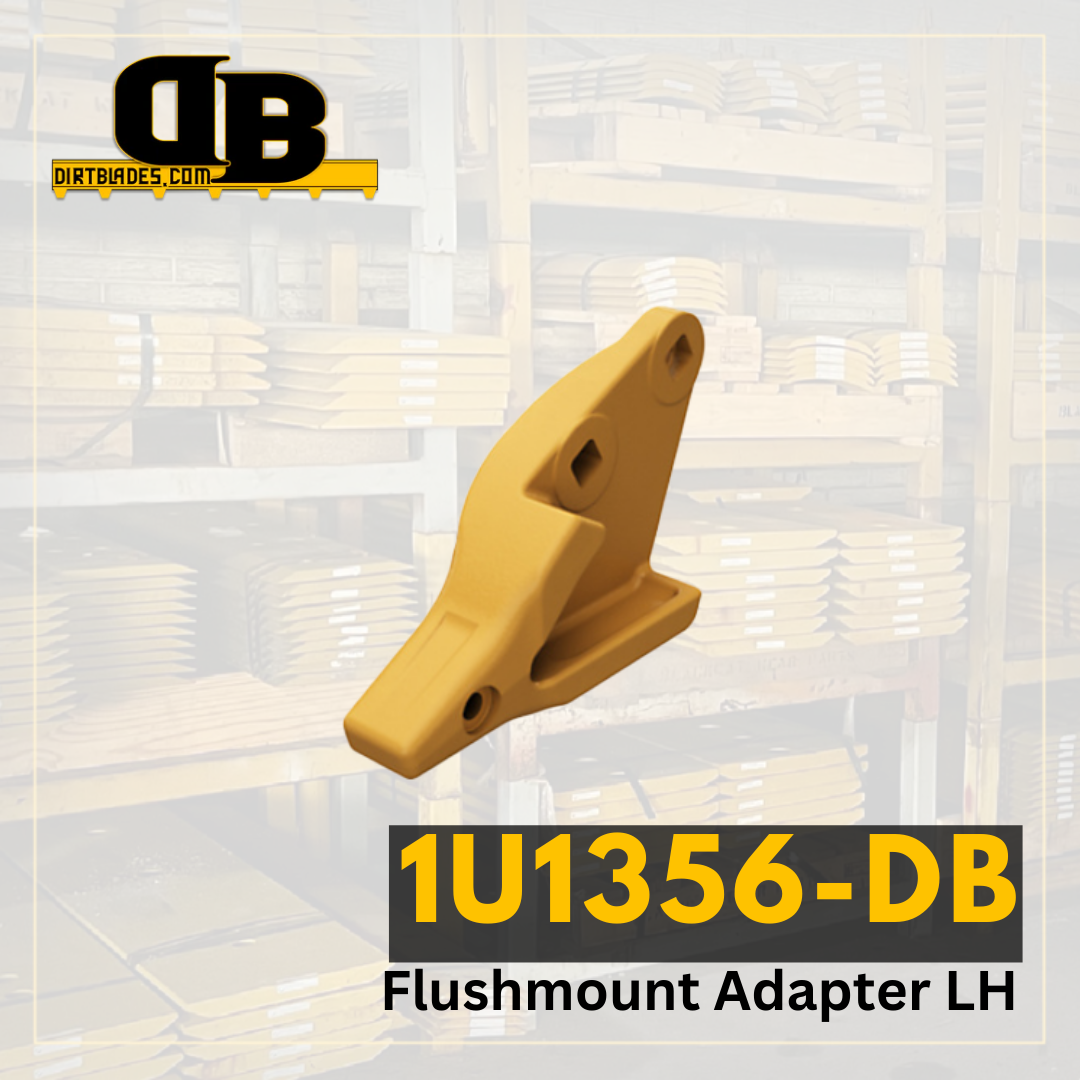

Cast from steel with properties that maintain hardness for long wear life, our durable adapters make it possible for your machines to deliver the performance you demand. Protect your investment by always choosing quality OEM Ground Engaging Tools.
| Model Number | D6 |
|---|---|
| Series Number | C D E G |
| Configuration | Angle |
| Serial Number | 54U 44E 47G 58G 18H |
| Blade Position | Level Cut End Bit RH |
| Blade Thickness | 1 |
| Blade Width | 8 |
| Blade Length | 16 |
| Hole Quantity | 6 |
| Bolt Diameter | 0.75 |
| First Hole Distance From End in Inches | 2.25 |
| Second Hole Distance From First Hole in Inches | 3.188 |
| Third Hole Distance From Second Hole in Inches | 3.188 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 2.5 |
| Bolt Quantity for Second Row of Holes | 3 |
| Bolt Length for Second Row of Holes | 2.5 |
| Second Set of Holes First Hole Distance From End | 2.25 |
| Second Set of Holes Second Hole Distance From First Hole | 3.938 |
| Second Set of Holes Third Hole Distance From Second Hole | 3.625 |
