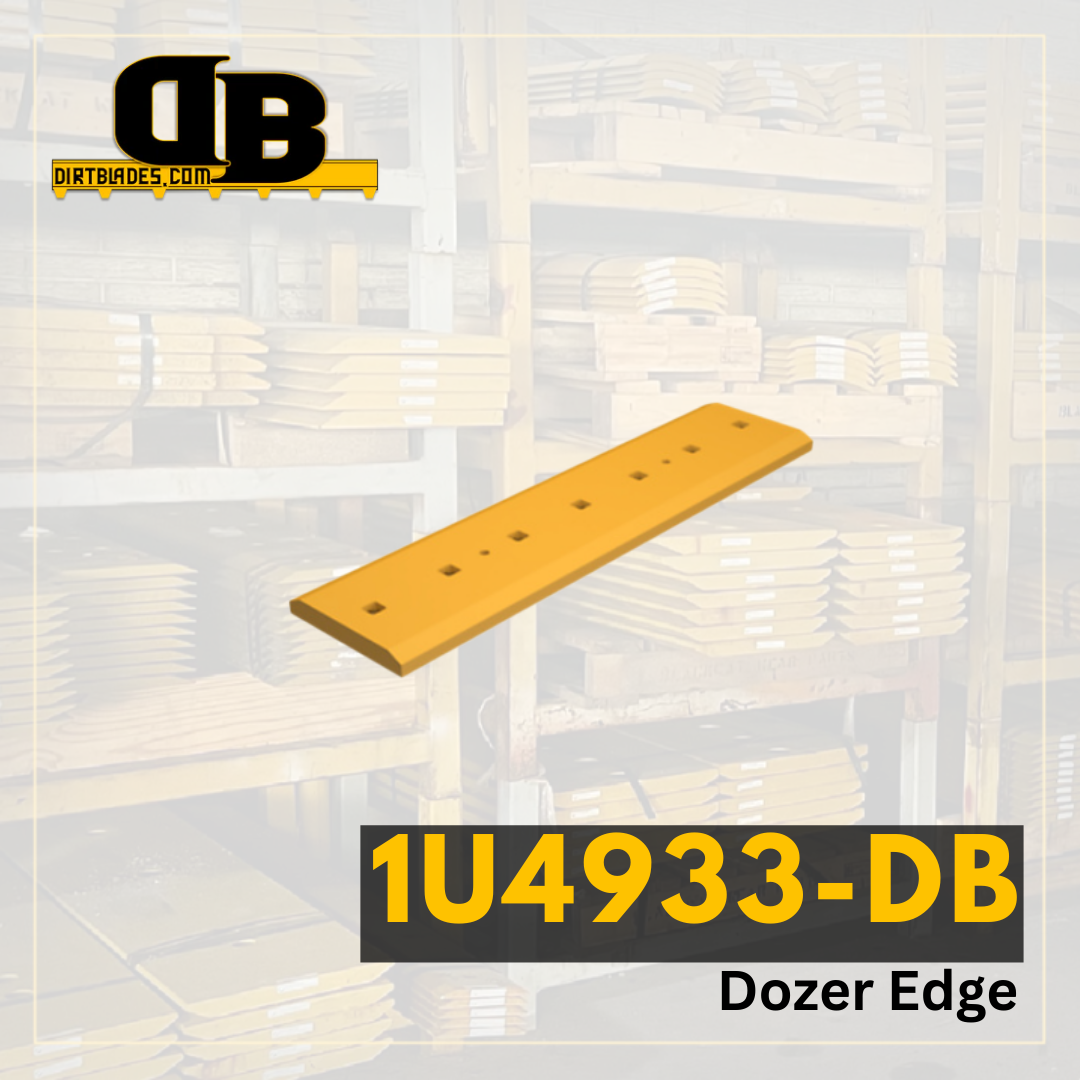

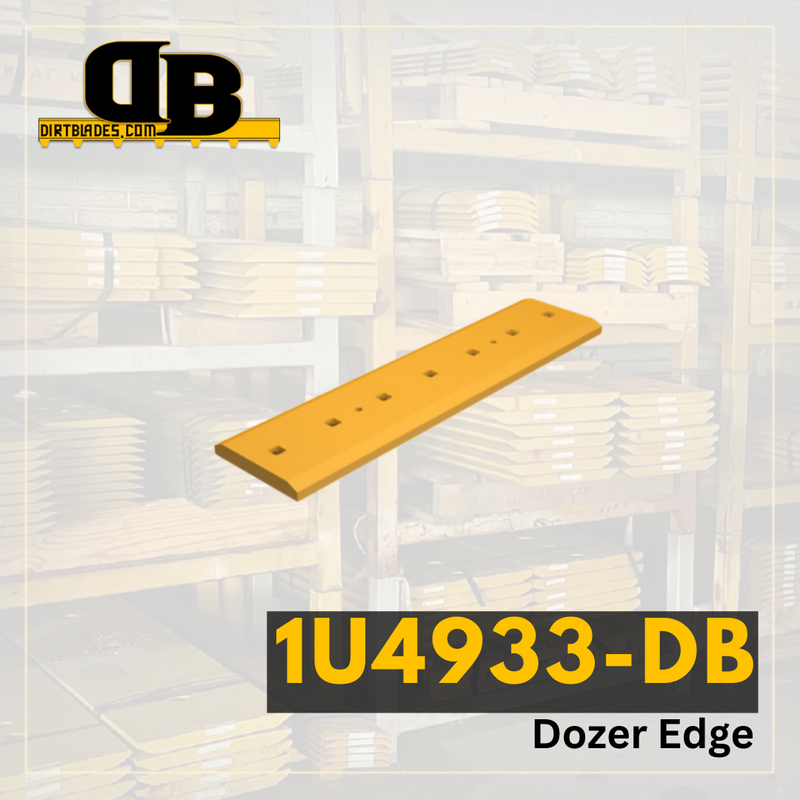

1U4933-DB | Dozer Edge

SKU: 1U4933
Regular price $282.55

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D8
Series Number K
Configuration Semi-U
Serial Number 29V 30W 68V 60V
Blade Position Heavier Center
Blade Thickness 1.375
Blade Width 10
Blade Length 40.75
Hole Quantity 7
Bolt Diameter 1
First Hole Distance From End in Inches 2.375
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 7
Bolt Length for First Row of Holes 3.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
